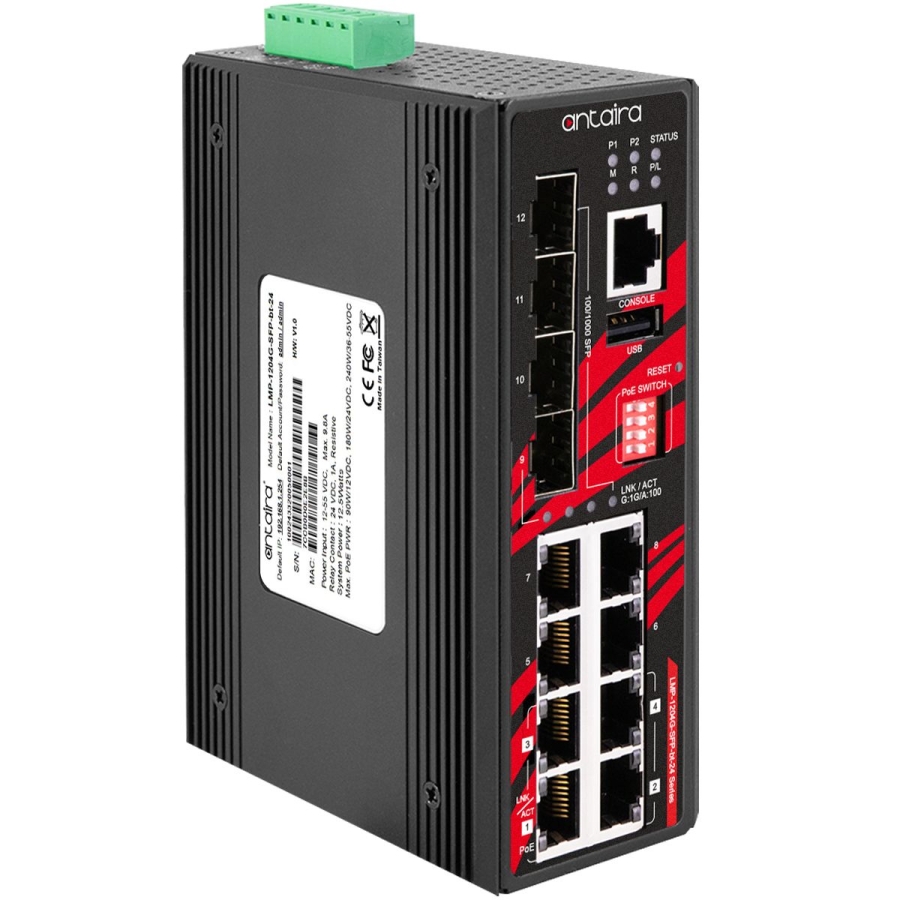

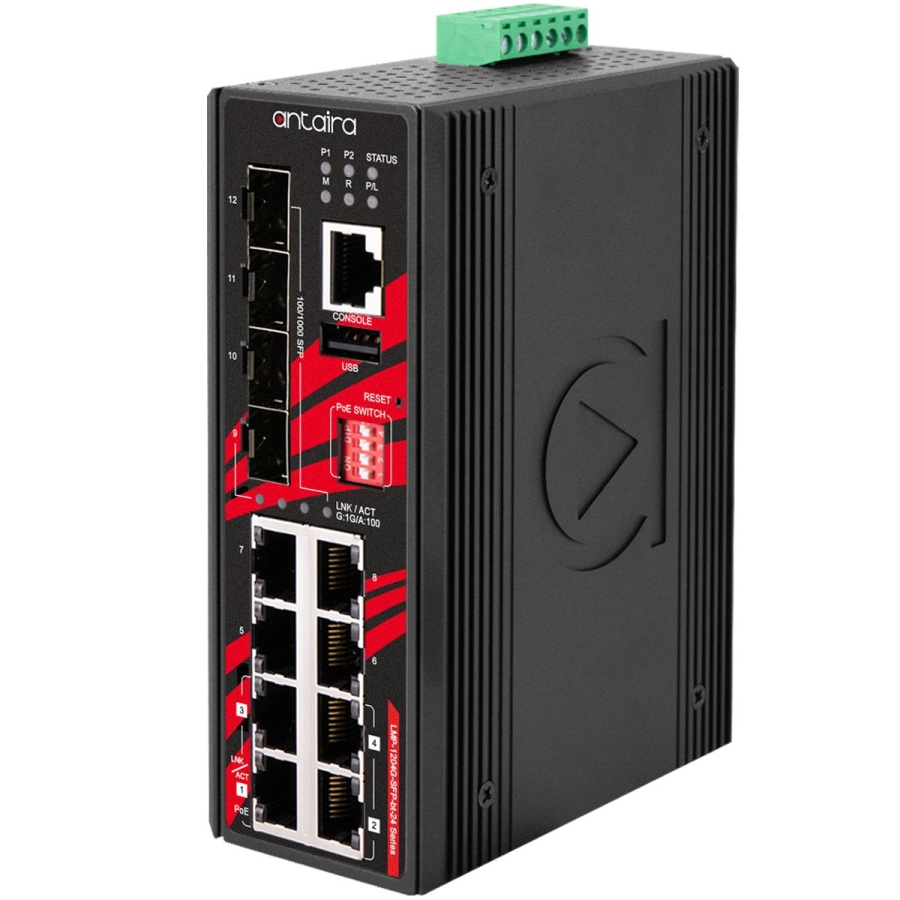

Antaira LMP-1204G-SFP-bt-24 12-Port Industrial PoE++ Managed Ethernet Switch

Antaira LMP-1204G-SFP-bt-24 12-Port Industrial PoE++ Managed Ethernet Switch

LMP-1204G-SFP-bt-24 Price: £POA

  • Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port, 4*10/100/1000Tx IEEE 802.3af/at Compliant with 30W/Port, and 4*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 1024 Groups
  • Supports QoS (IEEE 802.1p) and CoS/ToS
  • Supports IEEE 802.1Q VLAN, SNMP v1/v2c
  • Power Input: 12~55VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – STD: -10°C to 65°C
  • 5-Year Warranty

For further information, please click “Add to Enquiry” or call us on +44 (0) 1785 879050 (UK).



Antaira Technologies’ LMP-1204G-SFP-bt-24 is a 12-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, 4*10/100/1000Tx Ethernet ports with IEEE 802.3af/at support for a maximum of 30W/Port, and 4*100/1000 dual rate SFP slots for fiber connection. The LMP-1204G-SFP-bt-24 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1204G-SFP-bt-24 is IP30 rated and DIN-rail mountable. There are also a standard temperature range (STD: -10°C to 65°C). It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Ordering Info

LMP-1204G-SFP-BT-24 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots; 12~55VDC Power Input
LMP-1204G-SFP-BT-24-T 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, with 4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots; 12~55VDC Power Input; EOT: -40°C to 75°C


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Ambient Relative Humidity 5% to 95%, (non-condensing)
Certifications FCC, CE
Configuration Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions 54 x 142 x 99mm (W x H x D)
EMI FCC Part 15 Subpart B Class ACE EN55032/EN61000-6-4 Class A
EMS CE EN55035/EN61000-6-2 Class AIEC61000-4-2,3,4,5,6,8
Ethernet Port 8*10/100/1000Base-TX (90W/Port for Port 1~4, 30W/Port for Port 5~8), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control IEEE 802.3x for full duplex mode, back pressure for half duplex mode
Free Fall IEC60068-2-32
Green RoHS Compliant
Housing Metal, IP30 protection
IGMP Group 1024
Input Voltage 12-55VDC Redundant Power Inputs(53~55VDC power input for bt PoE PSE)
Jumbo Frame 9.6Kbytes
L2 Switching Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, G.8032 v1/v2
L3 Switching DHCP option82, static routes
LED Indicators System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L)Ethernet ports: Speed/Link/ActivePoE: On-connected to PD devicesSFP: Link/Active
MAC Table Size 8K
Mounting DIN-Rail Mounting, Wall Mounting
Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m)100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)1000Base-TX: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature -10°C to 65°C
Overload Current Protection Present
Packet Buffer 4Mbits
Poe Pin Assignment V-, V-, V+, V+ for pin 1, 2, 3, 6V+, V+, V-, V- for pin 4, 5, 7, 8*Support Modes: Mode A, Mode B, 4-Pair Mode
PoE Power Budget 90W @12VDC180W @24VDC240W @36~55VDC
Power Connection Removable 6-Contact Terminal Block
Power Saving ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues 8
Processing Type Store and Forward
Protocols IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, USB configuration backup/restore, Power lost warning, relay trigger
QoS 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact 24VDC, 1A resistive
Reverse Polarity Protection Present
RS232 Serial Console 1*RS232 in RJ45
SFP Port 4*100/1000 SFP Slots
Shock IEC60068-2-27
Storage Temperature -40°C to 85°C
Switching Architecture Back-Plane (Switching Fabric): 24Gbps
System / Diagnostics Dual Image Protection, PING, PING6
System Power Consumption 12.5W
Transfer Rate 14,880pps for Ethernet Port148,800pps for Fast Ethernet Port1,488,000pps for Gigabit Ethernet Port
Vibration IEC60068-2-6
VLAN Groups 4095
Warranty 5 Years
Weight Unit: 2.53 lbsShipping: 3.33 lbs
