5 Port 10/100TX Industrial Ethernet Switch Unmanaged
5 Port 10/100TX Industrial Ethernet Switch Unmanaged

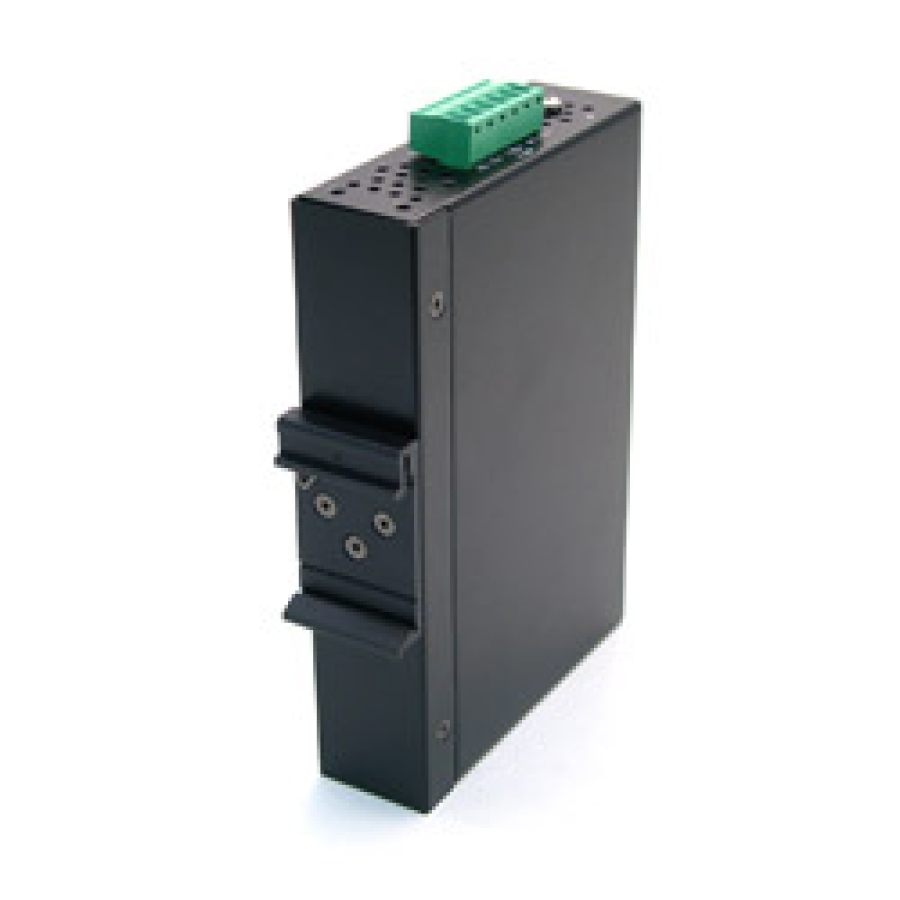

LNX-500A
- Brand: Antaira
- 5 x 10/100TX Ports
- Class 1 Division 2 certified
- Wide DC power input (12 – 48VDC)
- DIN-rail ready
- Size: 30mm x 140mm x 95mm
Details
5-Port 10/100TX Slim Industrial Unmanaged Ethernet Switch from Antaira.
Ordering Info
- LNX-500A – 5 Port 10/100TX Industrial Ethernet Switch Unmanaged
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Back Plane: 1.0Gbps
- Buffer: 512Kbits
- Dimensions: IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches)
- EMI: FCC Class A, CE-EN6100-4-2/3/4/5/6/8/11/12, CE-EN6100-6-2/4
- Ethernet Port: 5 x 10/100TX RJ-45
- Fault Output: 1 Relay Output
- Free Fall: IEC 60068-2-32
- Humidity: 5% ~ 95% non-condensing
- IEEE: IEEE 802.3
- IEEE: 802.3u
- IEEE: 802.3x
- LED Port: Link/Activity, Full Duplex/Collision
- Unit: Power1, Power2, Fault
- Mac Address Table: 1K MAC Address Table
- Method: Store and Forward
- Operating Temperature: -10° ~ 70° C (14° ~ 158° F)
- Power Consumption: 2.93 Watts
- Power Input: 12 ~ 48 VDC
- Power Redundancy: Yes
- Protocols: CSMA/CD
- Safety: UL/cUL Class I, Division 2, CE-EN60950-1
- Shock: IEC 60068-2-27
- Storage Temperature: -40° ~ 85° C
- Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port
- Vibration: IEC 60068-2-6
- Warranty: 5 Years
Warranty & Service Information for Antaira Products (EMEA)
Assured Systems are proud partners of Antaira, offering a 2 year warranty with all Antaira products distributed in the EMEA. Extended warranty options are available upon request.
