Cincoze DS-1300 10th Gen Intel Xeon/Core Industrial Computer with 3x Mini PCIe

Cincoze DS-1300 10th Gen Intel Xeon/Core Industrial Computer with 3x Mini PCIe

DS-1300 Price: £POA

  • 10-core 10th-gen Intel Xeon and Core i9/i7/i5/i3 CPU (max 80 W TDP)
  • 2x GbE LAN and optional 2x 10GbE LAN
  • 2x 2.5″ SATA storage, 3x mSATA sockets, 1x M.2 key M for NVMe SSD
  • 3x full-size Mini PCIe sockets, 2x SIM card slots
  • Optional CMI modules for I/O expansion
  • Optional CFM modules for ignition sensing & PoE
  • Wide operating temperature -40°C to 70°C
  • MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only)

For further information, please click “Add to Enquiry” or call us on +44 (0) 1785 879050 (UK).

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.





The DS-1300 is a powerful embedded computer and brings unrivalled performance. It has versatile functionalities and rich industrial I/O. Equipped with Cincoze’s CMI, CFM, MEC modular expansion, customization for additional I/O or other functionality to fulfill different applications couldn’t be easier. The DS-1300 meets the requirements of industrial environments and is certified with industry standards. It delivers ultimate and reliable performance for factory automation, industrial automation and rolling stock applications.



10-Core, Up To 80W CPU

The DS-1300 series, powered by a workstation-grade 10th-gen Intel Xeon or Core i9/i7/i5/i3 CPU with up to 10-core architecture, provides superior processing performance. The DS-1300 supports Xeon CPU up to 80 W TDP. It incorporates DDR4 2933/2666 MHz memory up to 64 GB, delivering unparalleled performance in a rugged, fanless system.

More Powerful & Faster Multiplies Productivity

The DS-1300 series’s 10th-gen CPU brings to 31% better integer multi-tasking for compute-intensive application performance than 9th-gen CPUs*. DDR4 2933 MHz memory further increases speed by 10%**. The processing platform delivers the performance required to consolidate multiple workloads for intelligent devices and applications

* 31% increase for 10th-gen i9-10900E 65W vs 9th-gen i7-9700 65W CPU** 10% increase for 2933 MHz of DS-1300 vs 2666 MHz of DS-1200.

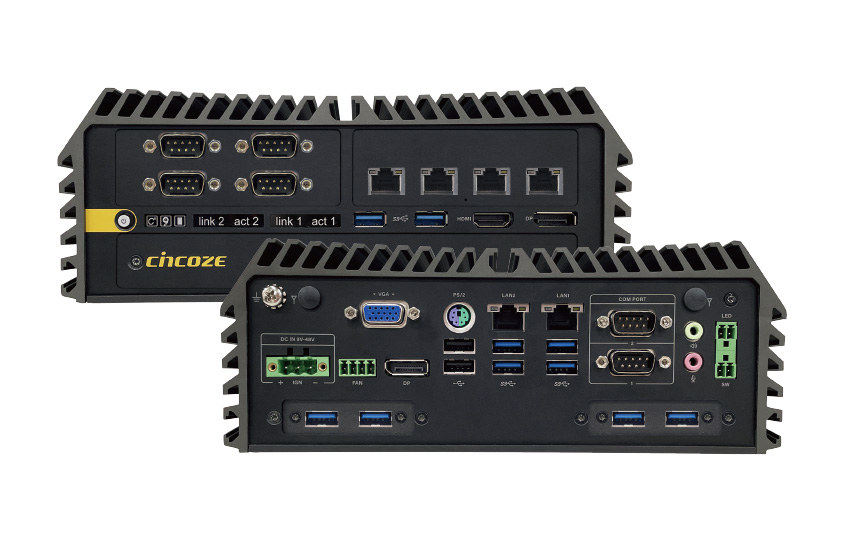

Industrial I/O and Modular Expansion

The DS-1300 series offers a vast array of industrial-focused I/O including up to 2x GbE LAN, 6x USB 3.2, and 2x USB 2.0, 2x RS232/422/485, 2x 2.5″ SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM card slots, 3x full-size Mini-PCIe and triple independent displays (DisplayPort, HDMI, VGA). It also features modular expansion through Cincoze’s CMI/CFM modules, adding additional I/O or other functionality such as high-speed 10GbE LAN, PoE, and ignition sensing.

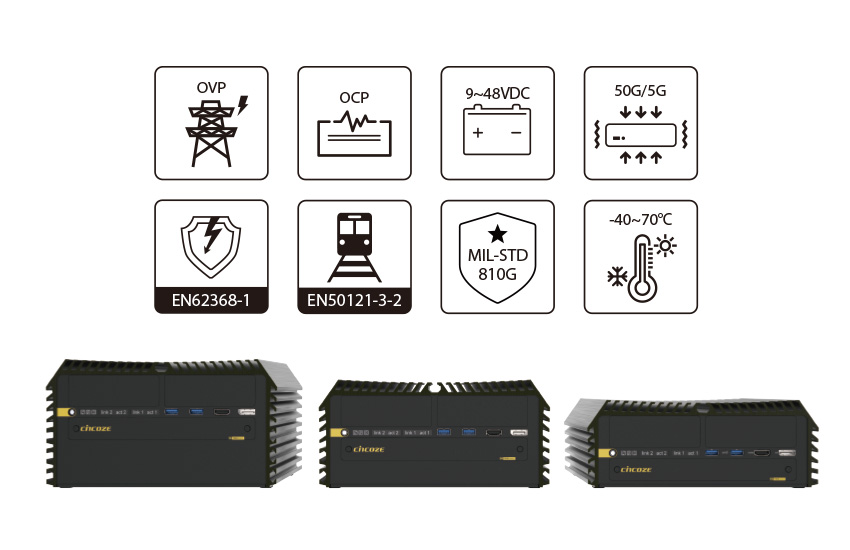

Rugged Reliability Against Rigorous Environments

The DS-1300 series’s fanless and cableless industrial-grade design can withstand rigorous environments. Its unique thermal design supports an extended operating temperature range from -40°C to 70°C. It has also passed stringent industry standards, including MIL-STD-810G military standard and EN50155 (EN 50121-3-2 only) for rolling stock environments.

Ordering Info

Package Checklist
√ DS-1300 Embedded System x1 √ Heatsink Pack x1
√ Utility DVD Driver x1 √ Screw Pack x1
√ Wall Mount Kit x1 √ Power Terminal Block Connector x1
√ Remote Function Terminal Block Connector x 2 √ Fan Terminal Block Connector x 1
Optional I/O Modules
Model No. Description
CMI-LAN01-R12/ UB1012 CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout
CMI-M12LAN01-R12 /UB1010 CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout
CMI-10GLAN03-R10/UB1028 CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout
CMI-COM02/UB1004 CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-ICOM01/UB1004 CMI Module with 4x Isolated RS232 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout
CMI-DIO02/UB1018 CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout
MEC-COM-M212-DB9 /UB0303 Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout
MEC-USB-M102-15 /UB0314 Mini-PCIe Module with 2x USB 3.0 Ports, 1x 15cm cable / 1xUniversal Bracket with 2x USB Cutout
MEC-LAN-M002-30 /UB0311 Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout
Optional Function Modules
Model No. Description
CFM-PoE03 CFM Module with PoE Function, Individual Port 25.5W
CFM-IGN101 CFM Module with Power Ignition Sensing Function, 12V/24V Selectable
Optional Accessories
Model No. Description
FAN-EX101 External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan
GST120A24-CIN Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Processor Intel Xeon Series Processor ( 80W / 35W ): • Intel Xeon W-1270E 8 Cores Up to 4.8 GHz, TDP 80W • Intel Xeon W-1250E 6 Cores Up to 4.7 GHz, TDP 80W • Intel Xeon W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel Xeon W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W • Intel Xeon W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W Intel Core Series Processor ( 65W / 35W ): • Intel Core i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W • Intel Core i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W • Intel Core i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W • Intel Core i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W • Intel Core i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel Core i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W • Intel Core i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W • Intel Core i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W Intel Pentium Series Processor ( 58W / 35W ): • Intel Pentium G6400E 2 Cores Up to 3.8 GHz, TDP 58W • Intel Pentium G6400TE 2 Cores Up to 3.2 GHz, TDP 35W • Intel Celeron Series Processor ( 58W / 35W ): • Intel Celeron G5900E 2 Cores Up to 3.2 GHz, TDP 58W • Intel Celeron G5900TE 2 Cores Up to 3.0 GHz, TDP 35W
Chipset Intel W480E Chipset
Memory • 2x DDR4 SO-DIMM Socket, Support Up to 64GB ( Un-buffered and non-ECC) • Xeon / i9 / i7 Processor Supports Up to 2933MHz • i5 / i3 Processor Supports Up to 2666 MHz • Pentium / Celeron Processor Supports Up to 2400MHz
Graphics Engine Integrated Intel® UHD-630 Graphics
Maximum Display Output Supports Triple Independent Display
HDMI 1 x HDMI Connector (4096 x 2160@30Hz)
DP 2 x DisplayPort Connector (4096 x 2340@60Hz)
VGA 1 x VGA Connector (1920 x 1200 @60Hz)
Audio Codec Realtek ALC888, High Definition Audio
Line-out 1 x Line-out, Phone Jack 3.5mm
Mic-in 1 x Mic-in, Phone Jack 3.5mm
LAN • 2 x GbE LAN, RJ45 – GbE1: Intel I219 – GbE2: Intel I210
COM 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9
USB • 2 x 10Gbps USB 3.2 Gen2, Type A • 4 x 5Gbps USB 3.2 Gen1, Type A • 2 x 480Mbps USB 2.0, Type A
PS/2 1 x PS/2, 6 Pin Mini-DIN Female Connector
SSD/HDD • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 )
mSATA 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
M.2 SSD 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 )
RAID Support RAID 0/1/5/10
Mini PCI Express 3 x Full-size Mini-PCIe Socket
SIM Socket 2 x SIM Socket
CMI (Combined Multiple I/O) Interface • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion
CFM (Control Function Module) Interface 1 x CFM IGN Interface for optional CFM-IGN Module Expansion
External FAN Connector 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Power Ignition Sensing Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Clear CMOS Switch 1 x Clear CMOS Switch
Rest Button 1 x Rest Button
Instant Reboot Support 0.2sec Instant Reboot Technology
Watchdog Timer Software Programmable Supports 256 Levels System Reset
Power Button 1 x ATX Power On/Off Button
Power Mode Switch 1 x AT/ATX Mode Switch
Power Input 9 – 48VDC, 3-pin Terminal Block
Remote Power On/Off 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED 1 x Remote Power LED, 2-pin Terminal Block
Total Power Budget 180W
Dimension ( W x D x H ) 227 x 261 x 88 mm
Weight Information 4.5 KG
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall Mount
Physical Design • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design
Reverse Power Input Protection Yes
Over Voltage Protection • Protection Range: 51~58V •​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection 15A
Surge Protection 3.84 kV (impedance 12 ohm 1.2/50us waveform)
CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF • 371,393 Hours – Database: Telcordia SR-332 Issue 3, Method 1, Case 3
Windows Windows 10
Linux Supports by project
Operating Temperature • 35W TDP Processor: -40°C to 70°C • 58W – 65W TDP Processor: -40~50°C (With External Fan Kit) • 80W TDP Processor: -40~40°C (With External Fan Kit)* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock MIL-STD-810G
Vibration MIL-STD-810G
EMC CE, FCC, ICES-003 Class A, EN50121-3-2 (Railway)
Safety IEC/EN 62368-1
Processor Type Intel Celeron, Intel Core, Intel Pentium, Intel Xeon
Memory Capacity Up to 64GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-232/422/485
USB Ports 2x USB 2.0, 6x USB 3.2
Ethernet Ports (LAN) 2x 1G
Power Over Ethernet (PoE) PoE Ports
Wireless Cellular, Wi-Fi
Video Ports 1x VGA, 2x DisplayPort
Audio Yes
Storage Type 1x M.2 PCIe, 2x 2.5", 3x mSATA
Expansion Type 3x Mini PCI Express
Input Voltage 9-48 VDC
Mounting Options Wall-mount
Operating Temperature -40°C to 40°C, -40°C to 50°C, -40°C to 70°C
Market Certifications CE/FCC, MIL-STD
OS Support Windows 10
