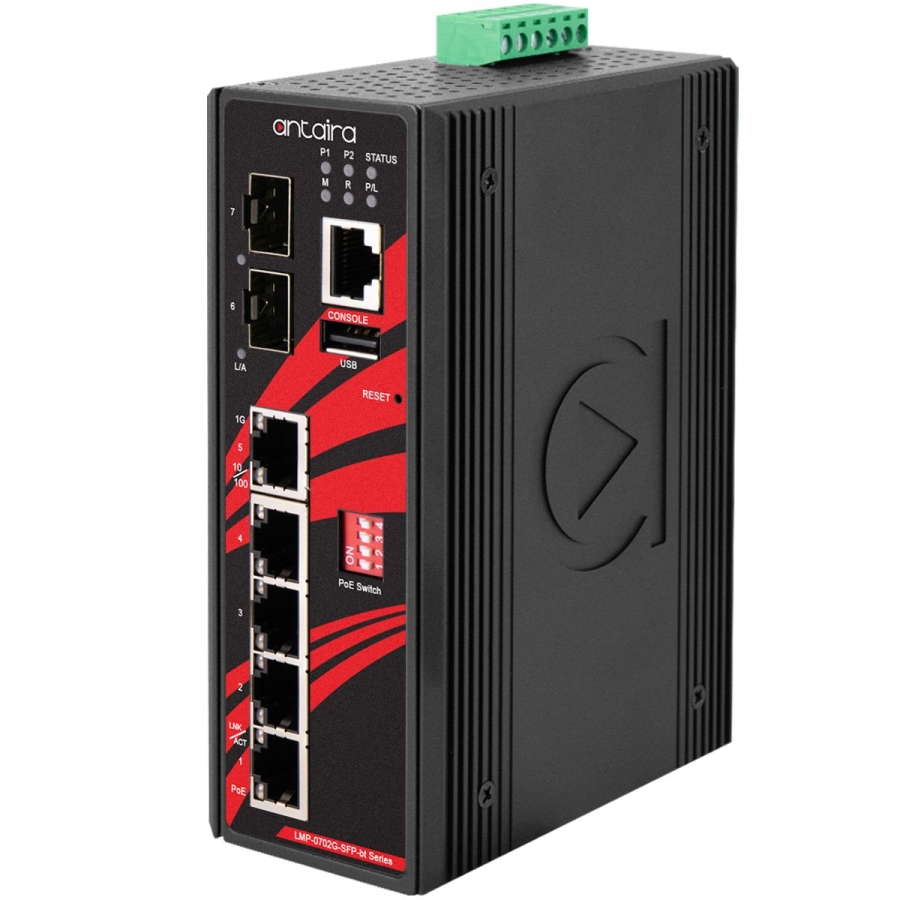

Antaira LMP-0702G-SFP-bt-T-V2 7-Port Industrial Managed Ethernet Switch w/ EOT

Antaira LMP-0702G-SFP-bt-T-V2 7-Port Industrial Managed Ethernet Switch w/ EOT

LMP-0702G-SFP-bt-T-V2 Price: £POA

  • Supports 4*10/100/1000Tx IEEE 802.3at/af/bt Compliant with 90W/Port, 1*10/100/1000Tx RJ45 Port, and 2*100/1000 SFP Slots
  • Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS v1/v2 (Recovery Time <50ms)
  • Configuration: Web Console, Telnet, CLI Command
  • Supports IGMP v1/v2/v3, up to 1024 Groups
  • Supports QoS (IEEE802.1p) and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
  • Power Input: 48~55VDC in 6-Pin Terminal Block
  • Reverse Polarity Protection
  • IP30 Protection
  • DIN-Rail or Wall Mountable
  • Operating Temperature Range – EoT: -40°C to 75°C
  • 5-Year Warranty

For further information, please click “Add to Enquiry” or call us on +44 (0) 1785 879050 (UK).



Antaira Technologies’ LMP-0702G-SFP-bt-T-V2 is a 7-port industrial Gigabit PoE++ managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports that support IEEE802.3at/af/bt for a maximum of 30W/port, 1*10/100/1000Tx Gigabit Ethernet port, and 2*100/1000 dual rate SFP slots for fiber connection. The LMP-0702G-SFP-bt-T-V2 is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-0702G-SFP-bt-T-V2 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment.

Ordering Info

LMP-0702G-SFP-BT-V2 7-Port Industrial Gigabit PoE bt Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx (90W/port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots
LMP-0702G-SFP-BT-T-V2 7-Port Industrial Gigabit PoE bt Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx (90W/port), 1*10/100/1000Tx, and 2*100/1000 SFP Slots; EOT: -40°C ~ 75°C


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


Ambient Relative Humidity 5% to 95%, (non-condensing)
Certifications FCC, CE
Configuration Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3
Dimensions 54 x 142 x 99 mm (W x H x D)
EMI FCC Part 15 Subpart B Class A,CE EN55032/EN61000-6-4 Class A
EMS CE EN55035/EN61000-6-2 Class A,IEC61000-4-2,3,4,5,6,8
Ethernet Port 5*10/100/1000Base-TX (90W/Port for Port 1~4 only), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
Flow Control IEEE 802.3x flow control, back pressure flow control
Free Fall IEC60068-2-32
Green RoHS Compliant
Housing Metal, IP30 protection
IGMP Group 1024
Input Voltage 48~55VDC Redundant Input(53~55VDC power input for BT PoE PSE)
Jumbo Frame 9.6Kbytes
L2 Switching Port/MAC/Protocol/IP Subnet-based VLAN, VLAN trunking, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP v1/v2/v3 snooping, MLD snooping, IGMP filtering, IPMC throttling / filtering leave proxy, DHCP snooping, ARP, MEP, G.8032 v1/v2
L3 Switching DHCP option82, static routes
LED Indicators System: Power 1, Power 2, Master, Ring, Status, and PoE LoadEthernet Ports: Speed/Link/ActivePoE: On-connected to PD devicesSFP: Link/Active
MAC Table Size 8K
Memory Buffer 4Mbits
Mounting DIN-Rail mounting, Wall mounting
Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m)100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m)1000Base-T: 4-pair UTP/STP Cat.5/5E cable; EIA/TIA-568 100-ohm (100m)
Network Redundancy STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
Operating Temperature EOT: -40°C ~ 75°C
Overload Current Protection Present
Poe Pin Assignment V-, V-, V+, V+ for pin 1, 2, 3, 6V+, V+, V-, V- for pin 4, 5, 7, 8*Support Modes: Mode A, Mode B, 4-Pair Mode
PoE Power Budget 240W @48~55VDC
Power Connection 1 removable 6-contact terminal block
Power Saving ActiPHY, PerfectReach, IEEE 802.3az EEE power management
Priority Queues 8
Processing Type Store and Forward
Protocols IPv4/IPv6, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone / Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, Power Lost Warning, Relay Trigger
QoS 802.1p Queueing, Input priority mapping, Storm control for Unicast/Multicast/Broadcast, Port/Queue/ACL policer, Port egress shaper, Queue egress shaper, DiffServ (DSCP), Tag remarking, Scheduler mode
Relay Contact 24VDC, 1A resistive
Reverse Polarity Protection Present
RS232 Serial Console 1*RS232 in RJ45
SFP Port 2*100/1000 SFP Slots
Shock IEC60068-2-27
Storage Temperature -40°C to 85°C
Switching Architecture Back-Plane (Switching Fabric): 14Gbps
System / Diagnostics Dual Image Protection, PING, PING6
System Power Consumption 10.8W
Transfer Rate 14,880pps for Ethernet Port148,800pps for Fast Ethernet Port1,488,000pps for Gigabit Ethernet Port
Vibration IEC60068-2-6
VLAN Groups 4095
Warranty 5 Years
Weight Unit: 2.29 lbsShipping: 3.01 lbs
