MVS900-512-FL

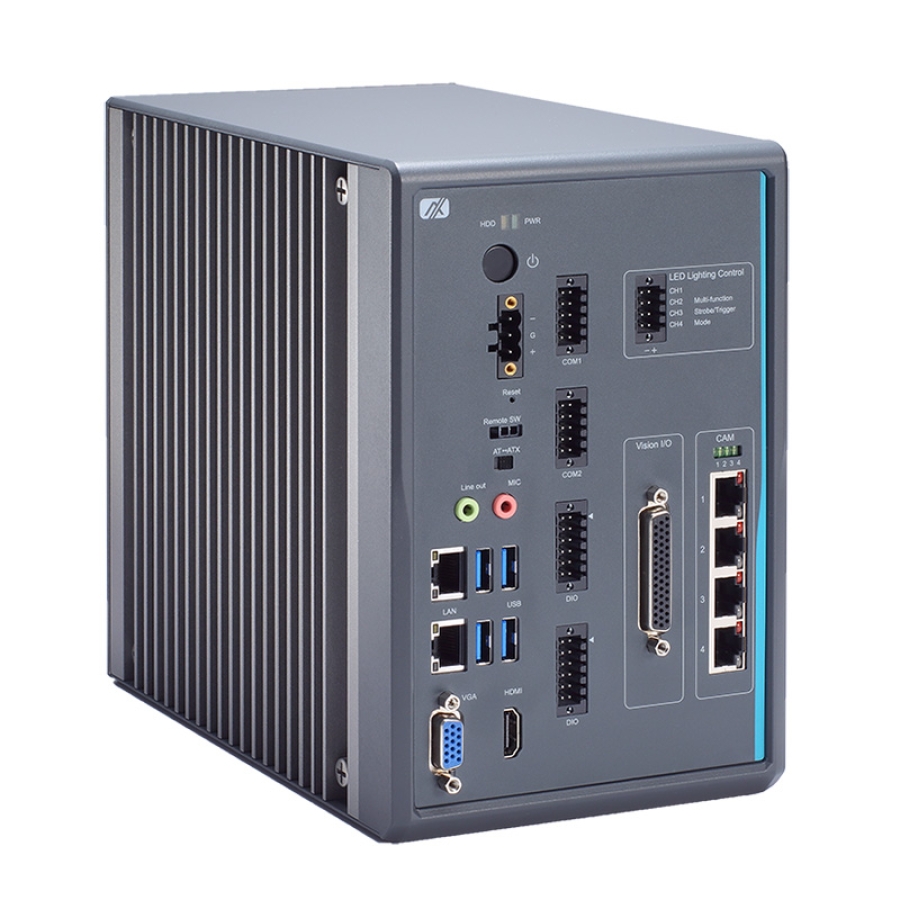

Axiomtek MVS900-512-FL 7th/6th Gen Intel Core i7/i5/i3 & Celeron Fanless System

End of Life

  • Integrated real-time vision I/O
  • 4-CH trigger input
  • 4 trigger output
  • 4-CH LED lighting control
  • 2-CH quadrature encoder input# 16-CH isolated DIO
  • Supports camera interfaces
  • 4 IEEE802.3at GbE LAN ports (PoE)
  • Power input: 24 VDC (uMin=19V/uMax=30V)
  • -10°C to +60°C operating temperature range with W.T. SSD
  • Supports 2 swappable 2.5″ HDD
  • Supports TPM 2.0 function

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Axiomtek MVS900-512-FL is a Fanless Vision System powered by 7th/6th Gen Intel Core i7/i5/i3 and Intel Celeron Processors. The I/O includes: 2 x COM ports, 4 x USB ports, 2 x LAN ports alongside 1 x HDMI and 1 x VGA for display.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU 7th/6th gen Intel® Core™ i7/i5/i3 & Celeron® processors, up to 65W (Kaby Lake/Skylake)
Chipset Intel® H110
System Memory 2 x DDR4-2133/2400 unbuffered SO-DIMM, up to 32GB
Vision I/O 4-CH trigger input (response time<1us, sink type, input range: 0 to 30V)4-CH trigger output (response time<1us, sink type, open collector, output range: 0 to 30V, 100mA max./CH)4-CH LED lighting control (strobe mode: 24V, 1A per CH/trigger mode: 24V, 0.5A per CH)2-CH quadrature encoder input (A/B/Z)8-CH isolated DI (sink/source type, input range: 0 to 30V)8-CH isolated DO(sink type, open collector, supply voltage: 5-30V, 200mA max./CH)Programmable interrupt functions
Camera Interface 4 x IEEE802.3at GbE LAN port (PoE, Intel® i210-AT, IEEE802.3at compliant, total max. power output 60W)
COM 2 x RS-232/422/485 with isolated 1.5 kVDC protection
USB 4 x USB 3.0, 1 x Internal USB connector
Ethernet 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
Display 1 x HDMI, 1 x VGA
Audio 1 x Mic-in, 1 x Line-out
Digital I/O 1 x 8-in/8-out DIO with isolated 1.5 kVDC protection
Storage 2 x 2.5″ swappable HDD (9.5 mm height)
Expansion 1 x Full-size PCI Express Mini Card slot with USB signal
Others TPM 2.0, 1 x Switch for power On/Off (ATX), 1 x Remote switch, 1 x Reset switch, 1 x 3-pin terminal block, 1 x AT/ATX selectable switch
Power Input Type: ATX/AT, Input: 24 VDC (uMin=19V/uMax=30V)
Construction Aluminum die-casting and heavy-duty, IP40
Operating Temperature -10°C to +60°C (+14°F to +140°F) with 6th gen Intel® Core™ up to 35W and W.T. HDD/SSD*-10°C to +50°C (+14°F to +112°F) with 6th/7th gen Intel® Core™ up to 65W and W.T. HDD/SSD*
Relative Humidity 10% to 90%, non-condensing
Dimensions (W x D x H) 135 x 210 x 230 mm (5.31″ x 8.27″ x 9.06″)
Weight (net/gross) TBC
Software Support AMS.AXView
Certifications CE, FCC
