Industrial Panel PCs

Industrial Panel PCs from Assured Systems are deployed fully configured with your choice of processor, memory, storage, peripheral cards and operating system. Designed for industrial applications, these touchscreen computers are market certified.

Panel PCs and HMI

ViTAM-116RH

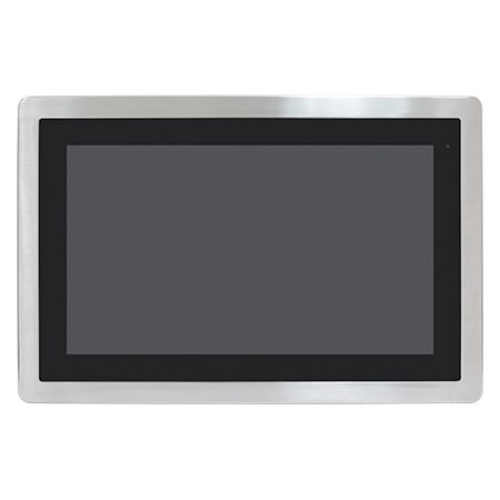

Aplex Technology ViTAM-116RH 15.6″ Stainless Steel 1000nit High Brightness Display with Resistive Touch
  • IP66
  • IP69K
  • Yes
  • 1000nit
  • High

TFT/HVX150PU7F16-A104E

Syslogic TFT/HVX150PU7F16-A104E 15″ Customer Specific Touch Panel PC with Emergency Stop
  • Screen Size: 15" Display
  • Brightness: 400nit (Standard)
  • Resolution: 1024x768
  • CPU: Intel Atom E680T
  • Memory: Up to 2GB
  • Max Temp Range: -30°C to +65°C
  • Power Input: 10 to 30 VDC
  • IP Rating: Front IP65 & Rear IP20
  • Certifications: CE/FCC, EN60068, EN55022

R12IE3S-MRM2FP

Winmate R12IE3S-MRM2FP 12.1″ Intel Pentium N6415 Marine Dashboard Panel PC
  • Screen Size: 12.1" Display
  • Brightness: 1000nit (High)
  • Resolution: 1024x768
  • CPU: Intel Pentium N6415
  • Memory: Up to 16GB
  • Max Temp Range: ­-15°C to +55°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

W10IE3S-MRH2FP

Winmate W10IE3S-MRH2FP 10.1” Intel Pentium N6415 Marine Dashboard Panel PC
  • Screen Size: 10.1" Display
  • Brightness: 350nit (Standard)
  • Resolution: 1280x800
  • CPU: Intel Pentium N6415
  • Memory: Up to 16GB
  • Max Temp Range: -10°C to +50°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

W24IT3S-MRA1

Winmate W24IT3S-MRA1 24″ Intel Core i7-1165G7 Marine Panel PC
  • Screen Size: 24" Display
  • Brightness: 300nit (Standard)
  • Resolution: 1920x1080
  • CPU: Intel Core i7-1165G7
  • Memory: Up to 32GB
  • Max Temp Range: ­-15°C to +55°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

R19IT3S-MRA2

Winmate R19IT3S-MRA2 19″ Intel Core i7-1165G7 Marine Panel PC
  • Screen Size: 19" Display
  • Brightness: 350nit (Standard)
  • Resolution: 1280x1024
  • CPU: Intel Core i7-1165G7
  • Memory: Up to 32GB
  • Max Temp Range: -­15°C to +55°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

R17IT3S-MRM1

Winmate R17IT3S-MRM1 17″ Intel Core i7-1165G7 Marine Panel PC
  • Screen Size: 17" Display
  • Brightness: 350nit (Standard)
  • Resolution: 1280x1024
  • CPU: Intel Core i7-1165G7
  • Memory: Up to 32GB
  • Max Temp Range: -­15°C to +55°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

R15IT3S-MRM2

Winmate R15IT3S-MRM2 15″ Intel Core i7-1165G7 Marine Panel PC
  • Screen Size: 15" Display
  • Brightness: 500nit (Standard)
  • Resolution: 1024x768
  • CPU: Intel Core i7-1165G7
  • Memory: Up to 32GB
  • Max Temp Range: ­-15°C to +55°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

R12IT3S-MRM2

Winmate R12IT3S-MRM2 12.1″ Intel Core i7-1165G7 Marine Panel PC
  • Screen Size: 12.1" Display
  • Brightness: 500nit (Standard)
  • Resolution: 1024x768
  • CPU: Intel Core i7-1165G7
  • Memory: Up to 32GB
  • Max Temp Range: ­-15 to +55°C
  • Power Input: 9 to 36 VDC
  • IP Rating: Front IP66
  • Certifications: CE/FCC

W32IW3S-MLA3FP

Winmate W32IW3S-MLA3FP 32″ Intel Core i5-8265U Defence Console Rack Panel PC
  • Screen Size: 32" Display
  • Brightness: 400nit (Standard)
  • Resolution: 1920x1080
  • CPU: Intel Core i5-8265U
  • Memory: Up to 32GB
  • Max Temp Range: 0°C to +50°C
  • Power Input: 9 to 36 VDC
  • IP Rating: No IP Rating
  • Certifications: CE/FCC

W24IW3S-MLS1-89

Winmate W24IW3S-MLS1-89 24″ Intel Core i7-8665UE Defence Console Rack Panel PC
  • Screen Size: 24" Display
  • Brightness: 300nit (Standard)
  • Resolution: 1920x1200
  • CPU: Intel Core i7-8665UE
  • Memory: Up to 32GB
  • Max Temp Range: 0°C to +50°C
  • Power Input: 9 to 36 VDC
  • IP Rating: No IP rating
  • Certifications: CE/FCC

W24IW3S-MLA2FP

Winmate W24IW3S-MLA2FP 23.8″ Intel Core i5-8265U Defence Console Rack Panel PC
  • Screen Size: 24" Display
  • Brightness: 250nit (Standard)
  • Resolution: 1920x1080
  • CPU: Intel Core i5-8265U
  • Memory: Up to 32GB
  • Max Temp Range: 0°C to 50°C
  • Power Input: 9 to 36 VDC
  • IP Rating: No IP Rating
  • Certifications: CE/FCC
Showing: 1-12 of 764

What is an Industrial Panel PC?

An Industrial Panel PC is an all-in-one industrial touch screen computer consisting of a LCD integrated with a touch overlay and an embedded industrial computer built into the extrusion. They are designed to be installed directly into the production environment and to provide the operator with a convenient interface panel for controlling processes. Some of the most common applications include process control, data acquisition, human-machine interfaces, and process monitoring. Industrial Panel PCs may also be used for industrial automation, robotics, machine vision systems, motion controllers, and other advanced applications.

These systems are typically made with industrial-grade components, which allow them to withstand repeat exposure to extreme temperatures, shock and vibration, dust and debris, and damp conditions.

Choosing Assured Systems for your Industrial Panel PC

Our Industrial Panel PCs can be fully configured to suit your exact requirements. Working with you, our engineers can advise you on the processor, memory, storage, peripheral cards and operating system. We can provide hardware integration for systems, single-board computer and LCD configuration, and operating system installation and support. We also offer robust testing to ensure the stability of all our systems before they are shipped.

Read on for further information about the customisation options available for Industrial Panel PCs:

Industrial Panel PC Mount Options

Whether you’re an OEM looking to get a head start with your project or you are in need of a wall mounted touchscreen computer we have you covered. Choose from open frame, panel mounts or a wall/VESA mount chassis

Suitable for Installation in Apertures of All Sizes

Our Industrial Panel PCs are also available in a variety of sizes to suit any need or purpose. We have options available in sizes from 7″ to 24″ with a 4:3 standard or 16:9 widescreen aspect ratio.

Choose a Processor to Suit Your Exact Requirements

Available with a wide range of processors our Industrial panel PCs utilise Intel Atom processors for low power consumption and Intel Core processors where higher performance is necessary.

Optional Integrated Touchscreen Technology

Available with resistive, projective capacitive (PCAP), surface acoustic wave (SAW) or infrared (IR) touchscreens, our Industrial Panel PCs can be installed in a wide range of applications.

Optional Fanless Operation with No Moving Parts

By removing fans and utilising heat sink technology, Industrial Panel PCs ensure optimal reliability, particularly in harsh environments subject to dust and debris. Our systems can also be configured to be completely solid state, removing not only the fan but moving parts altogether, further improving reliability in harsh environments, especially in shock and vibration prone installations.

Optional IP65, IP 66 or IP69K Ingress Protection

IP65 and IP69K Rated Waterproof Touchscreen PCs are ideal for marine and food manufacturing applications where they’re prone to high pressure wash downs, steam cleaning and extreme temperature shock. These waterproof computers can be IP rated from the front or all round utilising M12 connectors for necessary power and I/O.

Optional High Brightness and Wide Viewing Angles Available

Optional high brightness or Sunlight Readable TFT LCD Displays provide at least 1,000 nits of brightness making them perfectly suited for outdoor applications.

Let Assured Systems Build Your Industrial Panel PC

Industrial Panel PCs are built to order in our workshop and are ready for deployment when they arrive on your door. Contact us today for product options, support requests, ideas or just to chat about your project and get some advice.

Need Help Choosing?

We have over 20 years experience in helping engineers, developers and project owners to choose the correct hardware for their projects.
