HM961-HM86

DFI

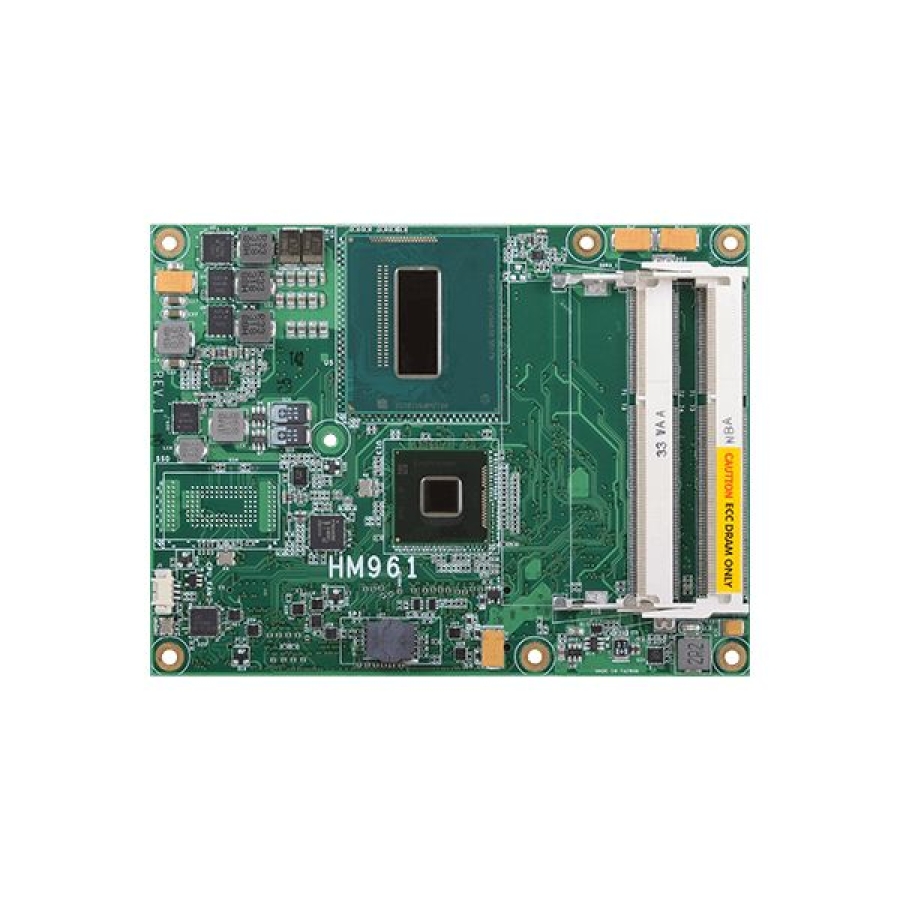

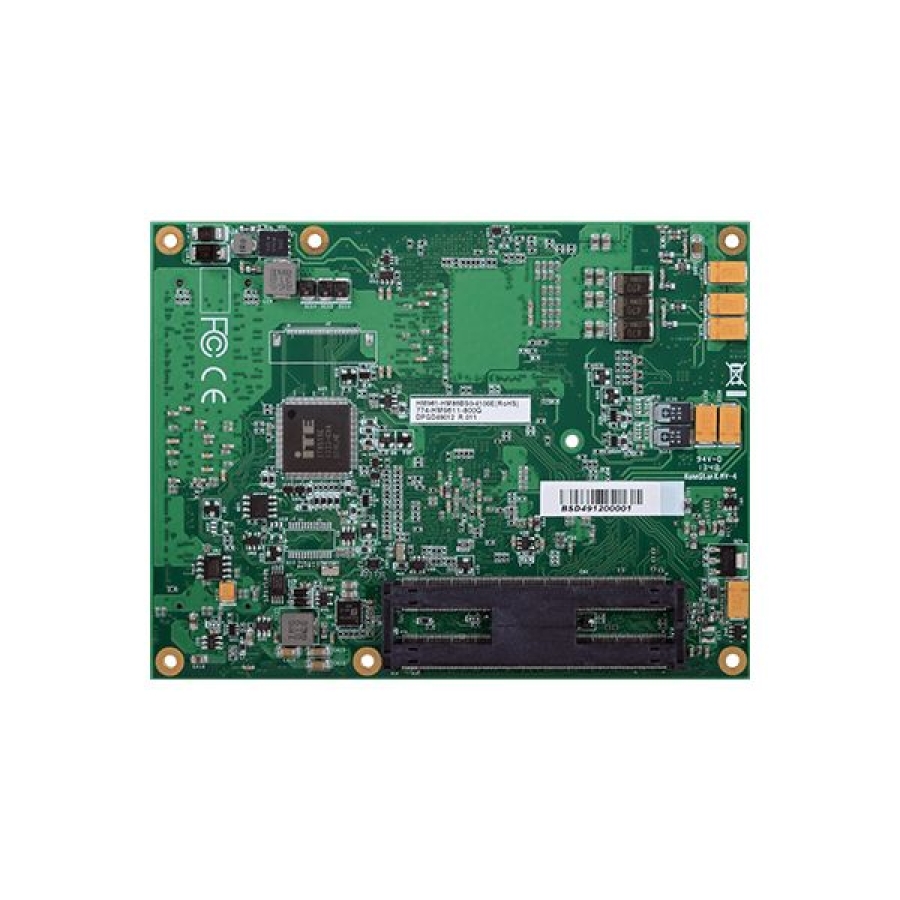

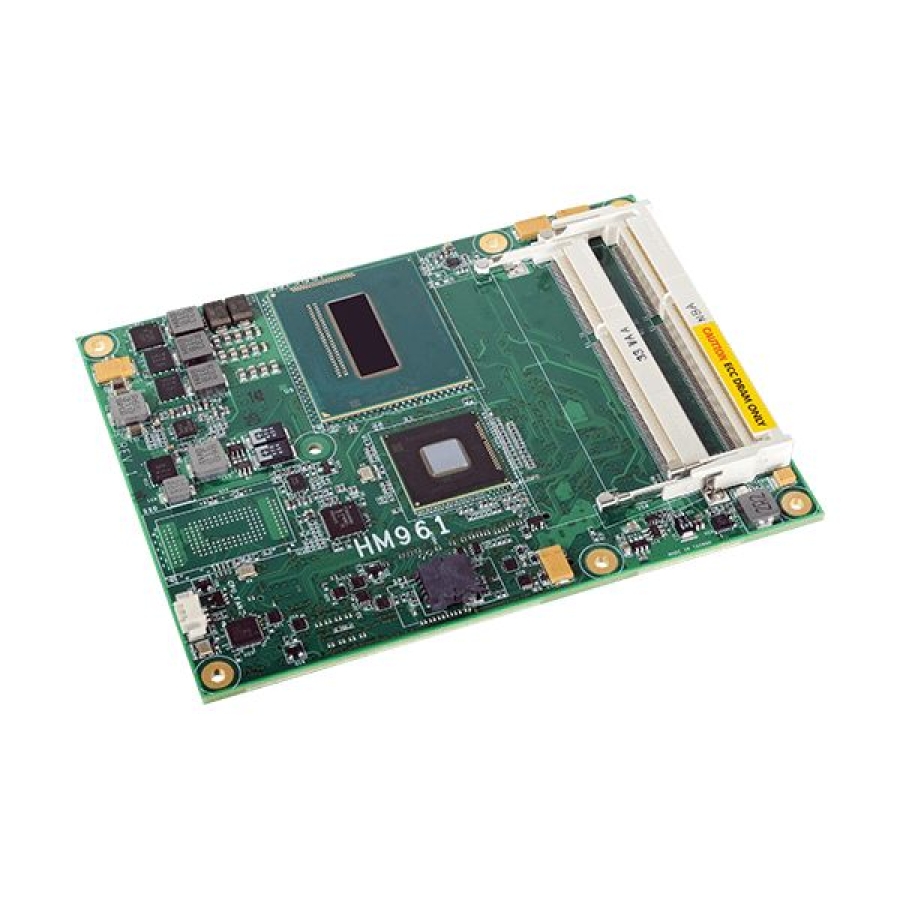

DFI HM961-HM86 COM Type 6 inc. 4th Gen Intel Core Processor & Intel HM86 Chipset

End of Life

  • 4th Gen Intel® Core™, Intel® HM86 Chipset
  • Rich I/O: 1 Intel GbE, 2 x USB 3.0, 8 x USB 2.0
  • Multiple expansion: 1 PCIe x16, 4 x SATA, 1 x LPC, 1 x I2C, 1 x SMBus
  • 1 x VGA, 1 x LVDS, 3 x DDI
  • Dual channel DDR3L 1600MHz ECC SODIMM up to 16GB
  • 7-Year CPU Life Cycle Support Until Q3′ 19 (Based on Intel IOTG Roadmap)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The DFI HM961-HM86 is a COM Express Basic Type 6 module that is part of the mobile-based Intel® HM86 product line providing low-power consumption and higher performance. This COM Express Basic module is powered by the BGA 1364 packaging technology supporting the latest 4th generation Intel® Core™ processor family. The enhancements in CPU performance, media and graphics capabilities, security and power efficiency in the 4th generation Intel® Core™ processor family are driving innovation.

Ordering Info

SH960-CM236BS-1515M770-SH9604-D00G

Cooler, Intel Xeon E3-1515M v5, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

SH960-QM170TS-6820EQ770-SH9604-A00G

Heat Spreader, Intel Core i7-6820EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C

SH960-CM236BS-6100E770-SH9604-E00G

Cooler, Intel Core i3-6100E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

SH960-CM236BS-3900E770-SH9604-F00G

Cooler, Intel Celeron G3900E, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

SH960-QM170BS-6440EQ770-SH9604-600G

Cooler, Intel Core i5-6440EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

SH960-QM170BS-6820EQ770-SH9604-400G

Cooler, Intel Core i7-6820EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

SH960-QM170BS-6822EQ770-SH9604-500G

Cooler, Intel Core i7-6822EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

SH960-QM170BS-6442EQ770-SH9604-700G

Cooler, Intel Core i5-6442EQ, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

System   Processor 6th Generation Intel® Core™ Processors, BGA 1440Intel® Xeon® E3-1515M v5 Processor, Quad Core, 8M Cache, 2.8GHz (3.7GHz), 45WIntel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45WIntel® Core™ i7-6822EQ Processor, Quad Core, 8M Cache, 2.0GHz (2.8GHz), 25WIntel® Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz), 45WIntel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25WIntel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35WIntel® Core™ i3-6102E Processor, Dual Core, 3M Cache, 1.9GHz, 25WIntel® Celeron® Processor G3900E, Dual Core, 2M Cache, 2.4GHz, 35WIntel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W Chipset Intel® CM236 Chipset (Support ECC)Intel® QM170 Chipset Memory Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz BIOS Insyde SPI 128Mbit   Graphics   Controller Intel® HD Graphics Feature OpenGL up to 4.4, DirectX 12, OpenCL 2.1HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 Display 1 x VGA/DDI (DDI available upon request)1 x LVDS/eDP (eDP available upon request)2 x DDI (HDMI/DVI/DP++)VGA: resolution up to 1920×1200 @ 60HzLVDS: dual channel 24-bit, resolution up to 1920×1200 @ 60HzHDMI: resolution up to 4096×2160 @ 24Hz or 2560×1600 @ 60HzDVI: resolution up to 1920×1200 @ 60HzDP++/eDP: resolution up to 4096×2304 @ 60Hz Triple Displays VGA + LVDS + DDI or VGA + DDI1 + DDI2eDP + 2 DDI (available upon request)   Expansion   Interface 1 x PCIe x16 or 2 x PCIe x8 (Gen 3)8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)1 x LPC1 x I2C1 x SMBus2 x UART (TX/RX)   Audio   Interface HD Audio   Ethernet   Controller 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)   I/O   USB 4 x USB 3.08 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10 DIO 1 x 8-bit DIO   Watchdog Timer   Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds   Power   Type 12V, 5VSB, VCC_RTC (ATX mode)12V, VCC_RTC (AT mode) Consumption Typical: i7-6820EQ: 12V @ 2.39A (28.62Watt)Max.: i7-6820EQ:12V @ 5.84A (70.10Watt)   OS Support   OS Support Windows 8.1 64-bitWindows 7 (/WES7) 32/64-bitWindows 10 IoT Enterprise 64-bitDebian 8 (with VESA graphic driver)CentOS 7 (with VESA graphic driver)Linux   Environment   Temperature Operating: 0 to 60°C, -40 to 85°CStorage: -40 to 85°C Humidity Operating: 5 to 90% RHStorage: 5 to 90% RH MTBF 663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessoriesCalculation Model: Telcordia Issue 2, Method Case 3Environment: GB, GC – Ground Benign, Controlled   Mechanism   Dimensions COM Express® Basic 95mm (3.74″) x 125mm (4.9″) Compliance PICMG COM Express® R2.1, Type 6   Standards and Certifications   Certifications CE, FCC   Packing List   Packing List 1 SH960-CM236/QM170 board1 Cooler (Height: 36.58mm): (Standard) A71-111026-000G or 1 Heat spreader (Height: 11mm): A71-011073-000G
