Em104-a5362

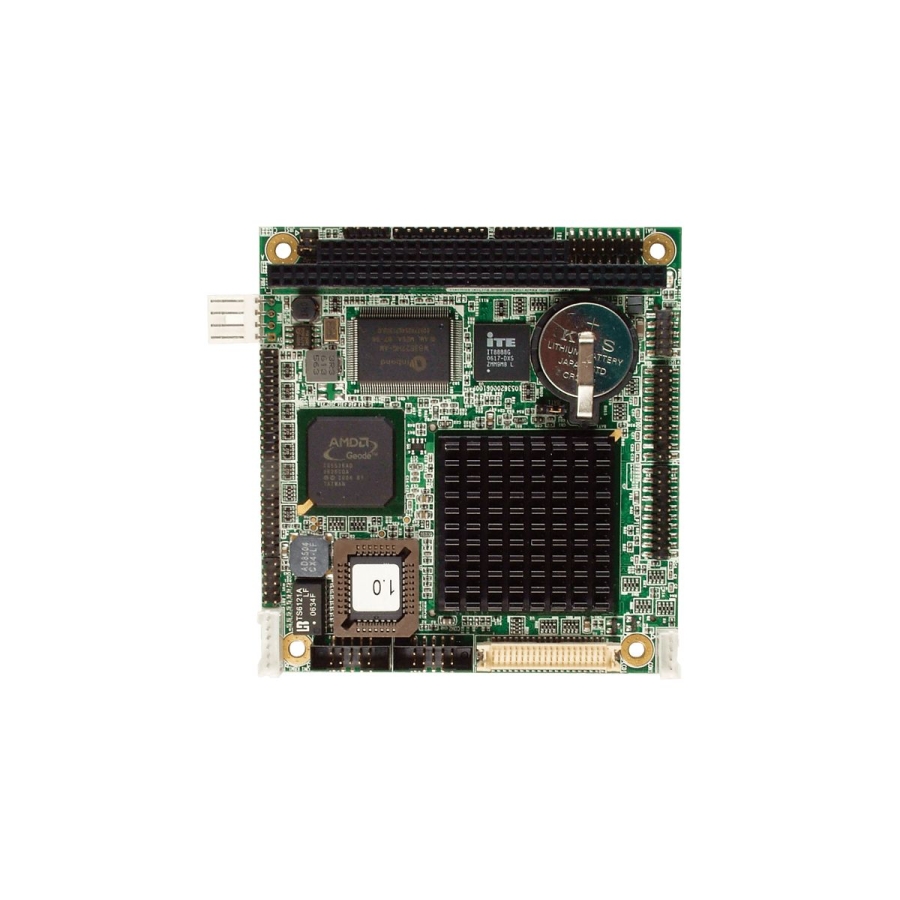

Arbor Technology Em104-a5362 AMD Geode LX800 PC/104 CPU Module

Em104-a5362

  • Fanless Design
  • Low Power PC/104 CPU Module
  • Soldered Onboard AMD Geode LX800 Processor
  • 18/24-bit TTL, and Analog RGB
  • Multi-expansion (2 x USB, 2 x Serial Ports, 1 x PATA, 1 x FDD, PC/104, 1 x CF Socket)
  • Extended Operating Temp.: -20 ~ 70°C
-
+

Details

The Arbor Technology Em104-a5362 is a AMD Geode LX800 PC/104 powered by the CPU Module



Ordering Info

Em104-a5362VL/LX800 AMDGeode LX800 PC/104 CPU module

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

... (PDF)

0.36MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU Soldered onboard AMD Geode LX800 500MHz processor
Memory 1 x 200-pin DDR SO-DIMM Socket supporting 200MHz SDRAM up to 1GB
Chipset AMD Geode CS5536
BIOS Phoenix-Award PnP Flash BIOS
Storage 1 x Ultra ATA, support 2 IDE devices1 x Floppy disk drive1 x CompactFlash Type II Socket
Watchdog Timer 1~255 levels reset
I/O Chip Winbond W83627HG
Serial Port 2 x COM ports (1 x RS-232, 1 x RS-232/422/485 selectable)
Parallel Port SPP/EPP/ECP mode selectable
USB Port 2 x USB 2.0 ports
KB/MS One 1 x 6-pin wafer connector (PS/2 interface for Keyboard and Mouse)
Storage 1 x Ultra ATA, support 2 IDE devices1 x Floppy disk drive1 x CompactFlash Type II Socket
Expansion PC/104 interface
Ethernet Chipset 1 x Realtek RTL8100CL PCI 10/100Base-T Ethernet controller
Power Requirement Small 4P AT power connector
Power Consumption 1.99A/5V
Operating Temp. -20 ~ 70°C (-4 ~ 158°F)
Operating Humidity 0 ~ 90% (non-condensing)
Dimension (L x W) 96 x 90 mm (3.8″ x 3.5″)


Graphics Chipset AMD Geode LX800 CPU integrated VGA controller with 2D Engine (Shared memory Max. 64MB)
Graphics Interface LCD: 18/24-bit TTL up to 1280 x 1024
