W12IE3S-MRB1FP

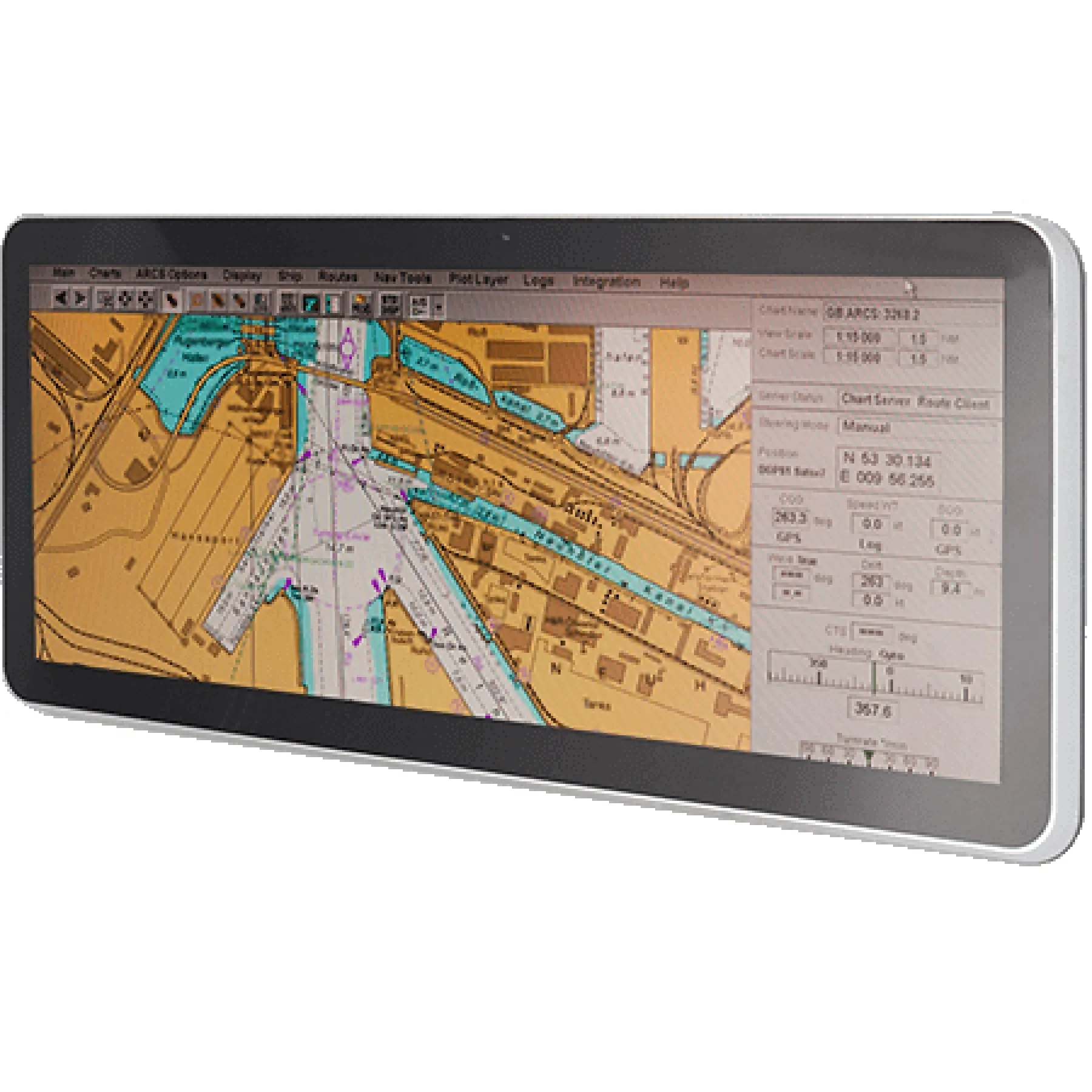

Winmate W12IE3S-MRB1FP Intel Pentium N6415 12.3″ Marine Dashboard Panel PC

W12IE3S-MRB1FP

  • Intel Elkhart Lake Pentium N6415 processor dashboard panel PC
  • 12.3” 1920 x 720 wide viewing angle with PCAP touch
  • 9~36V DC Power input acceptable
-
+

Details

Winmate 12.3" Marine Panel PC with 1920 x 720 Wide Viewing Angle and PCAP Touch Technology Winmate 12.3" Marine Panel PC featuring a high-resolution 1920 x 720 display with a wide viewing angle and PCAP touch technology. This rugged panel PC is designed to meet the demanding requirements of marine environments, ensuring reliable performance even in harsh conditions. With its durable construction and marine-specific certifications, it offers excellent resistance to water, moisture, vibration, and extreme temperatures. The PCAP touch technology provides intuitive and responsive touch control, enhancing usability and efficiency. Whether for navigation, monitoring, or control applications, the Winmate 12.3" Marine Panel PC is a reliable choice for marine professionals. Winmate 12.3" Marine Panel PC with Versatile 9~36V DC Power Input The Winmate 12.3" Marine Panel PC is equipped with a versatile 9~36V DC power input, making it compatible with a wide range of marine power systems. This feature ensures seamless integration and reliable operation in diverse marine environments. Whether it's on a boat, ship, or offshore platform, the panel PC can handle varying voltage levels without compromising performance. With its flexible power input capabilities, the Winmate 12.3" Marine Panel PC offers convenience and adaptability for marine professionals seeking a reliable computing solution on their vessels. Winmate 12.3" Marine Panel PC with Intel® Elkhart Lake Pentium® N6415 Processor The Winmate 12.3" Marine Panel PC is equipped with the powerful Intel® Elkhart Lake Pentium® N6415 Processor, making it an efficient and reliable computing solution. Designed specifically for marine environments, this Dash panel PC delivers exceptional performance and meets the demanding requirements of marine applications. Whether it's for navigation, monitoring, or control purposes, the Winmate 12.3" Marine Panel PC provides a robust and responsive user experience. With its rugged construction and advanced processing capabilities, it is an ideal choice for marine professionals seeking a high-performance computing solution for their dash panel needs. Enhanced Interaction with PCAP Multi-Touch Screen Winmate 12.3” marine panel pc features a PCAP (Projected Capacitive) multi-touch screen, providing a responsive and intuitive user interface. The PCAP technology allows for accurate touch detection and supports multi-touch gestures, enabling users to interact with the marine panel pc effortlessly. The multi-touch functionality allows for zooming, panning, and gesture-based controls, enhancing the user experience and improving productivity. With the PCAP multi-touch screen, operators can easily navigate through complex interfaces, input data, and access information with a simple touch, making the marine panel pc an ideal choice for industrial applications that require intuitive and efficient human-machine interaction.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Display
Size 14.9 inches
Resolution 1920×720
Type Projected Capacitive Multi-Touch
Panel Brightness 950.0 nits
Contrast Ratio 1000:01:00
View Angles 88,88,88,88
System Specification
Processor Intel®Pentium® N6415 (1.5M Cache, up to 3.0GHz)
Memory 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional)
Storage 1 x M.2 2242 B-key SSD 256GB 512GB (Optional)
Ethernet Controller 2 x Intel® Ethernet Controller Security: TPM 2.0
Operating System Windows 11 IoT Enterprise SAC (64 bit) (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional)
Environment
Operating Humidity 5% to 95%
Operating Temperature -15~55°C
Shock 15G, 11ms Duration
IP Rating IP66 (Front Side)
Certification
Certification CE, FCC
IO Ports
USB Port 2x USB 2.0 (M12 Type)
Serial Port 2 x RS232 (M12 Type)
Video 1 x HDMI 2.0 (Optional)
LAN 2 x LAN 10/100/1000 Mbps (M12 type)
Mechanical
Dimension 325.02 x 146.5 x 45 mm
Weight 3.5KG
Mounting VESA Mount/Panel Mount
Enclosure Metal
Cooling System Fanless Design
Accessory
Accessory User Manual M16 Power Cable M12 COM Port Cable M12 USB/ LAN Cable M12 USB Cable
Power
Power Rating 24V Dc-in with isolation (Approval by Certificate) 9-36V DC Input Acceptable
Touch Technology Projected Capacitive
Ingress Protection IP66
Brightness 1000nit, High
Resolution 1920x700, Special/Other
GPU Integrated GPU
Memory Capacity Up to 16GB, Up to 4GB, Up to 8GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, RS-232
USB Ports 2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN) 1x 1G
Storage Type 1, M.2
Input Voltage 24 VDC, 9-36 VDC
Mounting Options Panel-mount, VESA-mount
Operating Temperature -15°C to 55°C, Wide
Certifications CE/FCC
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 IoT, Windows 11 Pro
