M970D

9.7″ Windows Rugged Tablet with Optional Vehicle Docking Station

End of Life

  • Brand: Winmate
  • Intel® Atom N2600 CPU
  • Mobile Rugged design for anti-Shock, Vibration and transit drop
  • IP54 water & dust proof
  • Size: 267mm (W) x 210.6mm (H) x 22mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Winmate M970D is a ruggedised mobile tablet PC supporting Windows Embedded 7 operating system and the Intel Atom N2600 Dual core 1.6GHz processor. Paired with the optional vehicle dock, this rugged tablet PC can be installed in any vehicle for a robust solution in applications where the user is in and out of a vehicle such as distribution.

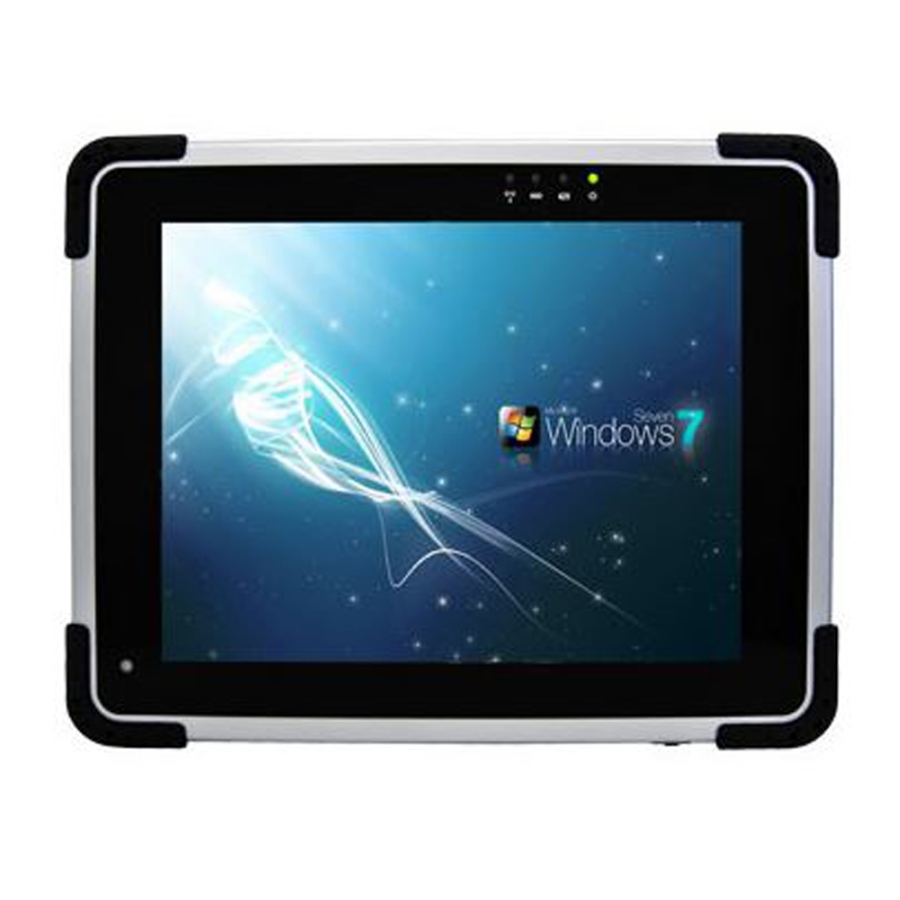

The tablet has a 9.7" high quality LED screen with a resolution of 1024 x 768. The compact design is anti-shock and vibration resistant with an IP54 rating for dust and liquid ingress protection. Wireless communication is through Wi-Fi 802.11 a/b/g/n 2T2R and Bluetooth 4.0 + Class 1, a built-in GPS and 3G is optional with a built in module.

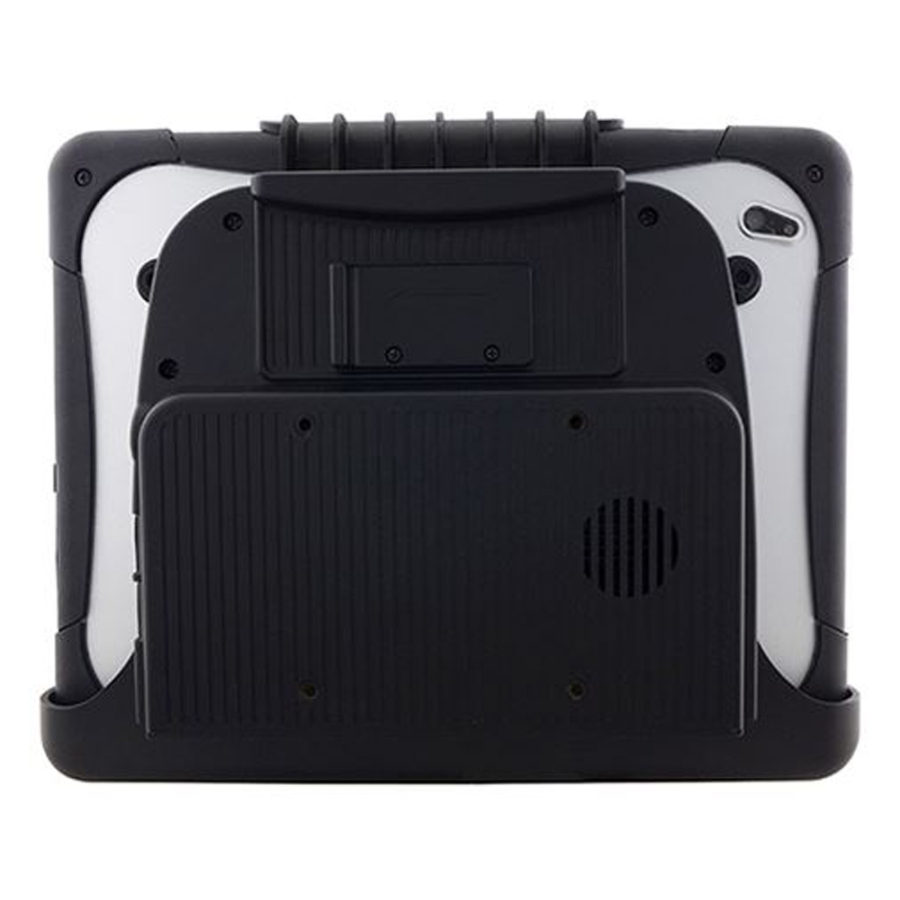

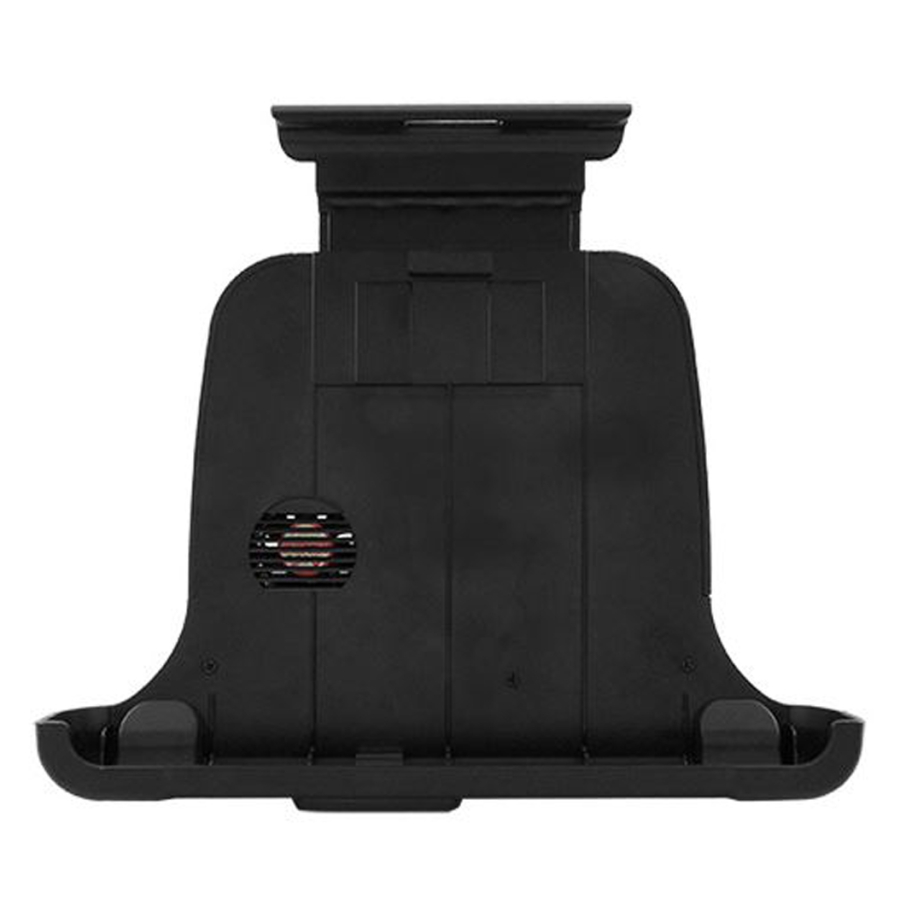

The optional vehicle docking station holds the tablet tightly on a moving vehicle in a lockable design. With a wide voltage DC input the dock supports both terminal block & 2.5ψ power jack input. The design is rain proof and able to withstand harsh environments.

Ordering Info

  • M970D – 9.7″ Windows Rugged Tablet with Intel Atom N2600 Dual core 1.6GHz processor
  • VD-M970D – Docking Station – Dimension : 273.5 x 220 x 65.33 mm Bottom I/O : USB x 2 / LAN / COM / DC-in Side I/O : USB x 2

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  •  9.7″ High Quality 1024 x 768 Resolution LED Panel
  • Low-power system with Intel® Atom N2600 processor
  • 2GB SODIMM DDR3-800 memory
  • Built-in Wi-Fi / Bluetooth Module / GPS
  • Support 3G function (for optional)
  • Projective-capacity touch
  • Mobile Rugged design for anti-Shock, Vibration and transit drop
  • IP54 water & dust proof
