BE960

DFI

DFI BE960 COM Basic Type 6 with 2nd Gen AMD R-Series,AMD A77E & DDR3L up to 16GB

End of Life

  • 2nd Gen AMD® R-Series, AMD® A77E
  • Rich I/O: 1 Intel GbE, 4 x USB 3.0, 8 x USB 2.0
  • Multiple expansion: 1 PCIe x16, 7 PCIe x1, 1 x LPC, 1 x I2C, 1 x SMBus
  • Four independent displays: VGA*/DDI + LVDS*/eDP + 2 DDI
  • Dual Channel DDR3L 1866MHz SODIMM up to 16GB
  • 10-Year CPU Life Cycle Support Until Q3′ 23 (Based on AMD Roadmap)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

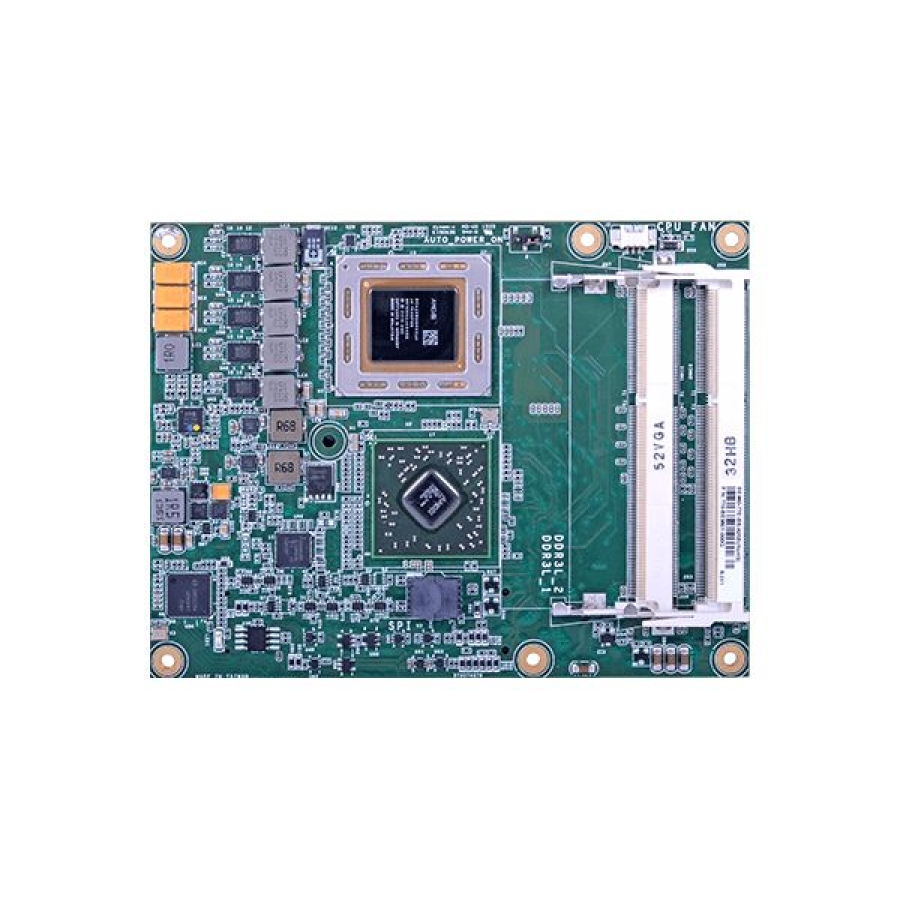

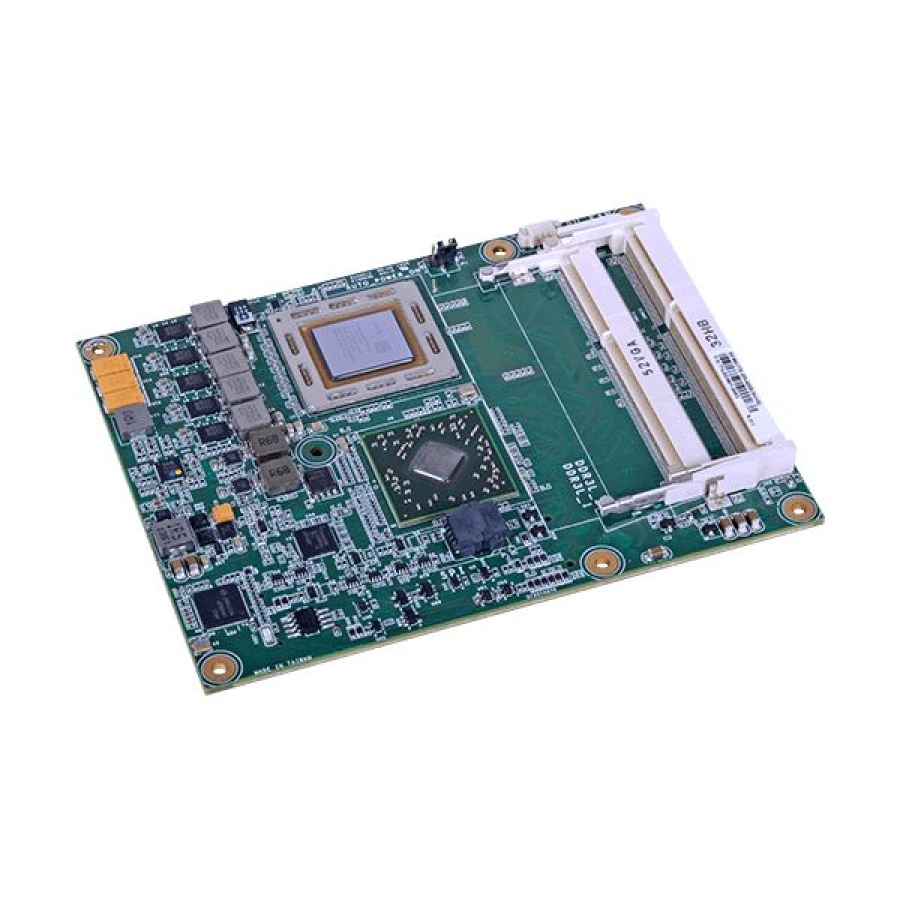

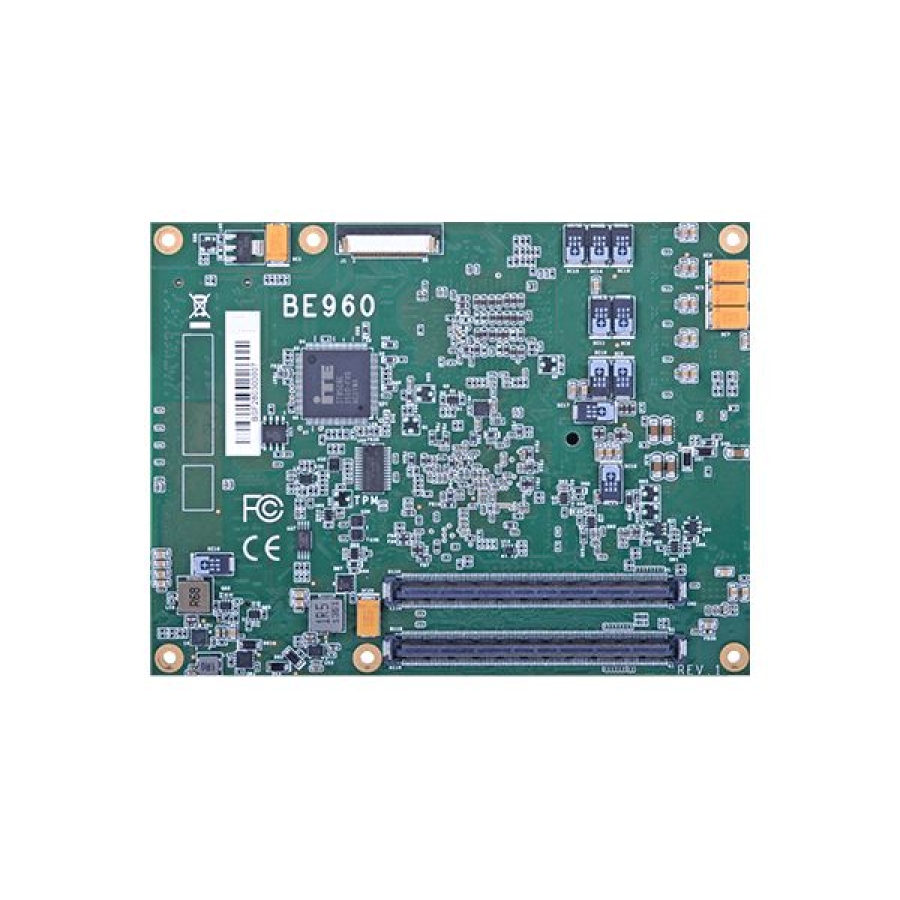

The DFI BE960 is a COM Express Basic Type 6 with 2nd Generation AMD R-Series, AMD A77E. This module has Rich I/O ( 1 x Intel GbE, 4 x USB 3.0 and 8 USB 2.0 ), Multiple Expansion ( 1PCIe x16, 7 PCIe x1, 1 x LPC, 1 x I2C and 1 x SMBus ) and Four Independent Displays ( VGA*/DDI + LVDS*/eDP + 2 DDI ). It also includes Dual Channel DDR3L 1866MHz SODIMM up to 16GB.

Ordering Info

BE960-77E-BS-427B

770-BE9601-200G

Cooler, AMD RX-427BB, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C

BE960-77E-BS-425B

770-BE9601-000G

Cooler, AMD RX-425BB, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

System   Processor 2nd Generation AMD® Embedded R-Series APUs, FP3 BGAAMD® RX-427BB, Quad Core, 4M Cache, 2.7GHz (3.6GHz), 35WAMD® RX-425BB, Quad Core, 4M Cache, 2.5GHz (3.4GHz), 35W Chipset AMD® A77E Fusion Controller Hub Memory Two 204-pin SODIMM up to 16GB Dual Channel DDR3L 1866MHz BIOS AMI SPI 64Mbit   Graphics   Controller AMD Radeon™ HD 9000 Series Graphics Feature OpenGL 4.2, OpenGL 3.1, Direct X 11.1, OpenCL 1.2HW Decode: H.264, MPEG2, VC-1, MPEG4 (DivX), WMVHW Encode: H.264 Display 1 x VGA/DDI (DDI available upon request)1 x LVDS/eDP (eDP available upon request)2 x DDI (HDMI/DVI/DP++)VGA: resolution up to 2048×1536 @ 75HzLVDS: dual channel 24-bit, resolution up to 1920×1200 @ 60HzeDP: resolution up to 1920×1080 @ 60HzHDMI: resolution up to 4096×2160 @ 24Hz or 1920×1080 @ 60HzDVI: resolution up to 1920×1200 @ 60HzDP++: resolution up to 3840×2160 @ 30Hz Quad Displays VGA + LVDS + 2 DDIeDP + 3 DDI   Expansion   Interface 1 x PCIe x16 (Gen 3)7 x PCIe x1 or 1 x PCIe x4 + 3 x PCIe x1 (Gen 2)1 x LPC1 x I2C1 x SMBus2 x Serial (TX/RX)   Audio   Interface HD Audio   Ethernet   Controller 1 x Intel® I210AT PCIe (10/100/1000Mbps)   I/O   USB 4 x USB 3.08 x USB 2.0 SATA 4 x SATA 3.0 (up to 6Gb/s) DIO 1 x 8-bit DIO   Watchdog Timer   Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds   Security   TPM Available Upon Request   Power   Type 12V, 5VSB, VCC_RTC (ATX mode)12V, VCC_RTC (AT mode) Consumption Typical: RX-427BB: 12V @ 1.33A (15.95Watt)Max.: RX-427BB: 12V @ 3.35A (40.18Watt)   OS Support   OS Support Windows 8.1 64-bitWindows 7 (/WES7) 32/64-bitWindows 10 IoT Enterprise 64-bitDebian 8 (with VESA graphic driver)CentOS 7 (with VESA graphic driver)Linux   Environment   Temperature Operating: 0 to 60°CStorage: -40 to 85°C Humidity Operating: 10 to 90% RHStorage: 10 to 90% RH MTBF 822,620 hrs @ 25°C; 467,324 hrs @ 45°C; 293,581 hrs @ 60°C excluding accessoriesCalculation Model: Telcordia Issue 2, Method Case 3Environment: GB, GC – Ground Benign, Controlled   Mechanism   Dimensions COM Express® Basic 95mm (3.74″) x 125mm (4.9″) Compliance PICMG COM Express® R2.1, Type 6   Packing List   Packing List 1 BE960 Board1 Cooler (Height: 36.58mm): A71-111026-000G
