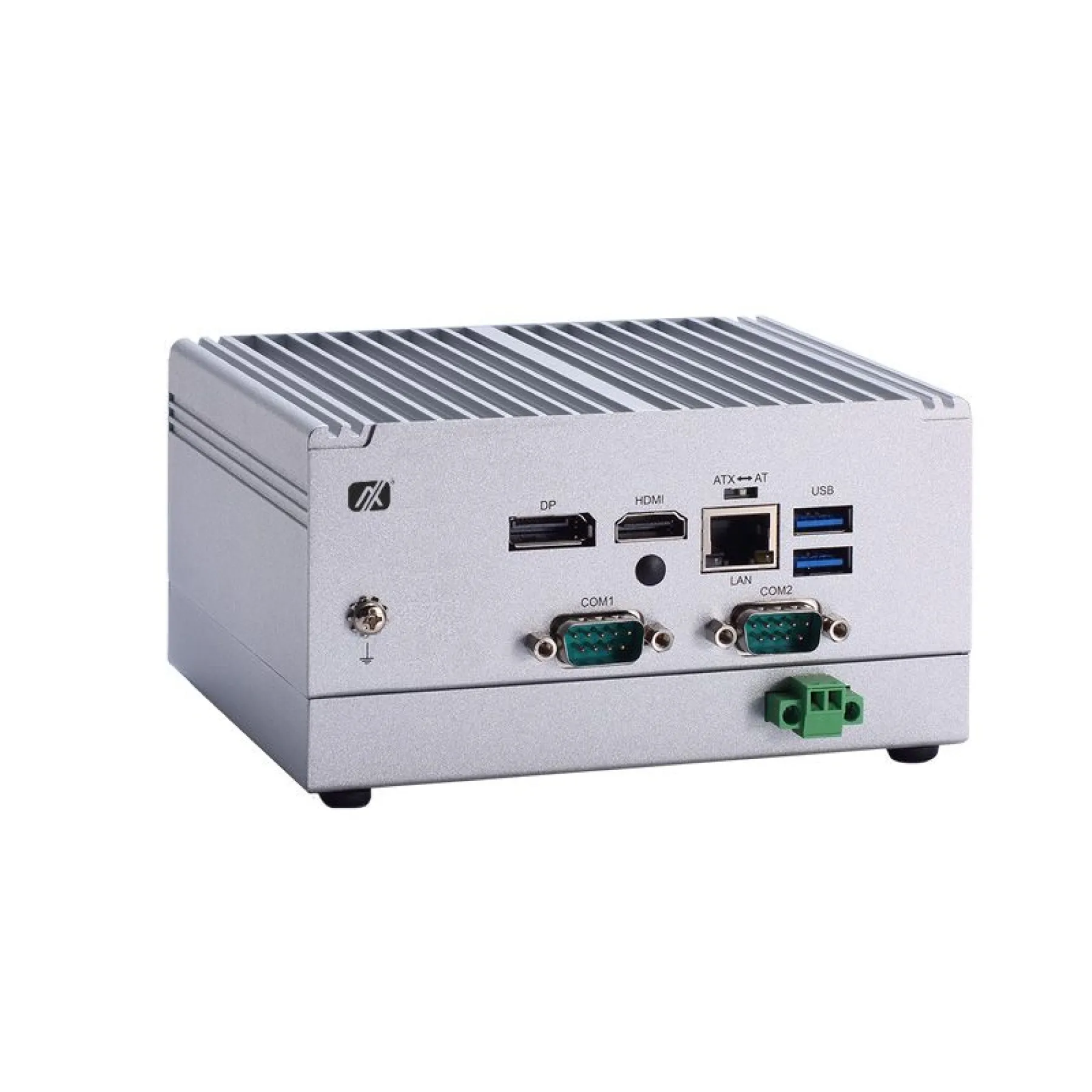

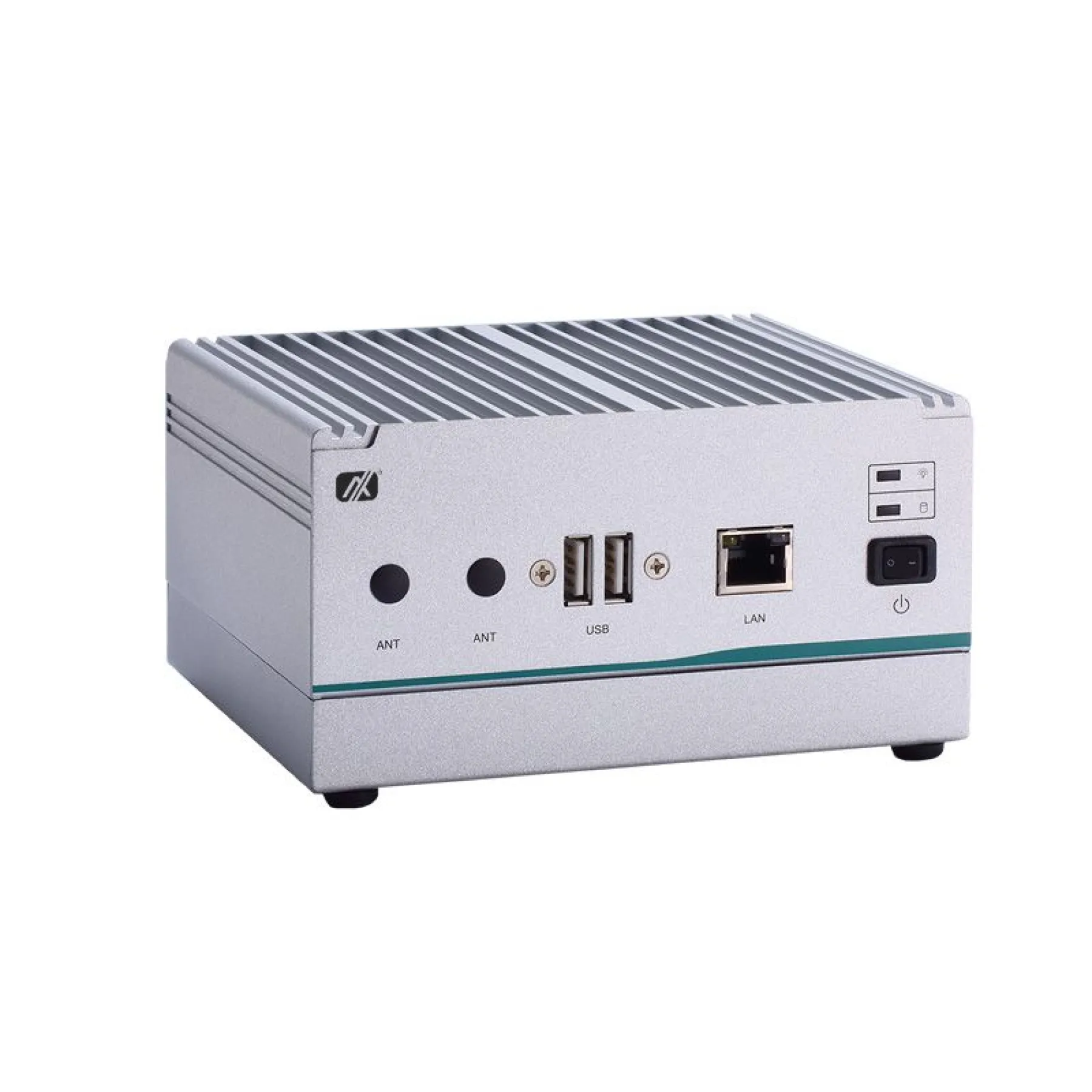

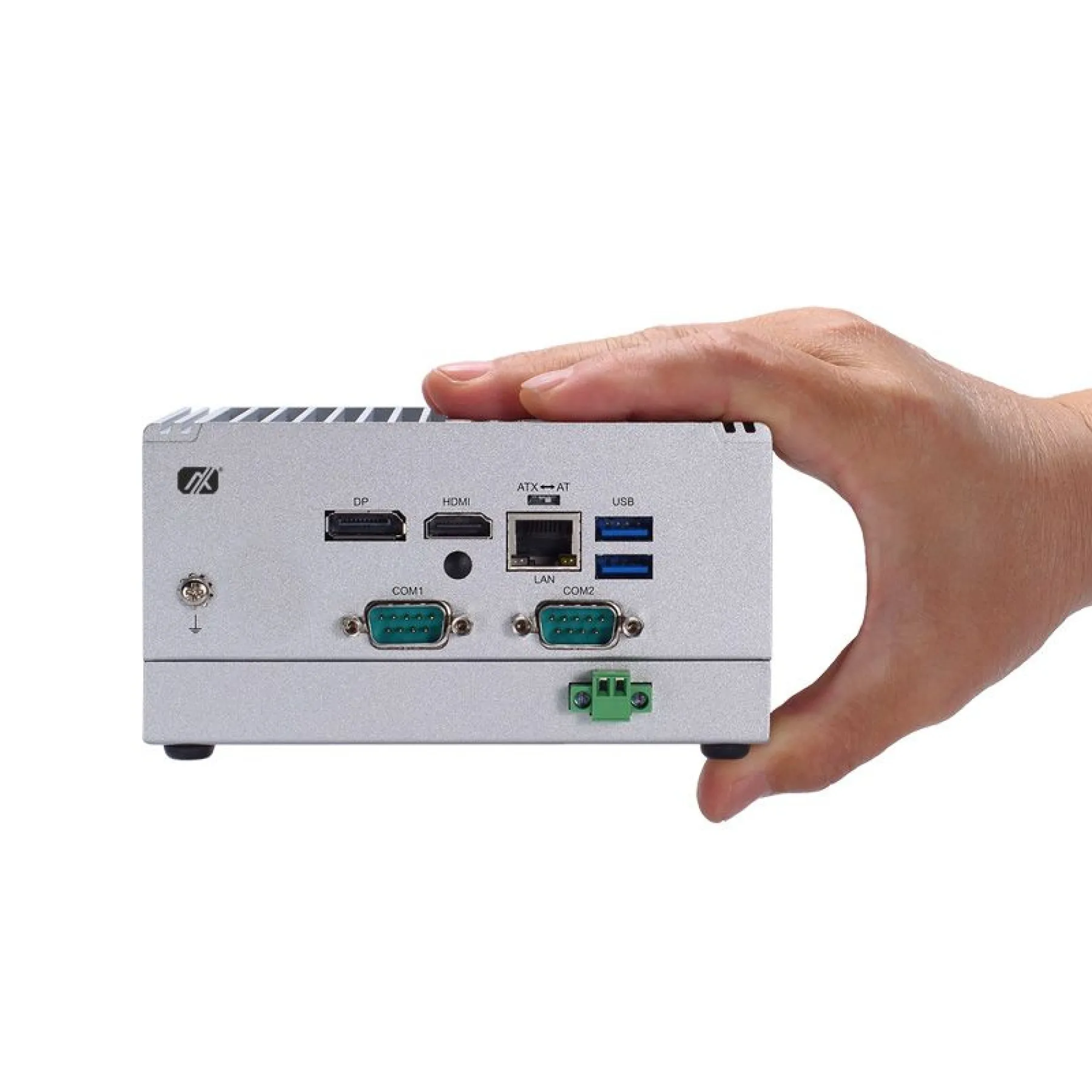

eBOX565-52R-FL

Axiomtek eBOX565-52R-FL 8th Gen Intel Core Fanless Embedded PC w/ 32GB Memory

eBOX565-52R-FL

  • 8th gen Intel Core and Celeron processor onboard (Whisky Lake-U )
  • One M.2 Key E 2230 for Wi-Fi module
  • 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
  • 2 GbE LAN and 2 USB 3.1 Gen2
  • Supports DisplayPort++ and HDMI for dual independent displays
  • Multiple mounting designs: Wall mount, DIN-rail and VESA mount
  • 9 to 36 VDC wide range input

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Axiomtek eBOX565-52R-FL Fanless Embedded System is driven by a Intel Core i5-8365UE 1.6Ghz/Celeron 4305UE 2.0Ghz Processor with DDR4 SODIMM up to 32GB memory containing 2 x USB 2.0, 2 x USB 3.1 Gen2, 2 x 10/100/1000 Mbps Ethernet (Intel i219-LM, Intel i211-AT).

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU
  • Intel Core i5-8365UE, 1.6 GHz
  • Intel Celeron 4305UE, 2.0 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.1 Gen2
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel i219-LM, Intel i211-AT)
Display
  • 1 x DisplayPort++
  • 1 x HDMI (lockable)
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5″ SATA HDD drive bay (max. up 9.5 mm height)
Expansion
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Screw type VDC power input connector
  • 2 x Antenna opening
  • 1 x Phoenix type VDC power input connector
Power
  • 9 – 36 VDC
Watchdog Timer
  • 65535 levels, 1 to 65536 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F) with 0.7 m/s air flow (with W.T. SSD/DRAM)
Relative Humidity
  • 10% – 90%, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions (W x D x H)
  • 141.6 x 106 x 73 mm (5.57″ x 4.17″ x 2.87″)
Weight (net/gross)
  • 1.1 kg (2.43 lb)/1.8 kg (3.96 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, Linux
Software Support
  • AMS.AXView
Mounting
  • DIN-Rail kit
  • VESA mount kit
  • Wall mount kit
Processor Type Intel Celeron, up to 2 Cores, Intel Core, up to 4 Cores
Memory Capacity Up to 32GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-232/422/485
USB Ports 2x USB 3.1, 2x USB 2.0
Ethernet Ports (LAN) 2x 1G
Wireless Wi-Fi
Video Ports 1x HDMI, 1x DisplayPort
Storage Type 1x 2.5"
Expansion Type 1x M.2
Input Voltage 9-36 VDC
Mounting Options DIN-mount, VESA-mount, Wall-mount
Operating Temperature Wide OT: -10°C to 50°C
Market Certifications CE/FCC
OS Support Linux, Windows 10
