ECM-QM87R

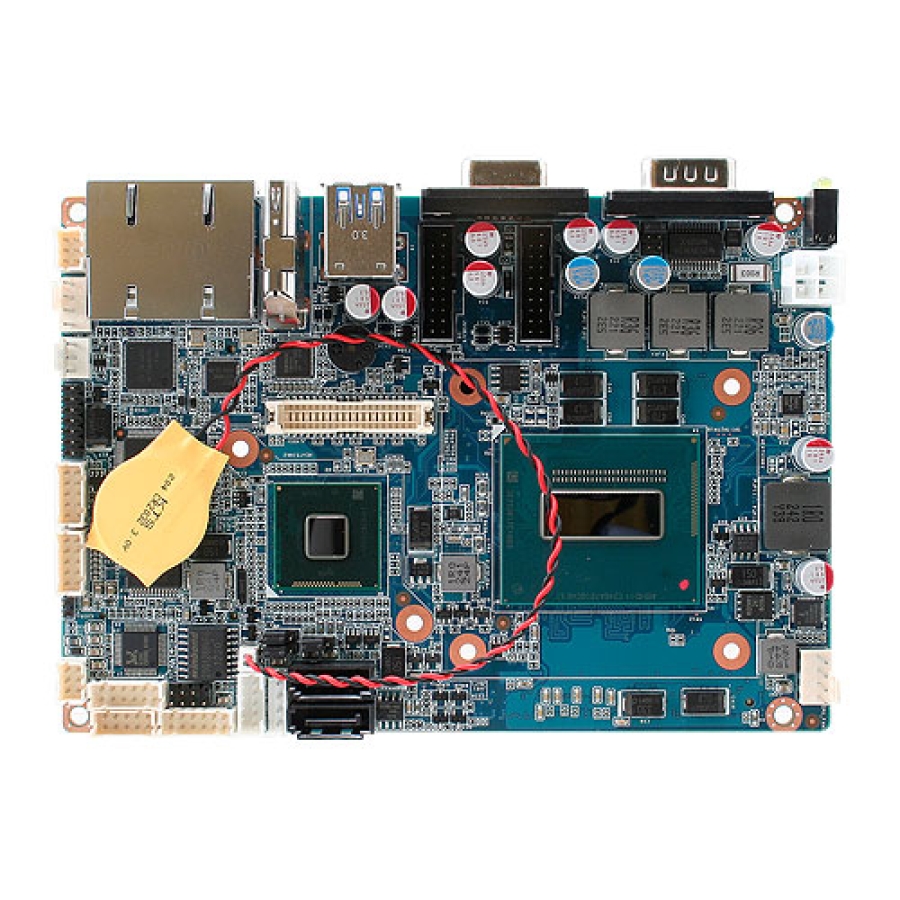

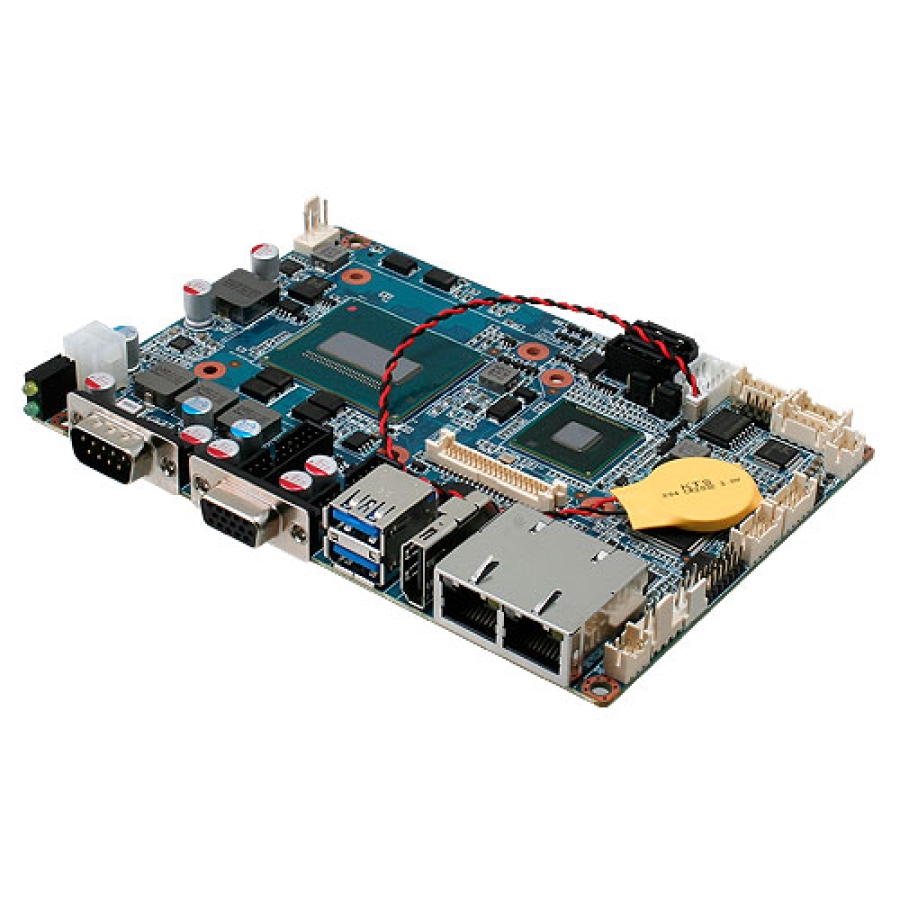

Avalue ECM-QM87R 3.5″ 4th Gen. Intel Core i5/i3 BGA Single Board Computer

End of Life

  • Onboard 4th Gen Intel Core  i5/i3 BGA Processor
  • One 204-pin DDR3L SODIMM Up to 8GB DDR3 1333/ 1600 SDRAM
  • Dual-channel 18/ 24-bit LVDS, HDMI, VGA
  • Triple Display
  • 2 x SATA III, 1 x Mini PCIe Card (Support mSATA)
  • 6 x USB 3.0, 2 x USB 2.0, 2 x COM, 8-bit DIO iAMT 9.0

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Avalue EPI-QM87R is available with two different 4th Generation Intel processor options. The rich I/O deployment enables a variety of embedded applications such as gaming, industrial automation, kiosks, digital signage etc.

Ordering Info

ECM-QM87R-4422-A1R 3.5″ W/i5 4422E/QM87R/6USB3.0/2COM/A1
ECM-QM87R-4110-A1R 3.5″ W/i3 4110E/QM87R/6USB3.0/2COM/A1

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Processor 4th Gen Intel Core i5-4422E, 2-Core, 1.8GHz processor, 4th Gen Intel Core i3-4110E, 2-Core, 2.6GHz processor
System Chipset Intel QM87 Express Chipset
System Memory 1 x204-Pin DDR3L 1333MHz SO-DIMMup to 8 GB, or 1 x204-Pin DDR3 1600MHz SO-DIMMup to 8 GB
I/O Chip EC ITE IT8518E
BIOS AMI uEFI BIOS, 128Mbit SPI Flash ROM
Watchdog Timer H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature and Voltage with Auto Throttling Control
Expansion 1 x Mini PCIe Supports mSATA
Storage 1 x mSATA, Supported from Mini PCIe
USB 2 x USB 2.0, 6 x USB 3.0
SATA 2 x SATA III
COM Port 1 x RS-232/422/485, 1 x RS-232
DIO 1 x 8bit GPIO
MIO 1 x LPC
Chipset Intel QM87 Chipset Integrated, Supports triple display
Resolution VGA:Max. resolution 1920×1200 60Hz, HDMI:Max. resolution 3840×2160 24Hz, LVDS:Max. resolution 1920×1080 60Hz, VGA + LVDS + HDMI, Dual-channel 18/ 24-bit LVDS
Chipset Realtek ALC892, supports 5.1-CH
Audio Interface Mic-In, Line-In and Line-Out
Chipset 1 x Intel I210AT, 1 x Intel I217LM
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
Power Requirement +12V
ACPI Single Power ATX Support S0, S3, S4, S5, ACPI 3.0 Compliant
Power Type AT/ATX
Operating Temp 0°C ~ 60°C (32°F ~ 140°F)
Storage Temp -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Dimension (L x W) 5.7″ x 4″ (146mm x 101mm)
Weight 0.44lbs (0.2kg)
Certification Information CE, FCC Class B
OS Information Win 8, Win 7, Linux
