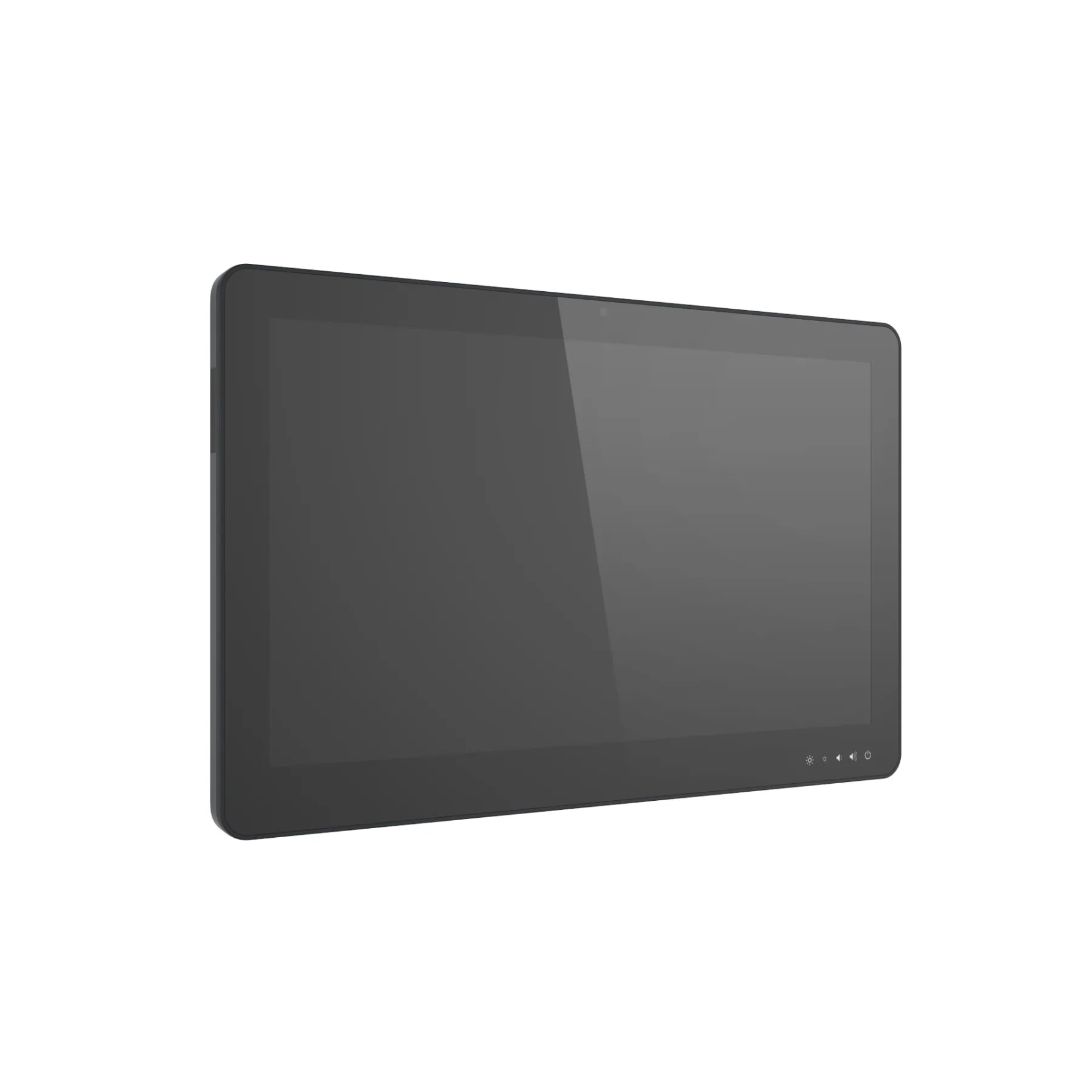

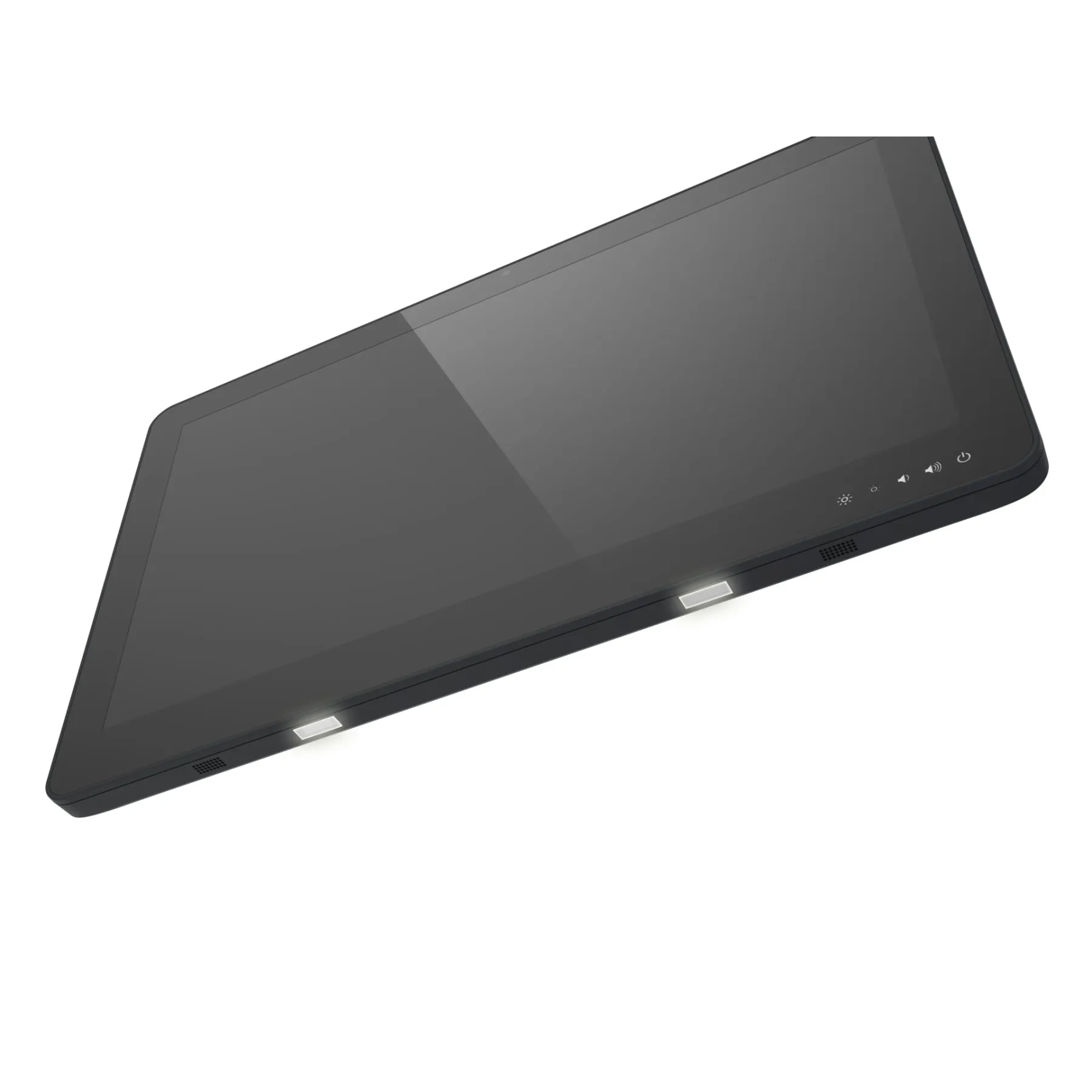

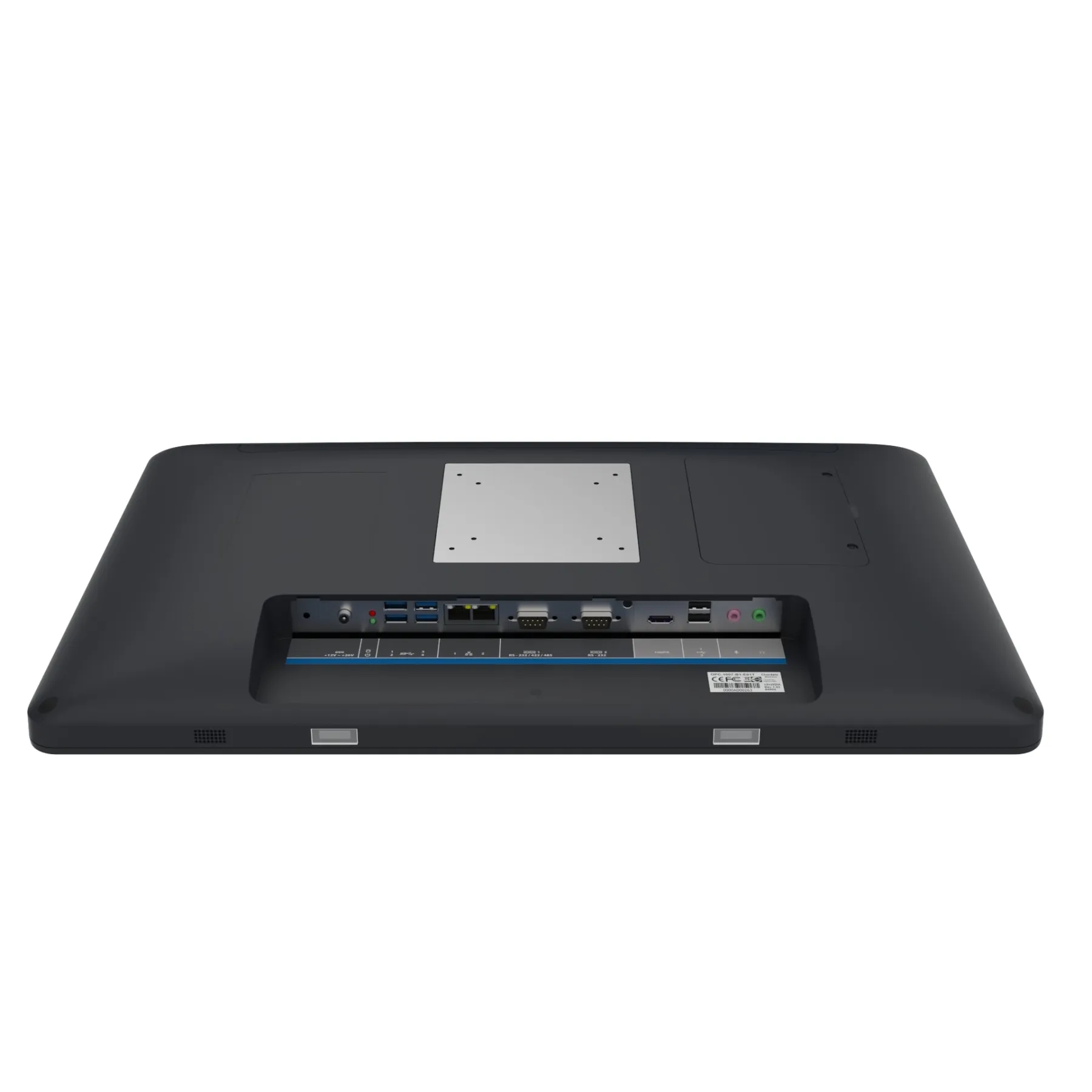

Avalue APC-2132 21.5″ 6th Gen Intel Core i7/i5/i3 Celeron Expandable Ultra Light Fanless Panel PC
APC-2132
- Onboard Intel Core i7/i5/i3/Celeron BGA Processor
- 10 points PCAP multi-touch support
- 4 USB3.0, 2 COM, 2 GLAN
- Infineon TPM2.0
- HDMI, 2 USB2.0, Line Out, Mic in, half size Mini PCIe by IET board
- Front IP65, Fanless System & VESA Compliance
- Wide Voltage +12V ~ +26V Input, ErP Power
- Multi function front OSD touch key
- Optional NFC/ LED reading light bar/ Smart battery
- Optional WIFI/BT module
- Optional Expansion I/O port by IET module
APC-2132
Avalue, Industrial Panel PCs, Industrial Touchscreen Computers, IP65 Panel PCs, Open Frame Panel PCs, Wall Mount Panel PCs
Details
The Avalue APC-2132 21.5" Expandable Ultra light Multi-Touch Fanless Panel PC powered by 6th Gen Intel Core Processor i7/i5/i3 Intel Celeron.Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
| Touch Technology | Projected Capacitive |
|---|---|
| Ingress Protection | IP65 |
| Brightness | 250nit, Standard |
| Resolution | 1920x1080, FHD |
| GPU | Integrated GPU |
| Memory Capacity | Up to 16GB |
| Cooling Type | Fanless, Yes |
| Serial Ports (COM) | 1 Port, 1 Port, 2 Ports, RS-232, RS-232/422/485 |
| USB Ports | 2 Ports, 4 Ports, 6 Ports, USB 2.0, USB 3.0 |
| Ethernet Ports (LAN) | 2 Ports, 2 Ports |
| Wireless | Wi-Fi |
| Audio | Yes |
| Video Ports | 1 Port, 1x HDMI, 2 Ports, LVDS |
| Storage Type | 1, 1, 2, 2.5", mSATA |
| Expansion Type | 2, 2, Any Expansion Type, Mini PCI Express |
| Input Voltage | 12-26 VDC, ATX Powered, Yes |
| Mounting Options | Stand-mount, VESA-mount, Wall-mount |
| Operating Temperature | 0°C to 40°C, Standard |
| Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 10, up to Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8.1 |
Delivery Information
Orders dispatched from Assured Systems USA will be delivered using FedEx.
Payment Methods & Options
Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.
Avalue: Warranty and Service Information
Founded in 2011, Assured Systems are an official EMEA Partner of Avalue. For all Avalue products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
