AES-5204

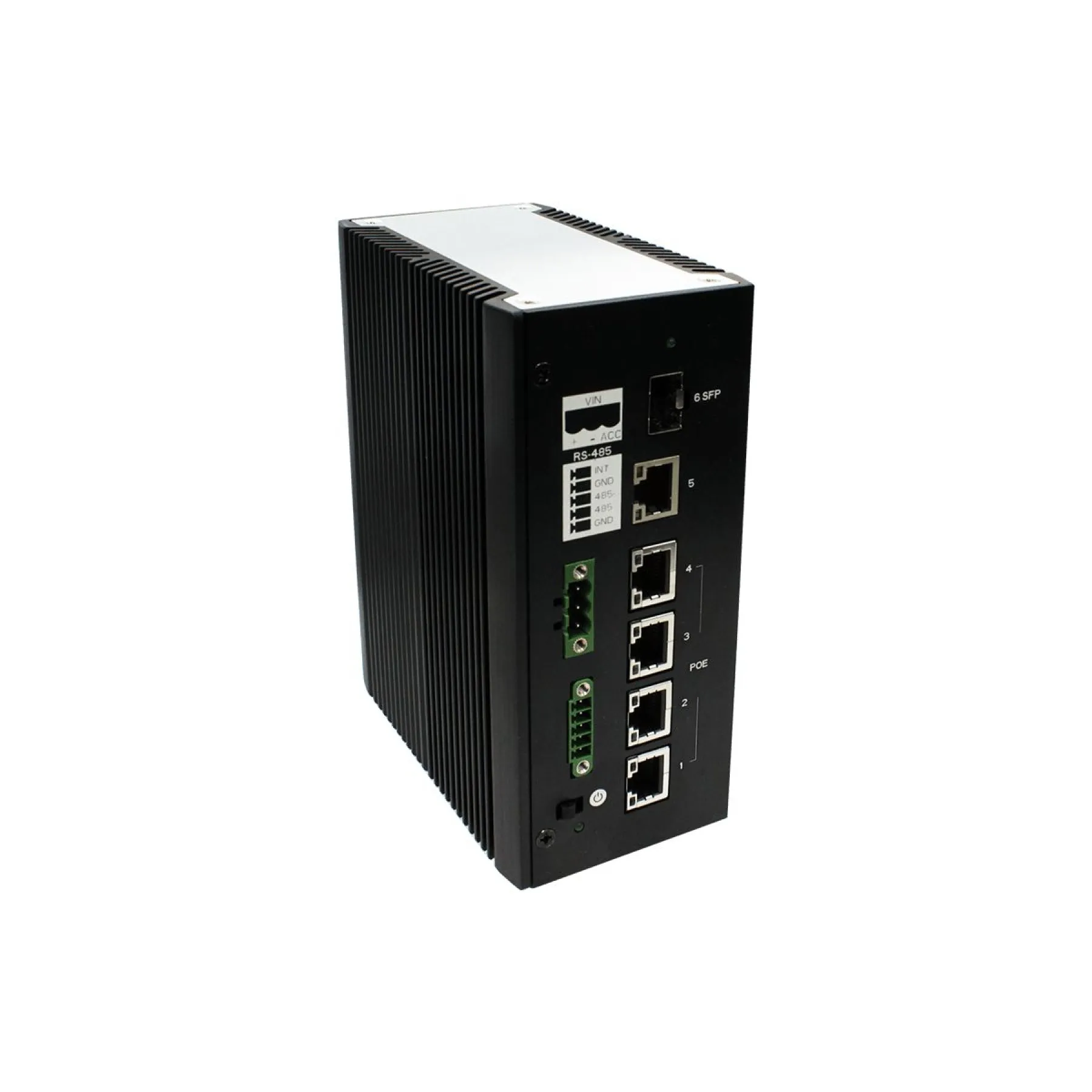

Arbor Technology AES-5204 Industrial Ethernet Switch with 4x IEEE 802.3at PoE

AES-5204

  • RJ-45 & SFP Upstream supported
  • 1 x GbE LAN, 1 x SFP and 4 x 802.3at PoE ports protection
  • Up to 25.5 watts per PoE port
  • 1 x RS-485 Camera Console Port
  • Embedded MCU for intruder & power loss detection
  • DC 9~36V power input
  • Operating temperature (-40°C ~ 75°C)
-
+

Details

The Arbor Technology AES-5204 is an Industrial Ethernet Switch with 4x IEEE 802.3at PoE

Ordering Info

AES-5204 6-port Industrial Ethernet Switch with 4x IEEE 802.3at PoE ports

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Standard IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3at, 802.3af, 802.3az
Ethernet 4 x 10/100/1000 Mbps auto sensing, support 802.3at
Connectors 5 x RJ-45 : 10/100/1000Base-T, Built-in 1.5 KV magnetic isolation1 x SFP : 1000Base-X1 x 5-pin termianl block : RS-485 console port1 x 3-pin terminal block : power input connector
LED Indicators Per port: Link/Activity, Speed
Operating Temp. -40 ~ 75°C (-40 ~ 167°F), ambient w/ air flow
Storage Temp. -40 ~85 °C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 75°C (non-condensing)
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Power Input DC 9~36V input (w/ 3-pin DC input terminal block)
Power Consumption Max. 120W
Power Management Vehicle ACC power ignition controlReversed power input protectionIgnition-controlled power distribution circuit
Construction Aluminum alloy
Mounting Support DIN-rail/wall-mounting
Weight 1.5 kg (3.428 lb)
Dimensions (W x D x H) 155 x 70 x 125 mm (6.10” x 2.75” x 4.92”)
Certification CE, FCC Class A, UL/cUL 508 Compliant

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Arbor Technology: Warranty and Service Information

Assured Systems are proud to be an official partner of Arbor Technology, providing a 2 year warranty on all products supplied within the EMEA. Extension options are also available for your convenience. Warranties also cover products that have been configured to meet specific customer specifications.
