Gladius G0830

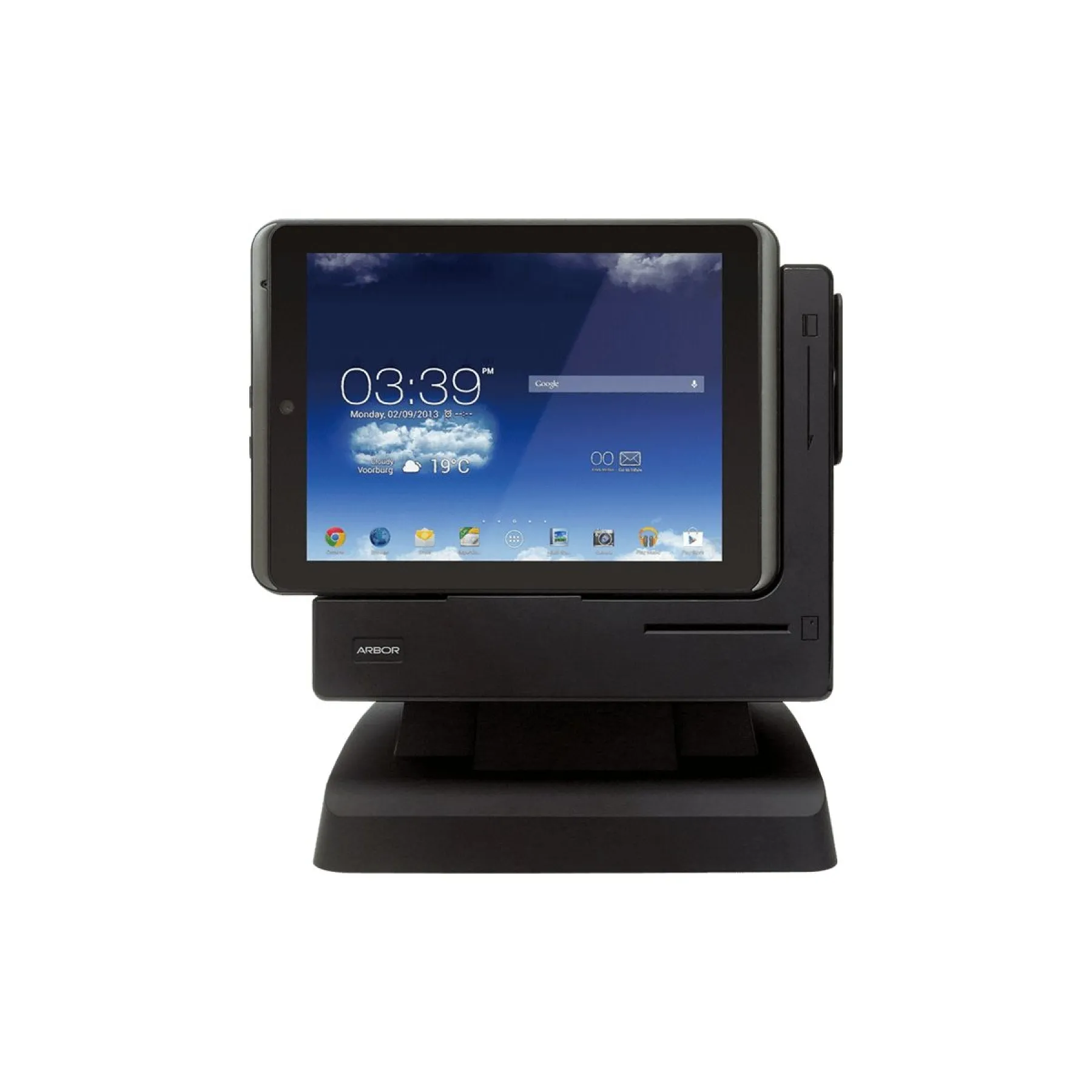

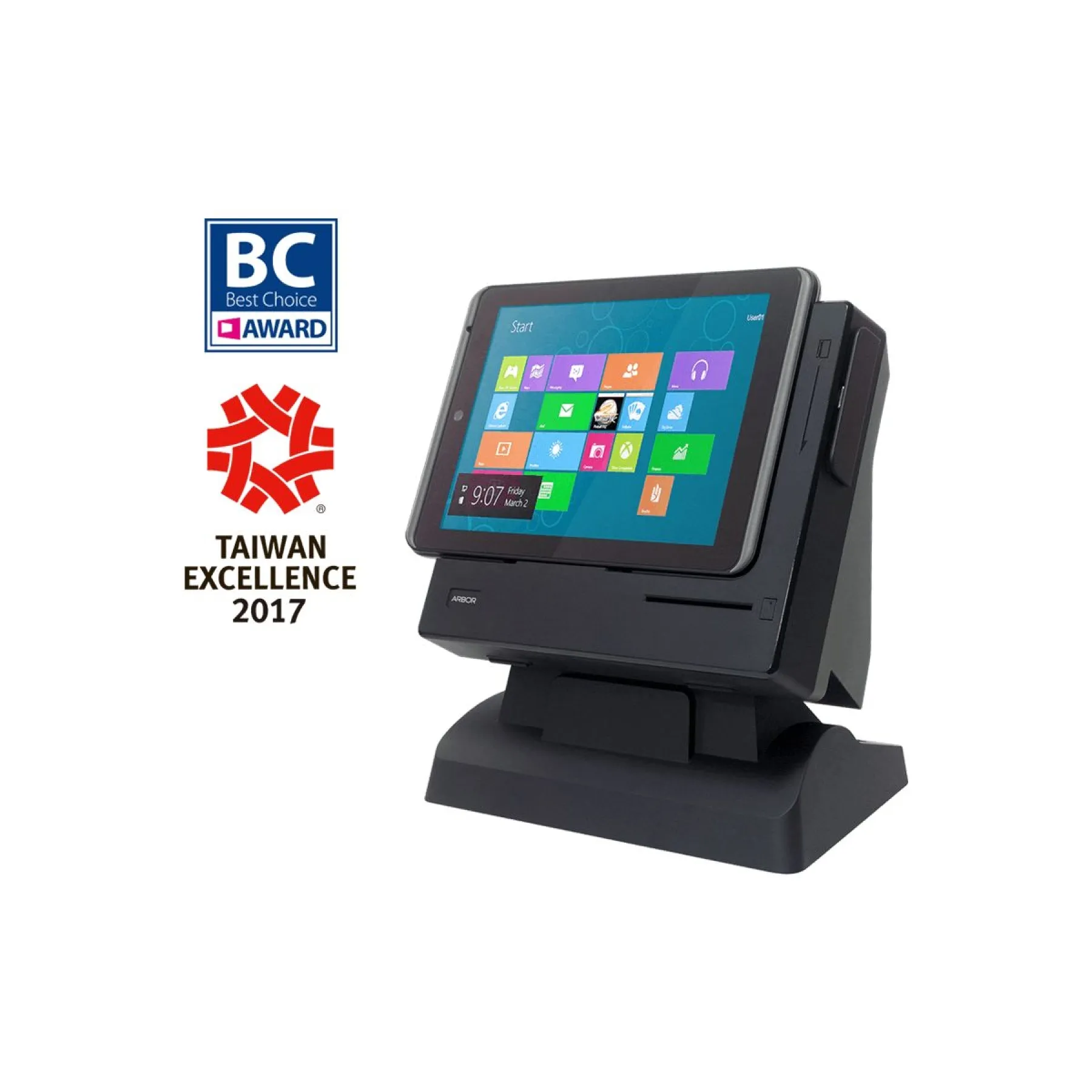

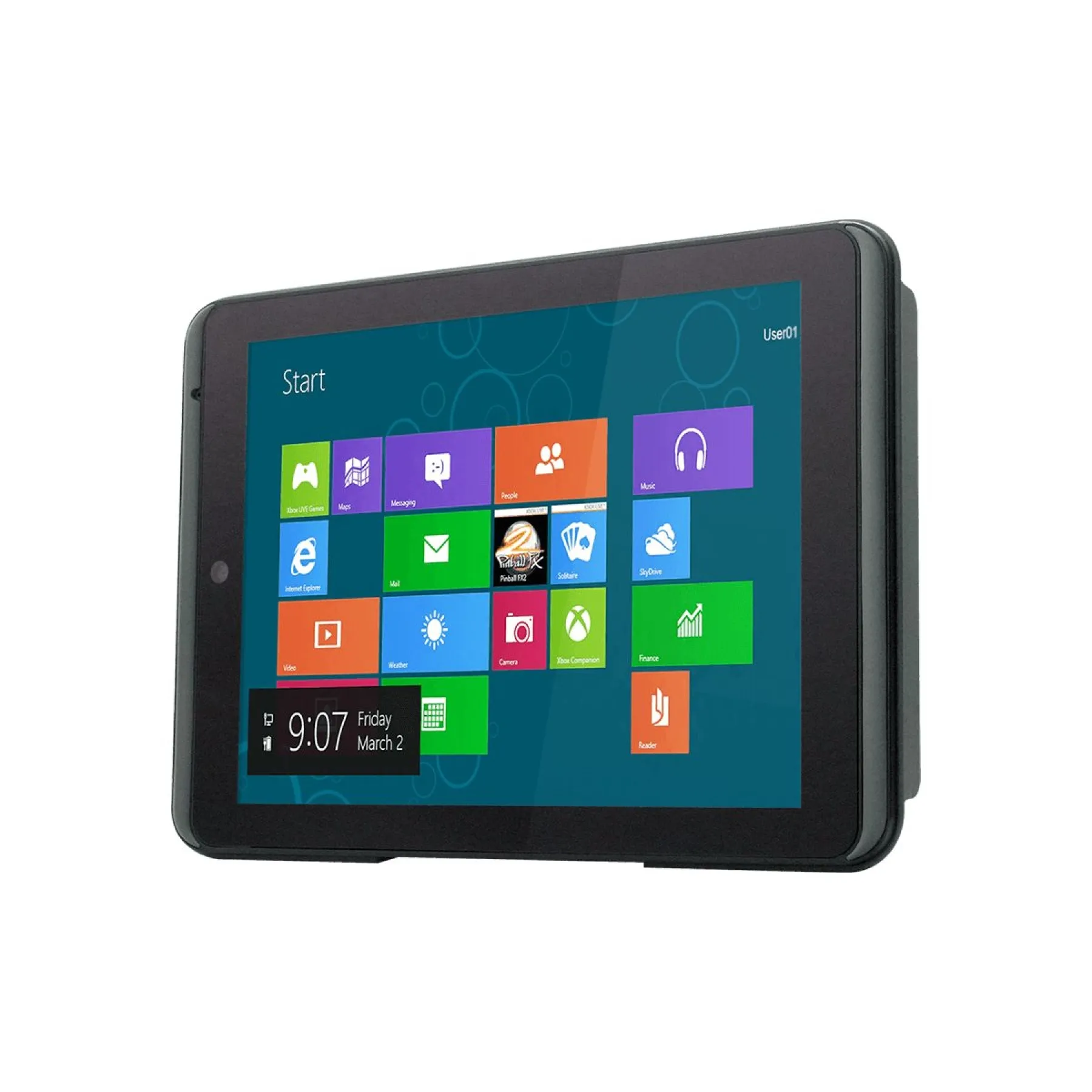

Name: Arbor Technology G0830 Intel Atom 8" Rugged Touch Tablet PC w/ 64GB eMMC Storage
SKU: Gladius G0830

Arbor Technology

Arbor Technology G0830 Intel Atom 8″ Rugged Touch Tablet PC w/ 64GB eMMC Storage

Gladius G0830

Ideal for warehousing / retail / mPOS applications
8” TFT color LCD 1024 x 768 XGA resolution
IPS LED display with Projected Capacitive Multi-touch Panel
High mobility with connectivities including WLAN and Bluetooth
Expansion for storage via microSD slot
Identification devices (barcode scanner, RFID & NFC reader and MSR)

Product Code: Gladius G0830

Categories: Arbor Technology, Mobile Computing, Rugged Tablet PCs

Range: Arbor Technology

Details

The Arbor Technology G0830 is a 8" Rugged Tablet PC powered by Intel Atom x5-Z8350 processor. The G0830 is built with a IPS LED display with projective capacitive multi-touch panel. This tablet is perfect for warehousing/retail/mPOS applications.

Ordering Info

G0830	8” fanless Atom Quad-core tablet PC w/ standard power adapter
G0830-M	8” fanless Atom Quad-core tablet PC w/ Medical-grade power adapter, EN60601-1

Downloads

Arbor Technology G0830 Datasheet (PDF)

0.6MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System	CPU	Intel Atom x5-Z8350 Processor (2M Cache, up to 1.84 GHz)
	Graphics	Intel HD Graphic Chipset
	OS	Android™ v5.X or Windows 10
	Memory	2GB DDR3L / 4GB DDR3L
	Storage	64GB eMMC
	Audio	1 x integrated microphone2 x 0.5W integrated stereo speaker1 x 3.5mm headphone jack
Peripherals and Devices	Camera	Front: 2.0 MP cameraRear: 8.0 MP camera with auto focus
	Sensor	Gyroscope, eCompass, light sensor
	WLAN	IEEE 802.11 a/b/g/n/ac
	Bluetooth	Bluetooth 4.1
	Barcode Scanner	1D/2D Barcode Scanner with physical trigger buttons on right & left sides
	NFC	ISO 14443A/B, ISO15693 (On back cover)
Tablet I/O Interface	USB Port	1 x Micro USB 2.0 port (OTG support)
Tablet I/O Interface	SD Slot	1 x microSD card slot
Cradle I/O Interface	USB Port	3 x USB 2.0 ports (supports USB 3.0 900mA current)
	HDMI	1 x HDMI port (supports high resolution up to 2K)
	LAN	1 x RJ-45 GbE LAN port
	Power	1 x DC Jack
	Docking	Guide pin for fixing
	NFC	ISO 14443A/B, ISO15693 (On back side) (optional)
	MSR	Encryption feature & ISO7811 compliant
	Smart Card Reader	1 x chipset card reader slot
Mechanical & Environmental	Operating Temp.	-10°C ~ 45°C (14°F ~ 113°F)
	Storage Temp.	-20°C ~ 60°C (-4°F ~ 140°F)
	Charging Temp.	0°C ~ 40°C (32°F ~ 104°F)
	Dimensions (WxHxD)	Tablet PC:208.5 x 150.6 x 27 mm (8.21” x 5.93” x 1.06”)Cradle & docking:216 x 264 x 186 mm (8.50” x 10.39” x 7.32”)
	Weight	Tablet: 520g (1.15lb) (with battery)Cradle & docking: 2.54kg (5.60lb)
	IP Rating	IP54
	Drop Resistance	1.2m (4ft.)
	Regulatory	CE, FCC Class B, KCEN60601-1 compliant (for G0830-M only)
LCD Display	Size/Type	8” TFT LCD (4:3)
LCD Display	Resolution	1024 x 768
Touch Screen	Type	10-point Projected Capacitive Touch w/ CorningGorilla Glass
Tablet Battery Consumption	Operating Mode	3.5 hours (continuously playing YouTube video)
Tablet Battery Consumption	Standby Mode	29~33 hours
Power Supply	Battery Type	Lithium-ion rechargeable battery
	Battery Capacity	3.8V, 4000mAh
	Power Adapter	For G0830: AC100-240V, 50-60 Hz, 5V/2.4AFor G0830-M: AC100-240V, 50-60 Hz, 5V/2.4A,Medical gradeFor Cradle: AC100-240V, 50-60 Hz, 12V/5A

Screen Size	1" to 10", 8"
Touch Technology	Projected Capactive
Ingress Protection	IP54
