CH3705

37″ Widescreen Chassis Mount LCD Monitor (1920×1080)

End of Life

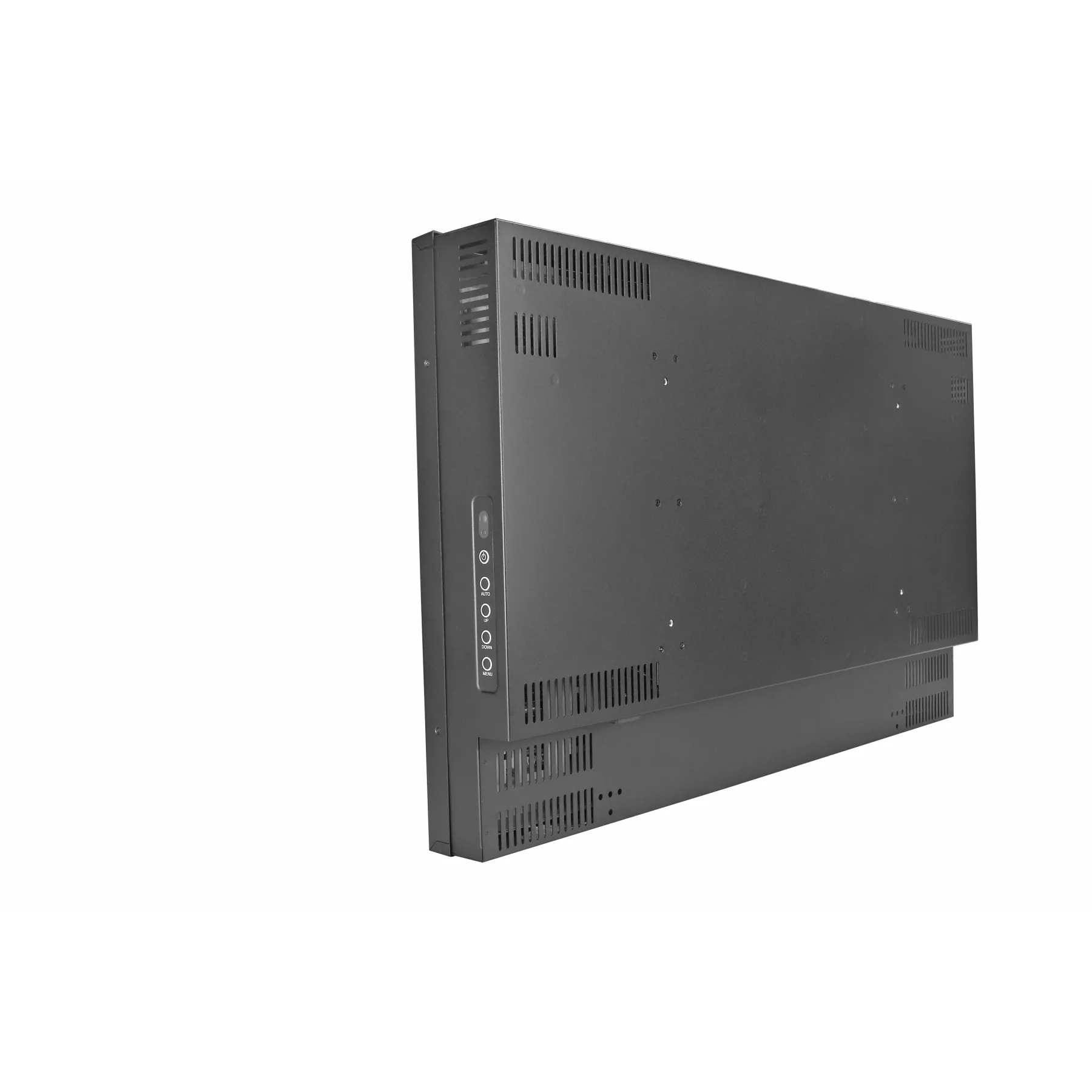

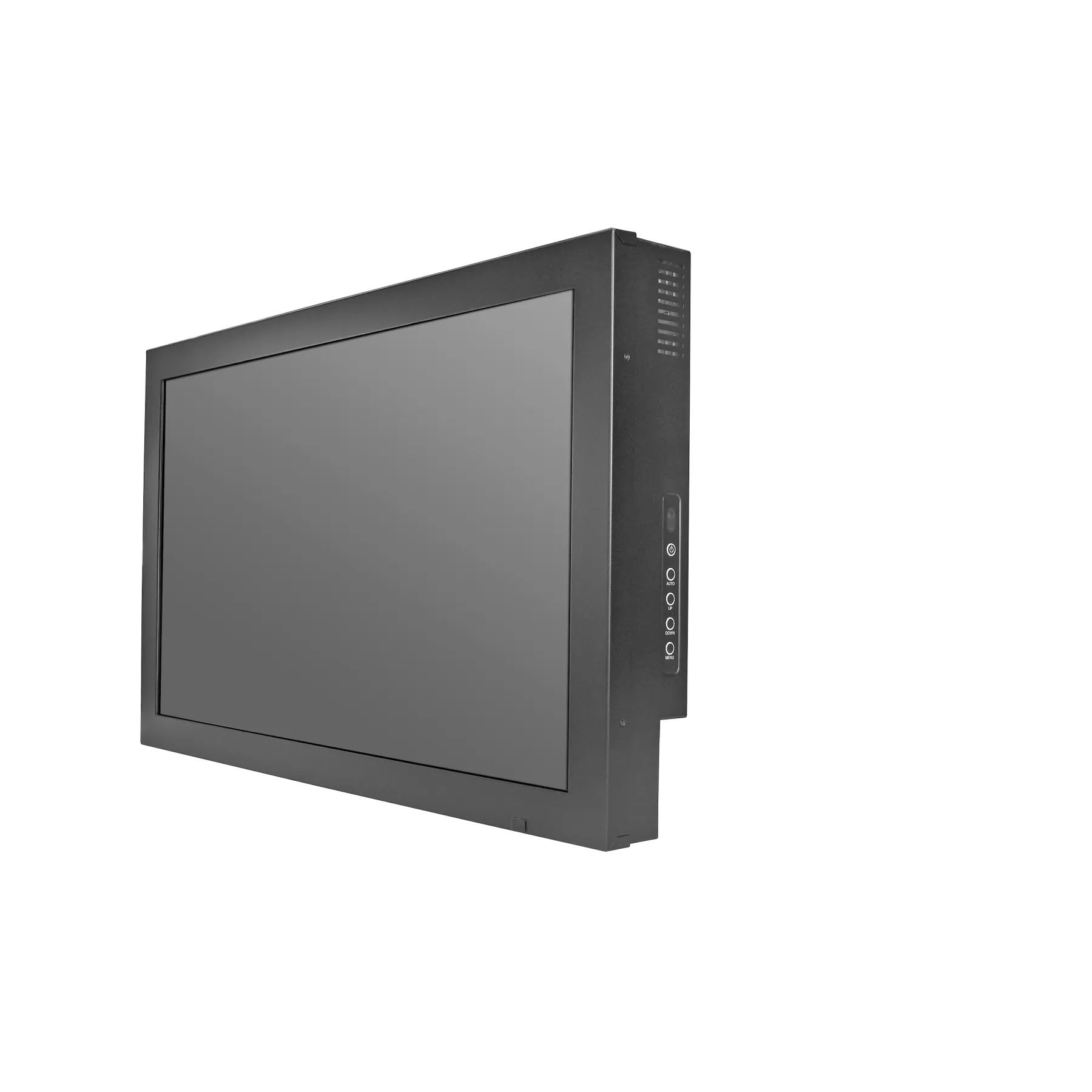

The CH3705 manufactured by Winsonic is a 37" widescreen chassis mount industrial LCD display capable of full HD. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. The product is also available with optional touchscreen and a variety of video inputs

  • Brand: Winsonic
  • 37 inch LED backlit screen
  • 1920 x 1080 widescreen resolution
  • 500 NITS brightness
  • Optional touchscreen
  • S-Video, Composite, HDMI & DVI (On request)
  • Size: 922mm (W) x 560mm (H) x 116mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The CH3705 manufactured by Winsonic is a 37" widescreen chassis mount industrial LCD display capable of full HD. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. The product is also available with optional touchscreen and a variety of video inputs

Ordering Info

  • CH3705: 37″ Widescreen Chassis Mount LCD Monitor with VGA Input

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 37″
  • Resolution: 1920×1080
  • Ratio: 16:9
  • Brightness: 500cd/m
  • Contrast: 2000:1
  • Viewing Angle: H (-89 +89), V (-89 +89)
  • Bezel: Powder Coated Steel
  • Backlight: CCFL
  • VGA: 1 x DB15
  • Video Inputs: S-Video, Composite, HDMI & DVI (On request)
  • Touchscreen: Optional
  • Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
Screen Size 31" to 40", 37"
