CH1505S

15″ Chassis Mount Touchscreen Monitor with LED B/L (1024×768)

End of Life

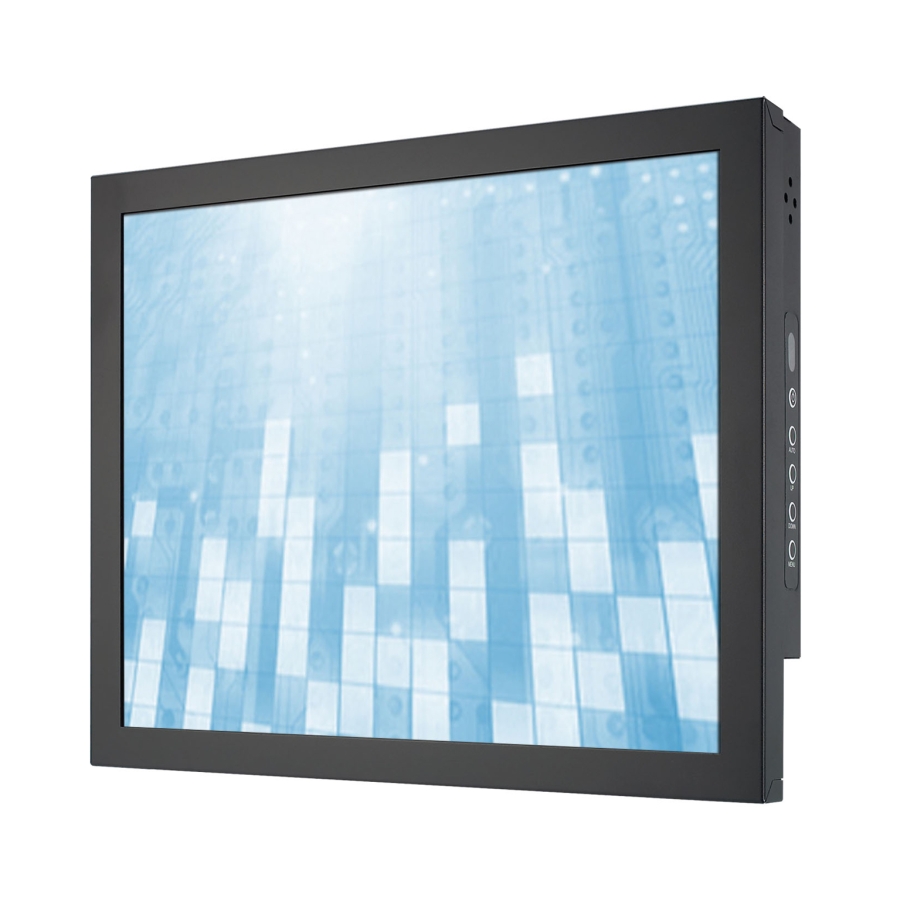

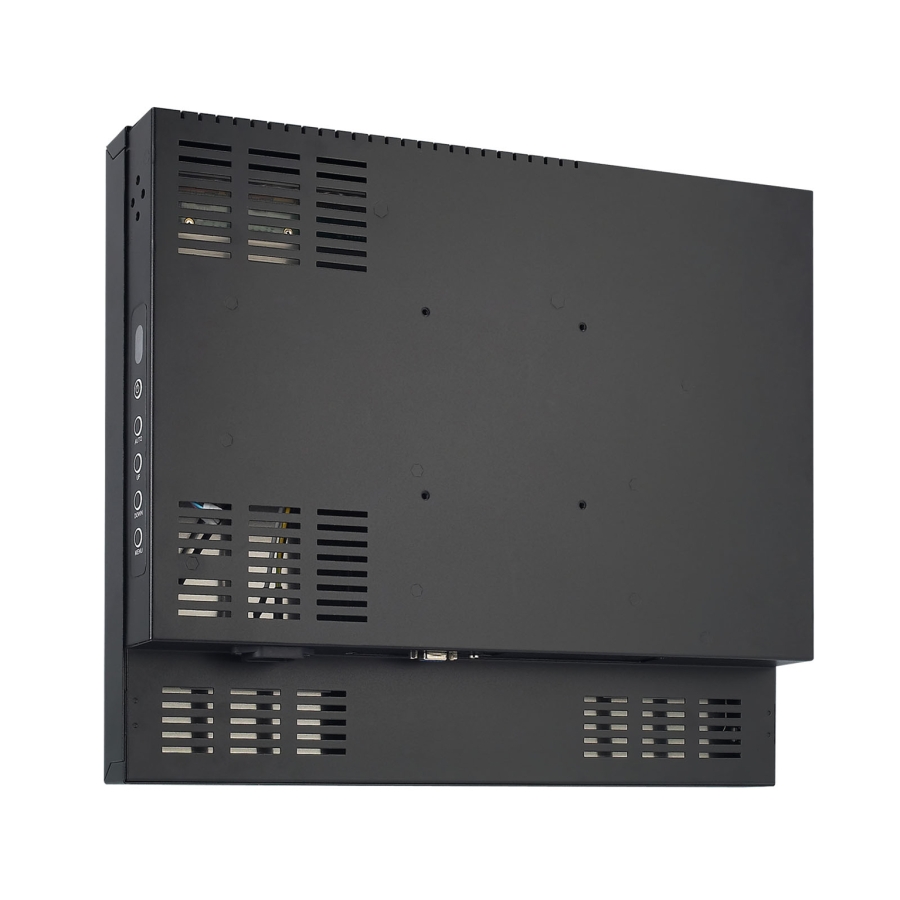

The CH1505S manufactured by Winsonic is a 15" chassis mount industrial LCD display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with optional touchscreen and a variety of video inputs.

  • Brand: Winsonic
  • 15 inch LED backlit screen
  • 1024 x 768 resolution
  • 350 NITS brightness
  • Resistive, Capacitive, SAW or Infrared touch options
  • Variety of video inputs
  • Size: 347mm (W) x 272mm (H) x 59mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The CH1505S manufactured by Winsonic is a 15" chassis mount industrial Touchscreen display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with Resistive, Capacitive, SAW or Infrared touch options and a variety of video inputs.

Ordering Info

  • CH1505S: 15″ Chassis Mount LCD Touchscreen Monitor with VGA Input

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 15″
  • Resolution: 1024×768
  • Ratio: 4:3
  • Brightness: 350cd/m
  • Contrast: 700:1
  • Viewing Angle: H (-70 +70), V (-60 +65)
  • Bezel: Powder Coated Steel
  • Backlight: LED
  • VGA: 1 x DB15
  • Video Inputs: S-Video, Composite, HDMI & DVI (On request)
  • Touchscreen: Resistive, Capacitive, SAW or Infrared touch options
  • Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
Screen Size 11" to 20", 15"
