SC750N1-L

Yuan SC750N1-L HDMI 2.1 1 Ch 8K 60FPS 4K 120FPS PCIe Video Capture Card

SC750N1-L

  • Model Name: SC750N1 HDMI 2.1
  • Max Input Resolution: 7680×4320p@60/50fps
  • Video Input: 1 x HDMI 2.1

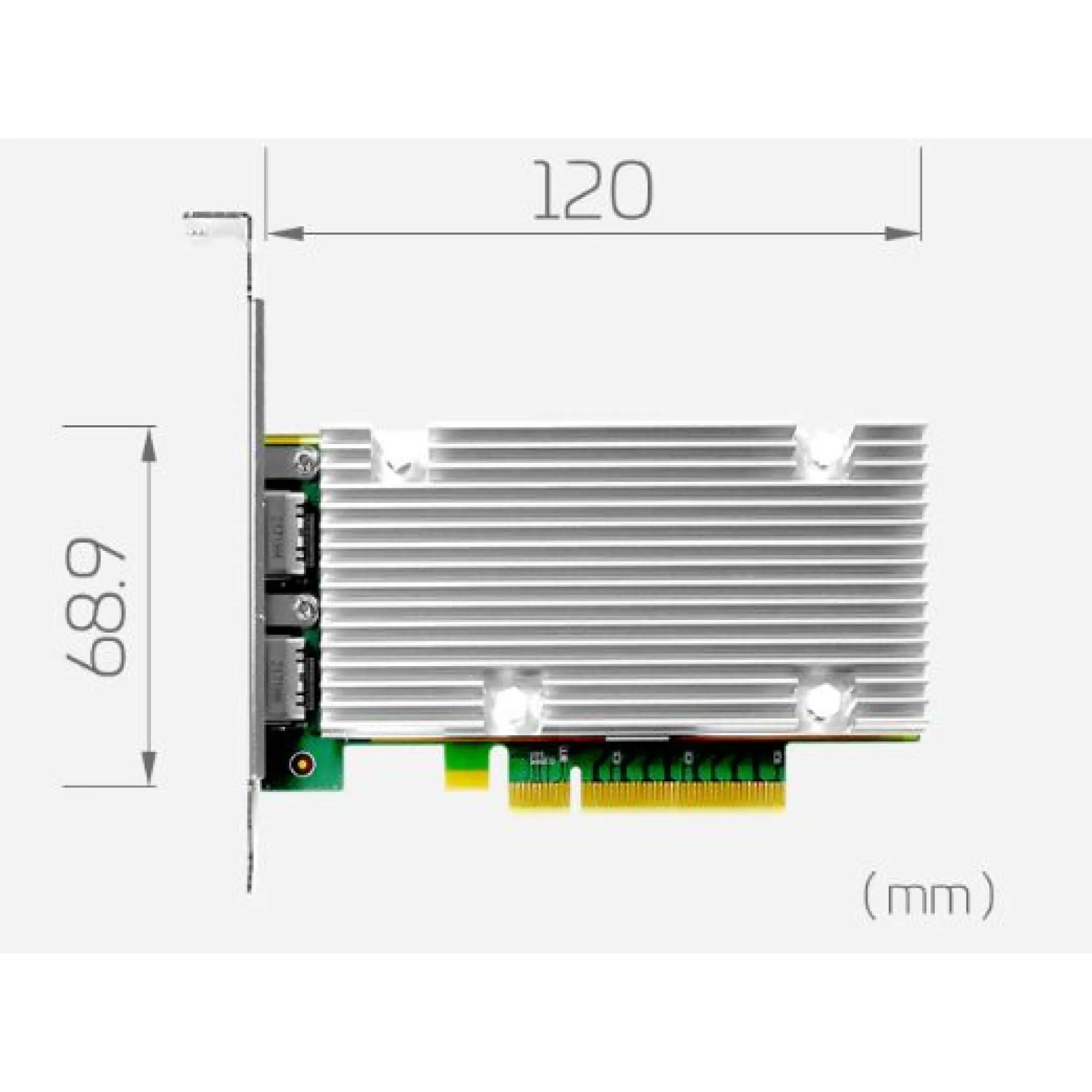

  • Dimension: 120 × 68.9 (mm)
  • Interface: PCIe x 8 (Gen 3)
  • Feature: Multi Instances, Multi Devices
-
+

Details

The YUAN SC750N1 HDMI 2.1 is a 1-Channel PCIe Video Capture Card. With dimensions of 120 × 68.9 (mm) the SC750N1 HDMI 2.1 contains 1x HDMI 2.1 video input.

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model Name SC750N1-L HDMI2.1
Max. Input Resolution 7680×4320p@60/50fps
Video Input 1×HDMI2.1
Dimension 120×68.9 ( mm )PCIe Low Profile
Interface PCIe×8 ( Gen3 )
Feature Multi InstancesMulti Devices
Video Input Detail HDMI 2.1
Video Output 1×HDMI 2.1( Loop-Through )
Colour Format Capture/Preview :4:4:4 8Bit RGB244:4:4 8Bit RGB324:2:2 8Bit YUY24:2:0 8Bit YV12, NV124:2:0 10Bit P010
Build-in Hardware Encode N/A
Video Processing Video Cropping and ScalingAuto Signal DetectionDeinterlace EngineMulti Instances
Video Resolutions 7680×4320p@60/50/30/25/24fps4096×2160@120/60/50/30/25/24fps3840×2160@120/60/50/30/25/24fps2560×1440p@144fps1920×1080p@240/144/120/100fps1920×1080p@60/50fps1920×1080p@30/25/24fps1920×1080i@60/50fps1280×720p@60/50fps1280×1024p@60fps1280×960p@60fps1024×768p@60fps800×600p@60fps640×480p@60fps720×480p@60fps720×576p@50fps720×480i@60fps720×576i@50fps✻ More resolution supported by SDK
Audio Input 1×Stereo Embedded Audio
Audio Format Stereo/16-bit/32000~48000Hz
Supported Software Applications vMixOBSZOOMSkypeTeamsDiscordSlackCisco WebexGoToMeeting✻ DirectShow/V4L2 Compatable Software Supported
SDK Windows and Linux SDK
OS Support Windows 7/Windows 8/Windows 8.1/Windows 10Linux 4.8 or Higher ( 32-bit and 64-bit )Linux ARMnVIDIA Jetson TX2, NANO, AGX Xavier, Xavier NX
