IPM4204-WH35L0

42″ Widescreen IP65 Panel Mount Display Wide Viewing Angle (1920×1080)

IPM4204-WH35L0

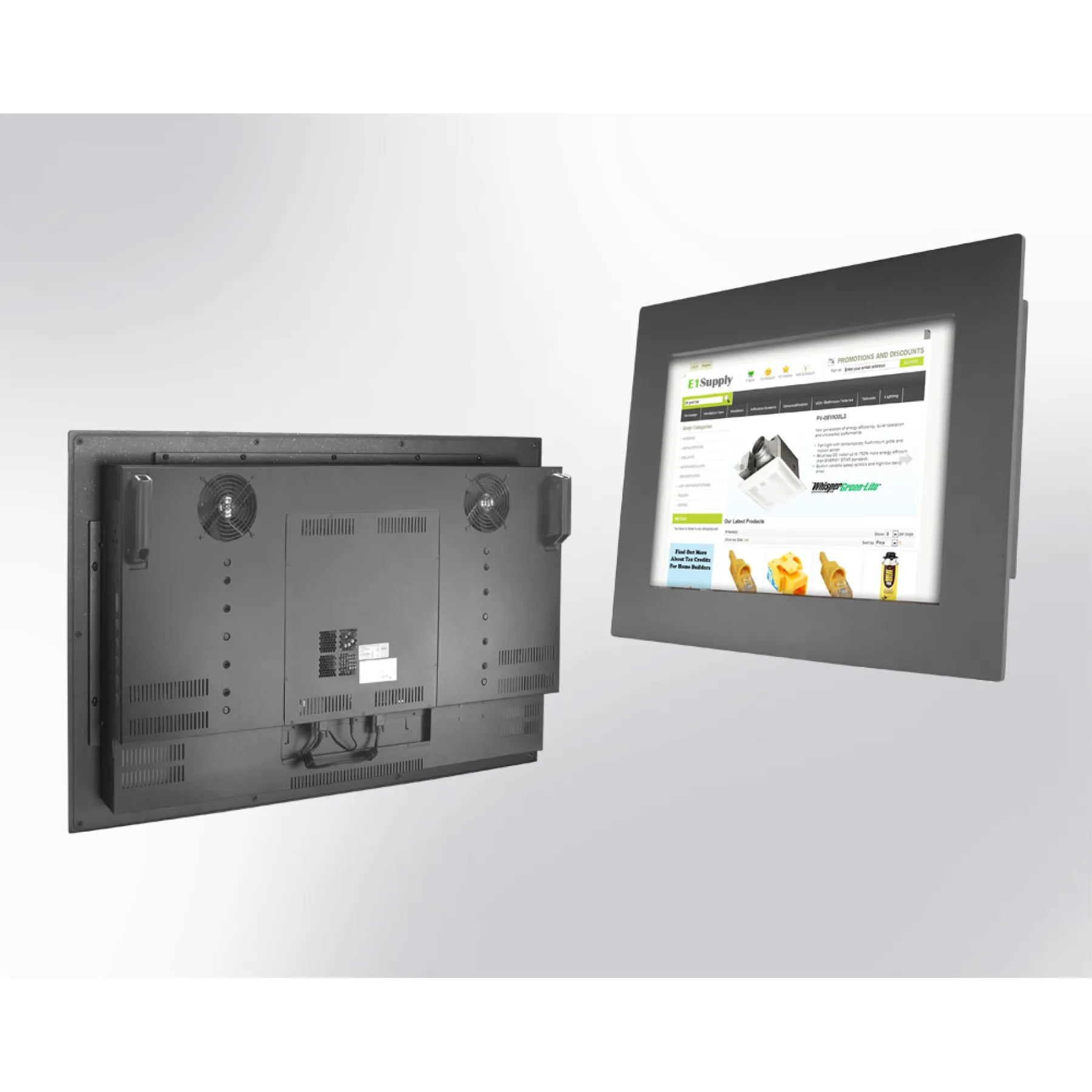

The IPM4204 from manufacturer Winsonic is a 42" Widescreen IP65 rated industrial front panel mount monitor with wide viewing angles. Designed with a gasket seal embedded into a robust steel bezel that when fitted into an aperture/panel creates a tight waterproof and dustproof seal; ideal for harsh working environments. The IPM4204 has built-in fans to improve system cooling which allows up to 24-hours-a-days usage.

  • Brand: Winsonic
  • Ideal for harsh environments
  • 350 NITS brightness
  • 1920 x 1080 resolution
  • Wide Viewing Angle 178° / 178°
  • Size: 1115mm (W) x 710mm (H) x 167mm (D)
-
+

Details

The IPM4204-WH35L0 manufactured by Winsonic is a 42 inch panel mount LCD monitor with IP65 front panel protection against liquid and dust ingress and a widescreen ratio of 1920x1080. The screen offers a wide viewing angle of 178° / 178°, long term stable supply with a solid design that allows simple integration into a variety of applications.

The modularized mechanical design of the IPM4204-WH35L0 allows for flexible configuration so you can add optional touchscreen and a variety of video inputs. Standard features include an LCD backlit screen with an anti glare, low reflection coating, 350 NITS brightness, 1 x VGA, 1 x HDMI and 1 x DVI display connectors.

Ordering Info

  • IPM4204-WH35L0 – 42″ Widescreen IP65 Panel Mount Industrial LCD Monitor with 1920×1080 HD Resolution and wide viewing angles.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 42″
  • Resolution: 1920×1080
  • Ratio: 16:9
  • Brightness: 500cd/m
  • Contrast: 1500:1
  • Viewing Angle: H 178° (-89 +89), V 178° (-89 +89)
  • Bezel: Powder Coated Steel
  • Backlight: LCD
  • VGA: 1 x VGA, 1 x HDMI, 1 x DVI
  • Touchscreen: Optional
  • Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
Screen Size 41" to 50", 42"
Touch Technology Infrared, Projected Capactive, Resistive
Ingress Protection IP65
Brightness 350nit, Standard
