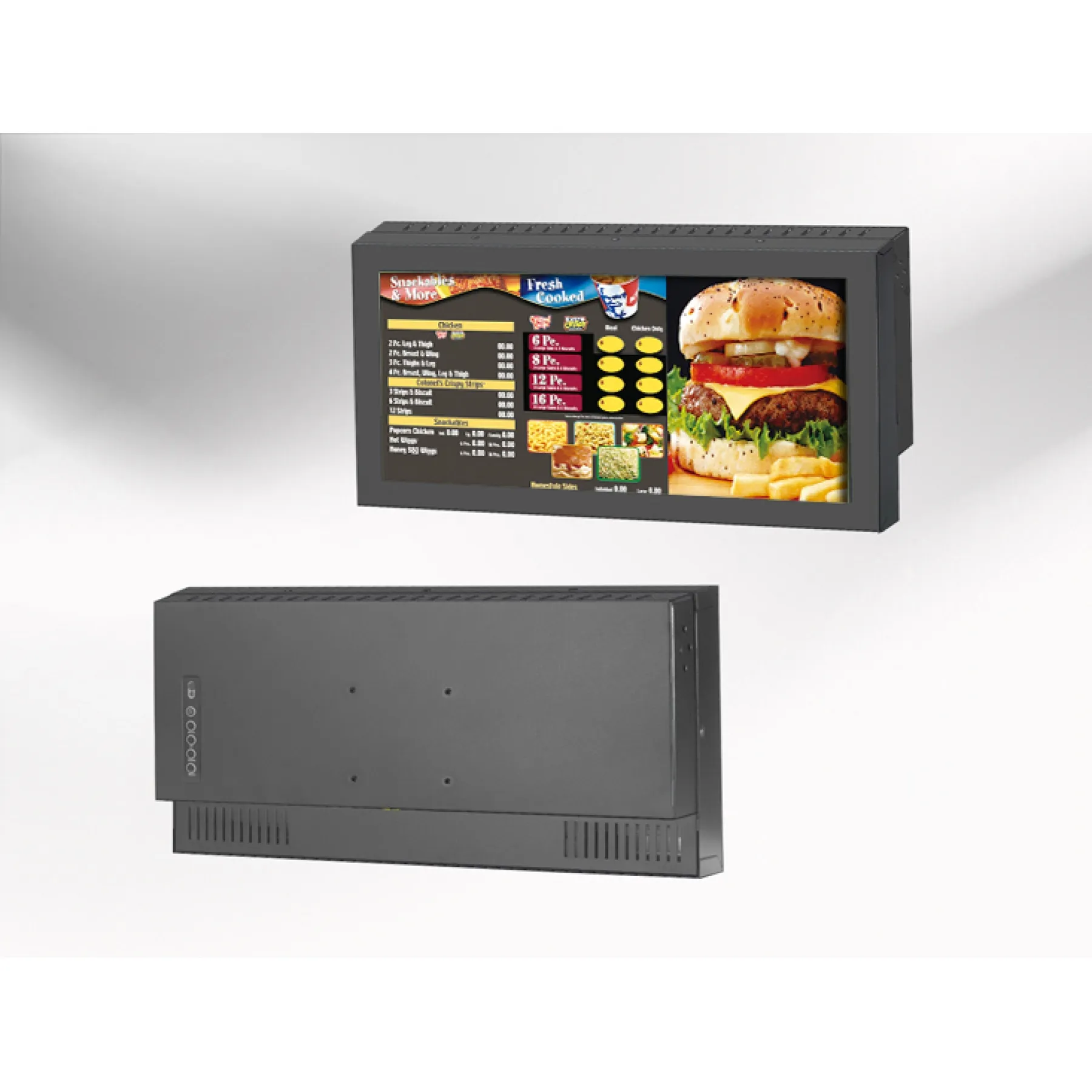

Winsonic 12.3″ Stretched Display with 700 NITS Brightness (1920 x 720)
CHX1237-X270L0
- Brand: Winsonic
- High brightness 700 NITS
- 1920 x 720 resolution
- Size: TBD
CHX1237-X270L0
Commercial Monitors, Specialist Displays, Stretched Bar LCD Display Monitors, Winsonic
Details
The CHX1237-X270L0 from Winsonic is a chassis mount,12 inch, high bright, stretched display with a resolution of 1920 x 720. This panel has an active viewing area of 292.32mm x 109.62mm, making it perfect for digital signage installations, point of sale and self service applications. The display has a brightness of 700 NITS and a viewing angle of H. 160° x 160°. Input terminals include 1 x VGA, 1 x stereo headphone jack and a DC power input.Ordering Info
| CHX1237-X270L0 | 12.3″ Stretched Display with 700 NITS Brightness (1920 x 720) |
Downloads
Assured Systems Datasheet (PDF)
A PDF edition of this page with supporting manufacturer datasheets
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Size | 12.3″ viewable diagonal area |
| Active Area / Pixel Pitch | 292.32(H)×109.62(V) mm / 0.05075(H)×RGBx0.15225(V) mm |
| Native Resolution / Colors | 1920(H) x 720(V) / 16.7 Million |
| Brightness / Contrast | 700 cd/m (typ) / 1000 : 1 |
| Response Time | ≦ 12 ms |
| Viewing Angle (typical) | H. 160o (- 80o ~ + 80o) , V. 160o(- 80o ~ + 80o) |
| Light Source | LED, Long life, 35,000 hrs (typ) |
| Audio System | 3W speaker x 2 |
| Input Terminals | 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug |
| Features | Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) OSD Multi-Languages , Wall Mount Ready (VESA 75 x 75 mm) |
| Power | External AC-to-12VDC power adapter with universal / Auto-Sensing, AC 90 to 260V, 50 / 60 Hz |
| Power Consumption | 20 watt , < 2 watt (Support DPMS) |
| Operating Temperature / Humidity | 0oC ~ 50oC (32oF ~ 122oF) , 10% ~ 90% (no condensation) |
| Storage Temp/Humidity | – 20oC ~ 60oC (- 4oF ~ 140oF) , 10% ~ 90% (no condensation) |
| Certification | FCC , CE |
| Video Ports | >>> 1 Port |
|---|---|
| Screen Size | 11" to 20", 12.3" |
| Touch Technology | Infrared, Projected Capactive, Resistive |
| Brightness | 700nit, Standard |
