W24IH3S-MLS1-89

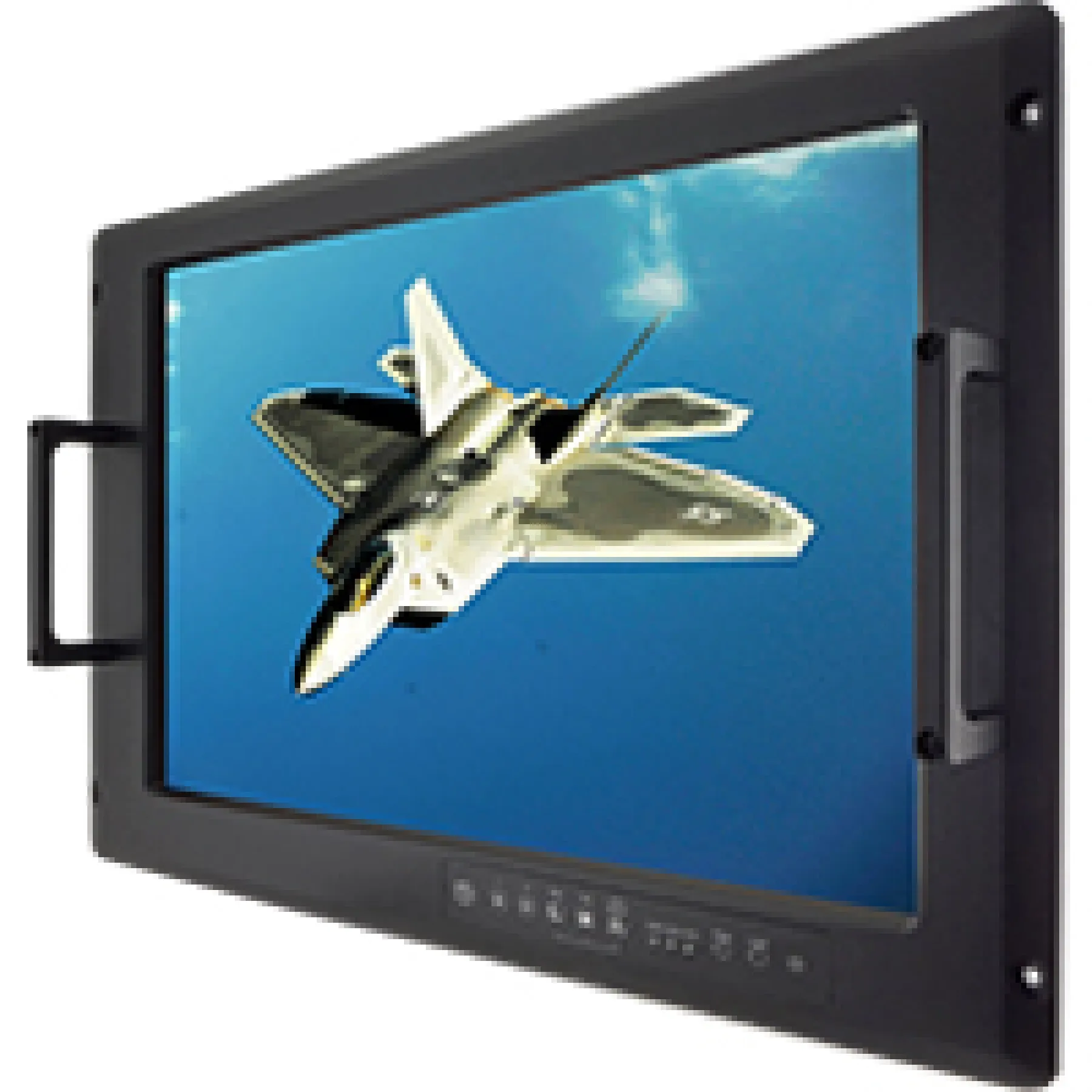

Winmate W24IH3S-MLS1-89 24″ Intel Core i7-4650U Military Panel PC, 1920×1200

W24IH3S-MLS1-89

  • 24″ 1920×1200 High Resolution TFT-LCD
  • Intel Core i7 4650U 3.30GHz Processor
  • Anti-Corrosion Housing / Fanless
  • Compliant with MIL-STD-810F/G
  • Flush Rack / Rack Mount Mechanical Design (9U)
  • Convenient On-Screen Display Controls
  • AC 110~240V Power input default
  • Isolation DC 9~36V Power input (Optional)
  • Built-in light Sensor for auto brightness control
  • Military Grade Power Connector (MIL-DTL-38999/1 & 38999/3)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The Winmate W24IH3S-MLS1-89 is a 24" Panel PC with Anti-Corrosion Housing and a Rack Mount Mechanical Design. This Panel PC has convenient On-Screen Display Controls alongside a Built-In Light sensor for auto brightness control.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Resistive
Brightness 300nit, Standard
Resolution 1920x1200, Special/Other
GPU Integrated GPU
Memory Capacity Up to 4GB
Cooling Type Fanless, Yes
Serial Ports (COM) 1 Port, RS-232
USB Ports 1 Port, USB 2.0
Ethernet Ports (LAN) 1x 1G
Video Ports 1x VGA
Storage Type 1, mSATA
Expansion Type 1, Any Expansion Type, Mini PCI Express
Input Voltage 110-240 VAC, 9-36 VDC
Mounting Options VESA-mount
Operating Temperature 0°C to 50°C, Standard
Certifications CE/FCC, MIL-STD
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro, Windows 7, Windows 8, Windows 8.1
