S101M9

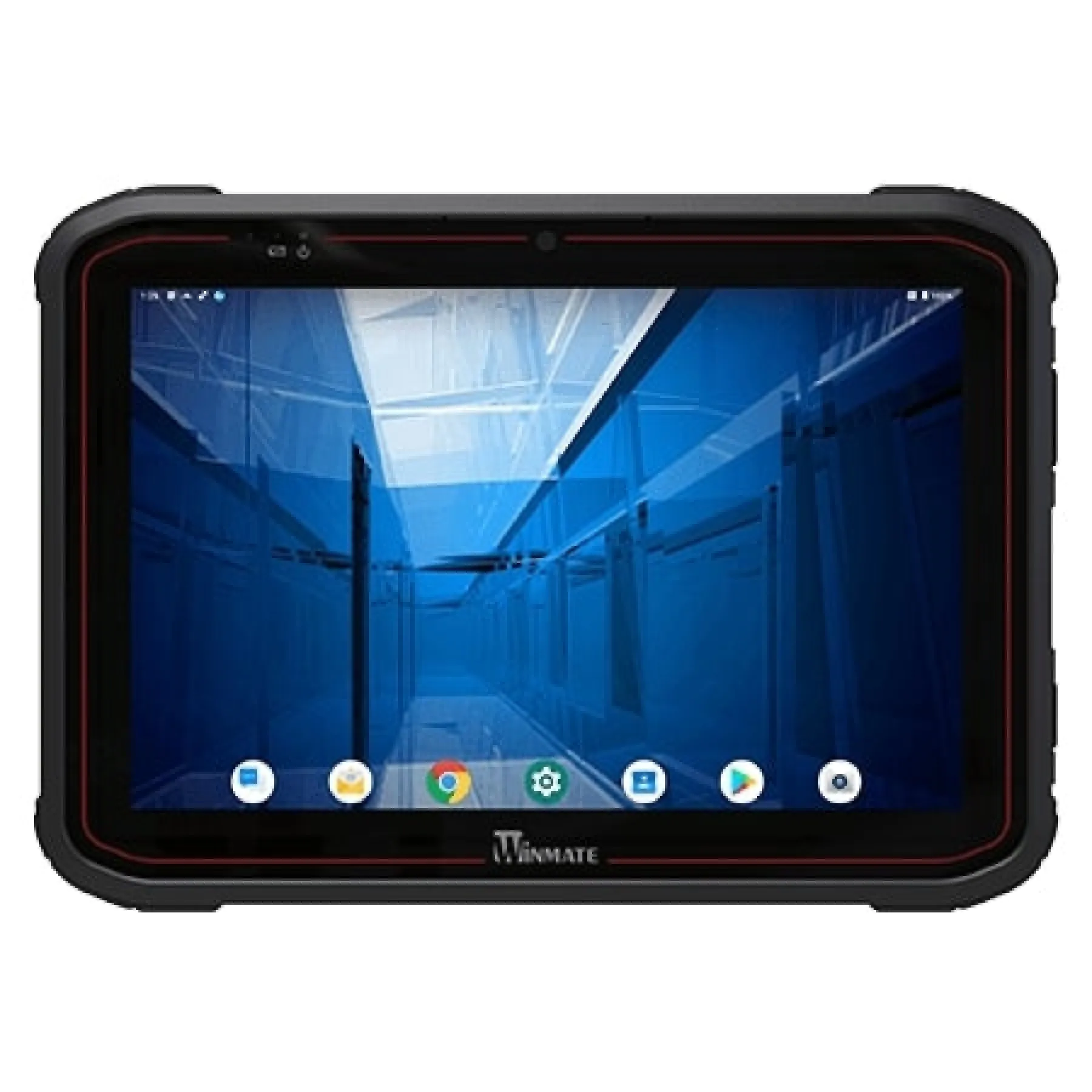

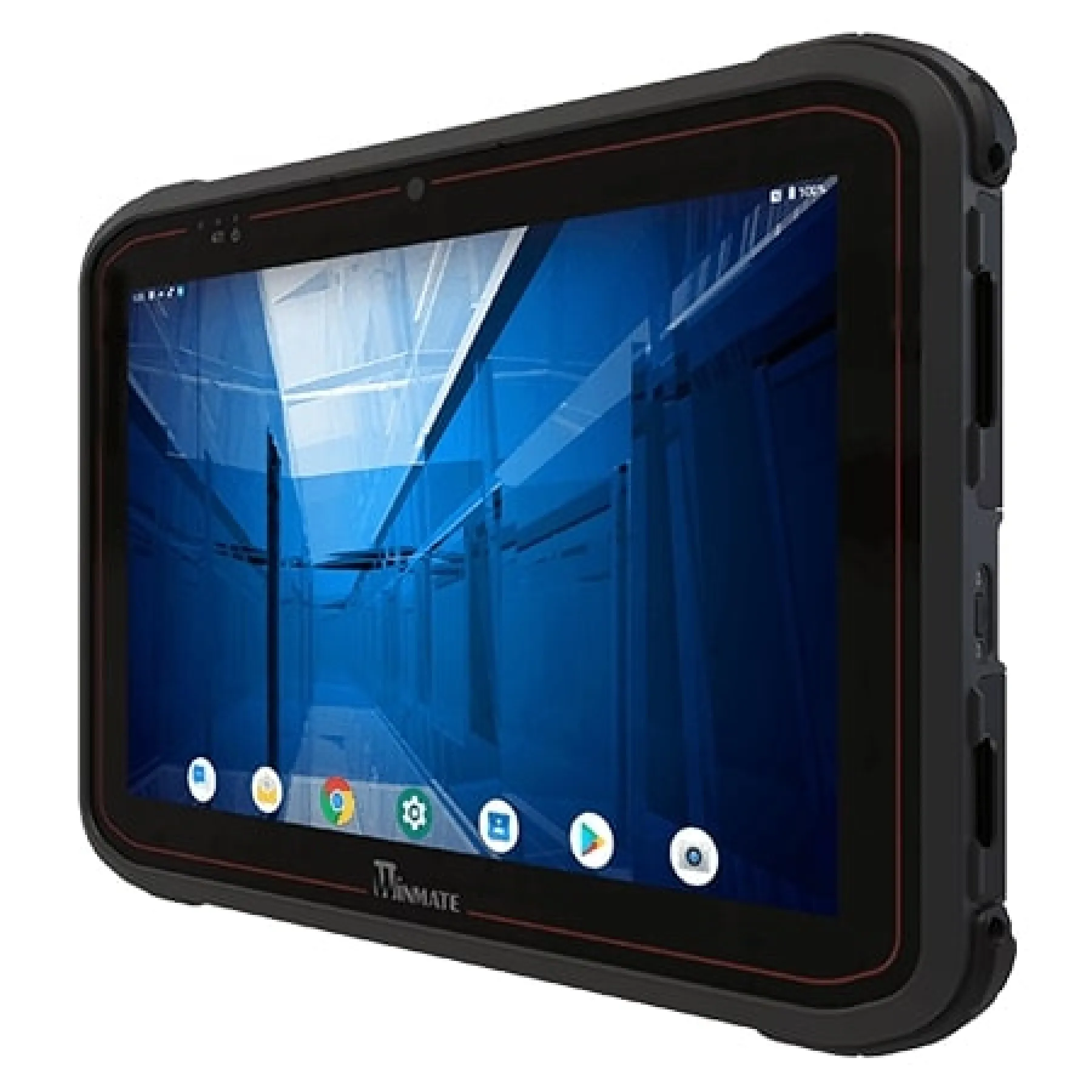

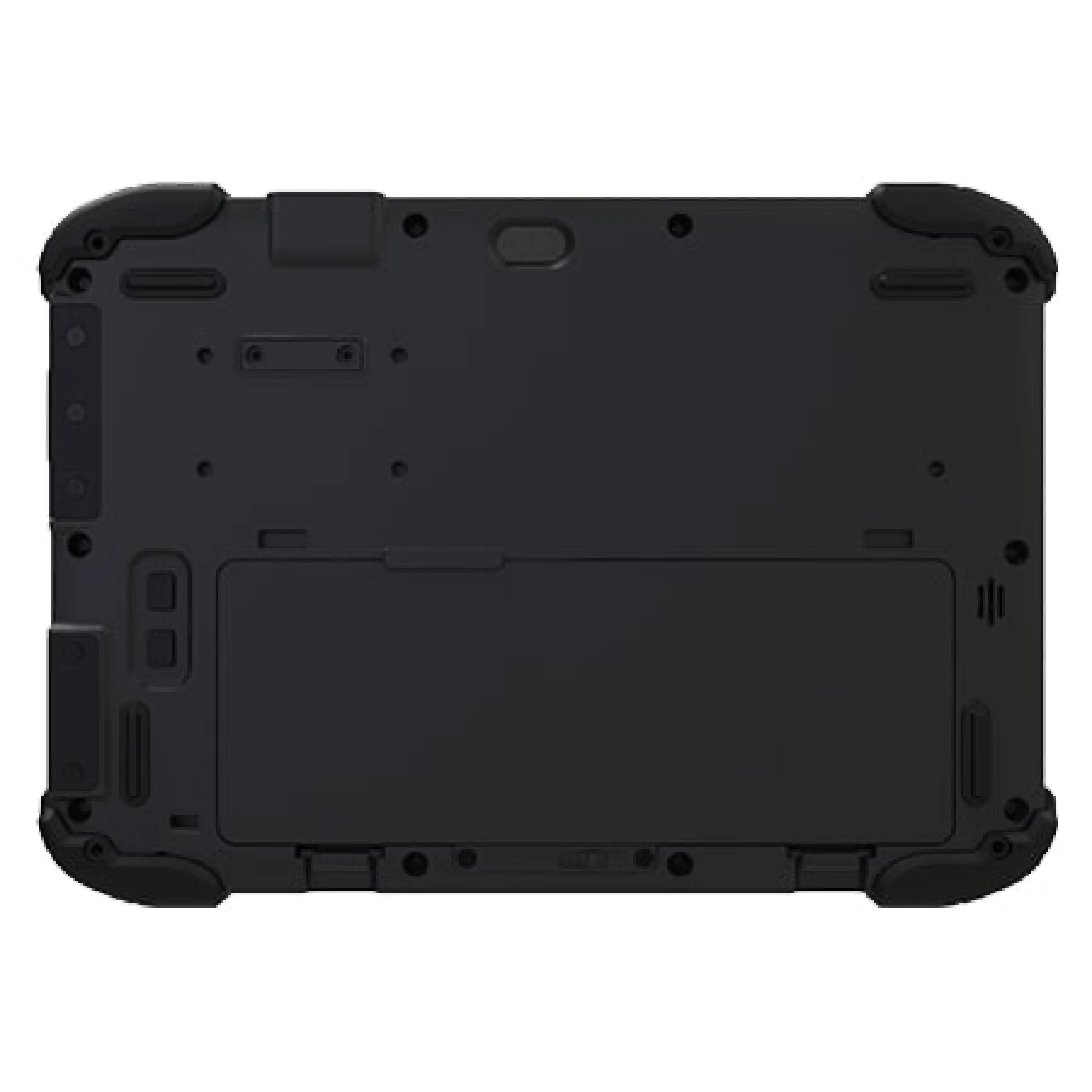

Winmate S101M9 10.1″ ARM A73/A53 Industrial Android Durable Tablet

S101M9

  • 10.1” 1920x 1200 TFT LCD Display, industrial android durable tablet
  • 8.0 MP Camera in Front Side
  • 13.0 MP Rear Camera (with LED auxiliary light, Auto Focus)
  • 4 GB RAM + 32 GB eMMC
  • Android™ 11.0
  • Integrated 1D/2D Barcode Reader (Optional)
  • Integrated NFC Module (Optional)
-
+

Details

The best lightest tablet with WXGA display

If you are looking for a pragmatic and mighty tablet, you shouldn’t argue with the fact that the lightest tablet has its benefits.

Real-time Data Connectivity

Real-time data access to the right information is very important to mobile users. S101M9 android series offers GPS, WLAN, BT and optional 4G LTE which enable users to get connect in the way that best suits their needs. With the built-in camera on the rear side, users can capture photos, videos, documents instantly; or utilize the front camera for application such as user self video recording, or video communication.

Brilliant 10.1" Display with Ultimate Touch Capability

The 10.1" S101 series features projected capacitive (PCAP) multi-touch for the best user experience and allows switching windows, taking snapshots, zooming in, and rotating objects easily to take the full advantages of the touch interface. Supports Rain, Glove, Stylus modes.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 800nit, Standard
Resolution 1920x1200, Special/Other
Memory Capacity Up to 4GB
USB Ports 1 Port, 1 Port, 2 Ports, USB Type-A, USB Type-C
Ethernet Ports (LAN) 1x 1G
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x HDMI
Storage Type 1 Port, Micro SD
Input Voltage 19 VDC
Operating Temperature -20°C to 60°C, Wide
Certifications CE/FCC, MIL-STD
