R10L210-MRM2

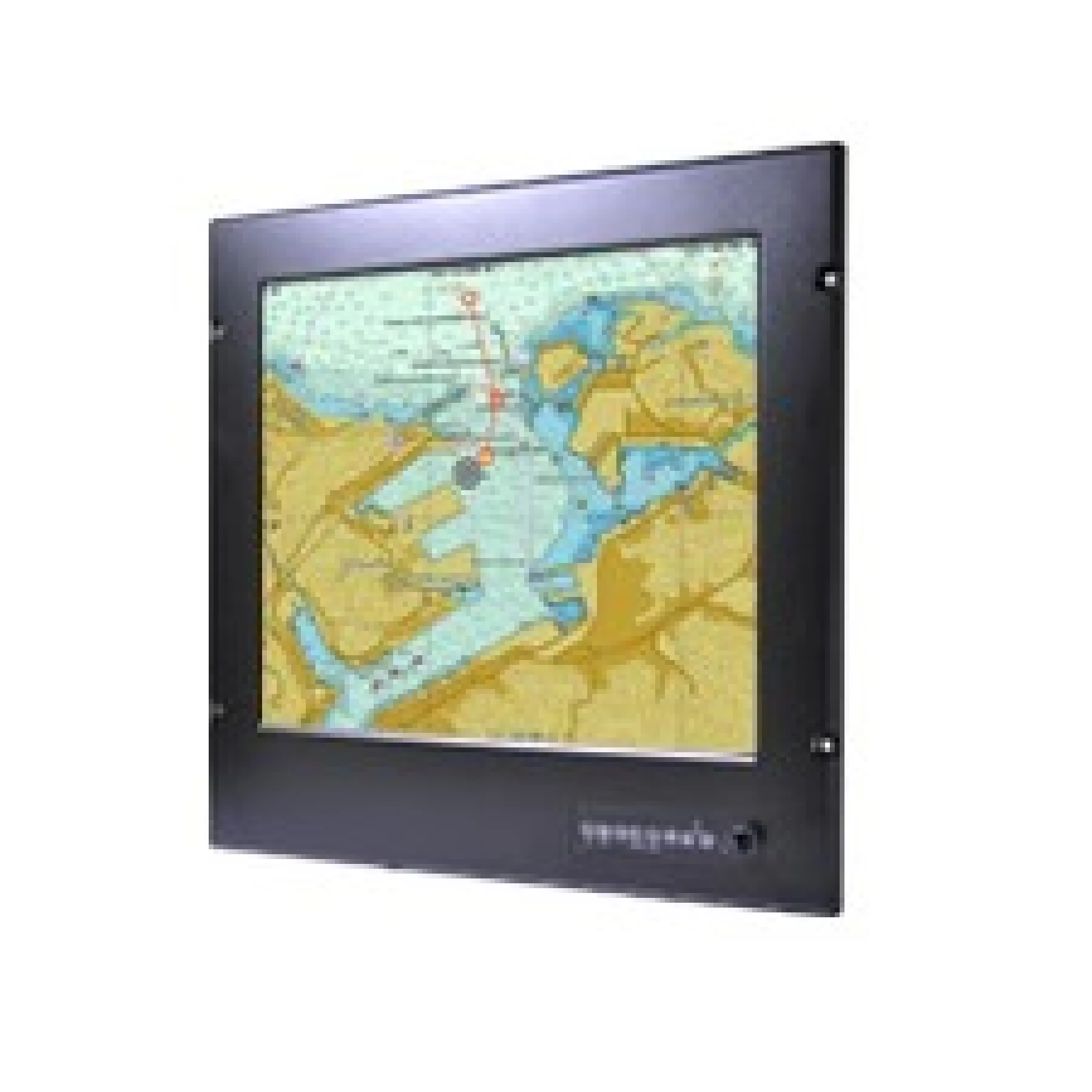

Winmate R10L210-MRM2 10.4″ Marine Bridge System Touch Display w/ IP66 Protection

R10L210-MRM2

  • Dimming knob control backlight brightness from nearly 0% to 100%
  • Transflective film technology enhance visibility
  • Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
  • 24V DC power input acceptable
  • High quality touchscreen / AR protection glass for option
  • PIP(picture in picture) function and multi-video inputs
  • Ease of use front panel OSD control
  • Enhanced shock and vibration resistance
-
+

Details

The Winmate R10L210-MRM2 is a 10.4" Marine Bridge System Display. This fanless display features a dimming knob to control backlight brightness from nearly 0% to 100% alongside a high quality touchscreen.

Ordering Info

  • Please call our technical sales team on 01785 87 90 50 for advice.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Size

10.4″
Resolution 800 x 600
Pixel Pitch (RGB) 0.264 (H) x 0.264 (V)
Contrast Ratio 500:1 (typ.)
Panel Brightness 400 (typ.)
Viewing Angle -80~80 (H); -60~80 (V)
Active Display Area 211.2 (H) x 158.4 (V)
Max Colors 16.2M (8bits/ color)

Viewing Angle

-70~70(H);-60~50(V)
Max Colors 16.7M

RGB Signal

D-SUB 15P connector(female)
Composite Video RCA phono plug
S-Video Signal S-Video (SVHS) plug
DVI-D Signal DVI-D input 24-pin connector
DC Power Signal Screw terminal block
AC Power Signal (Optional) Std. IEC inlet
Touch Screen D-SUB 9P connector (female)
Remote control via RS-232 D-SUB 9P connector (female)

Power Control

Power On/Off via Front Button
VR Control VR Brightness Knob Control
Display Control On Screen Display control(OSD)
OSD Remote Control OSD Remote Control via RS-232
LED indicators Power Mode Status LED

Power Supply Options

24 V DC power supply with terminal block.(Isolated Power module)
Power Consumption 21 W typical, normal operation

Net Weight (kg) (with touch)

1.3
Operating Temperature -15 ~ +55°C
Operating Humidity 5% to 95% (non-condensing)
Anti-Vibration 5Hz~500Hz /1Grms /3 Axis
Anti Shock 15G, 11ms duration

Mechanical Options

Panel (Flush) mount with IP66 (SAW touch for IP54)
Touch Screen Options SAW, 5 Wire Resistive
AR Safety Glass Option 3mm Anti-reflective protection glass
VESA Mounting Yes
Bracket mount Yes(Bracket Stand for option)
Transflective Yes

Certification and Approvals

DNV2.4,IEC60945,IACS-E10,CE,FCC
Screen Size 1" to 10", 10.4"
Touch Technology Resistive
Ingress Protection IP66
Brightness 600nit, Standard
