R08IWK8M-RTU1ML

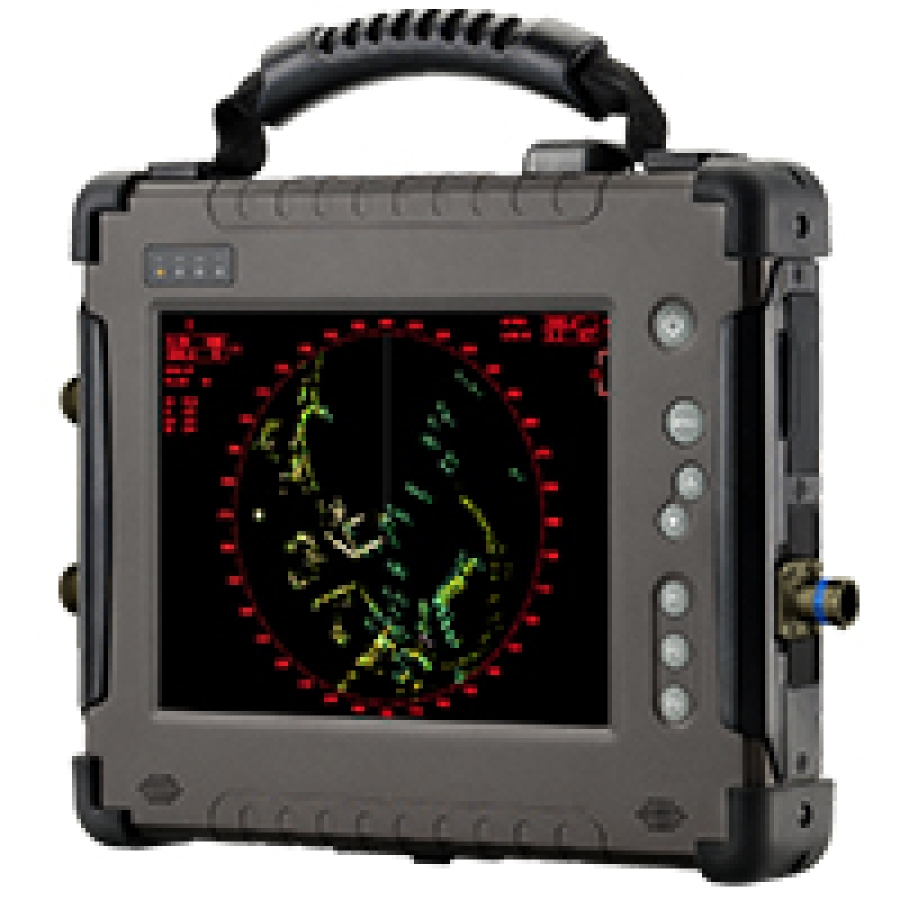

Winmate R08IWK8M-RTU1ML 8.4″ 5th Gen Intel Core Military Rugged Tablet w/ Touch

End of Life

  • Intel Core i5-8265U Whiskey Lake processor,1.6 GHz (Turbo up to 3.90 GHz)
  • 8.4″ 800 x 600 Transflective TFT-LCD Panel
  • 600 nits optical bonded, sunlight readable screen
  • Ecological seals protect ports as well as connectors from moisture and dust
  • Adjustable Kickstand convertable to handle
  • Magnesium Alloy Housing with All-Around Elastomeric Rubber
  • MIL-STD-38999 connector for LAN/USB2.0, RS232/RS422 and DC Power Input

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Winmate R08IWK8M-RTU1ML is an 8.4-inch ultra-rugged tablet with a robust set of features designed to handle the toughest tasks while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel's 8th generation Core i5-8265U Whiskey Lake in a magnesium aluminum housing with protective rubber for military standard ruggedness. The R08IWK8M-RTU1ML is a no-nonsense, field ready ultra-rugged tablet that can act as a powerful workstation in an easy to use package.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Size

8.4″
Brightness 600 nits
Resolution 800 x 600
Contrast Ratio 25.00069444
Touch Resistive touch
Viewing Angle 75/75/60/70

Processor

Intel® Core i5-8265U Whiskey Lake, 1.6 GHz (Turbo up to 3.90 GHz)
Memory 4GB SODIMM DDR4-2400 (up to 16GB)
Storage 1 x 128GB M.2 SSD (up to 512GB);Optional M.2 SSD (up to 512GB)

WLAN

802.11 a/b/g/n/ac
WWAN Optional 4G/ LTE or 3G
GPS u-Blox Neo-M8N, supports GPS (Optional GLONASS, Galileo, BeiDou)

Audio

2 x 1 Watt Speaker
External I/O 2 x USB 3.0, 1 x Micro SD Card Slot, 1 x Micro SIM Card Slot, MIL-STD-38999 connector: 1 x DC input; 1 x LAN/USB2.0; 1 x RS232/RS422

Control Button

1 x Power, 1 x Menu, 3 x Function key, 2 x Brightness control key
LED indicator Power, Battery, HDD, RF

Dimensions (W x L x H)

266 x 222 x 50mm
Net Weight (kg) 2.39kg
Operating Temperature -20°C to 60°C (AC Mode), -10°C to 50°C (Battery Mode )
IP Proof IP54
Operating Humidity 10 % ~ 90% (non condensing)
Certifications CE, FCC
Shock MIL-STD-810G Method 516.6 Procedure I
Vibration MIL-STD-810G Method 514.6 Procedure I
Drop MIL-STD-810G Method 516.6, 4 ft to concrete

Power Input

9-36V DC in
Power Consumption 15W
Battery 11.1V, 5200 mAh Lithium-Ion Battery (6cells)
Adapter 100-240V, 50-60Hz / 19V DC
Battery Operating Time 8 hours (with BatteryMon Test Program under Power Saving Mode)

OS

Windows 10 IoT Enterprise 64bit

Security

Trusted platform module (TPM) V2.0
