R08IH8M-RTU1GP

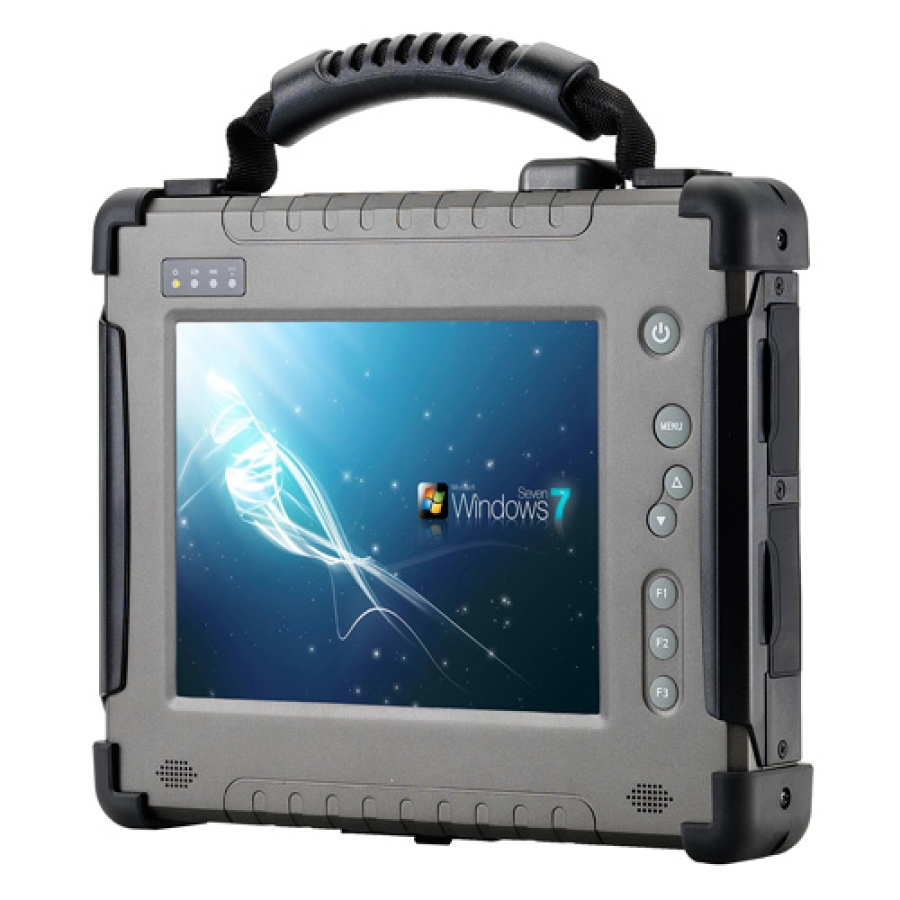

8″ Ultra Rugged Tablet Computer with Intel Core i5 CPU

End of Life

  • Brand: Winmate
  • Intel Core i5 – 5200U Haswell 1.6 GHz CPU
  • Visible Light Transflection touch enhanced Visibility
  • Size: 266mm (W) x 220mm (H) x 50.5mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The R08IH8M-RTU1GP by Winmate is an ultra rugged, heavy industry tablet pc with Alu-Mg Alloy housing and protective rubber edging for MIL-810G shock,vibration and drop standard. Utilising the Intel Core i5 - 5200U Haswell 1.6 GHz (Turbo max 2.6 GHz) CPU, the tablet gets high-performance at only 15W, so battery life is preserved for more operating time in the field. This rugged tablet computer also has a wide operating temperature making it a wise choice for harsh environments.

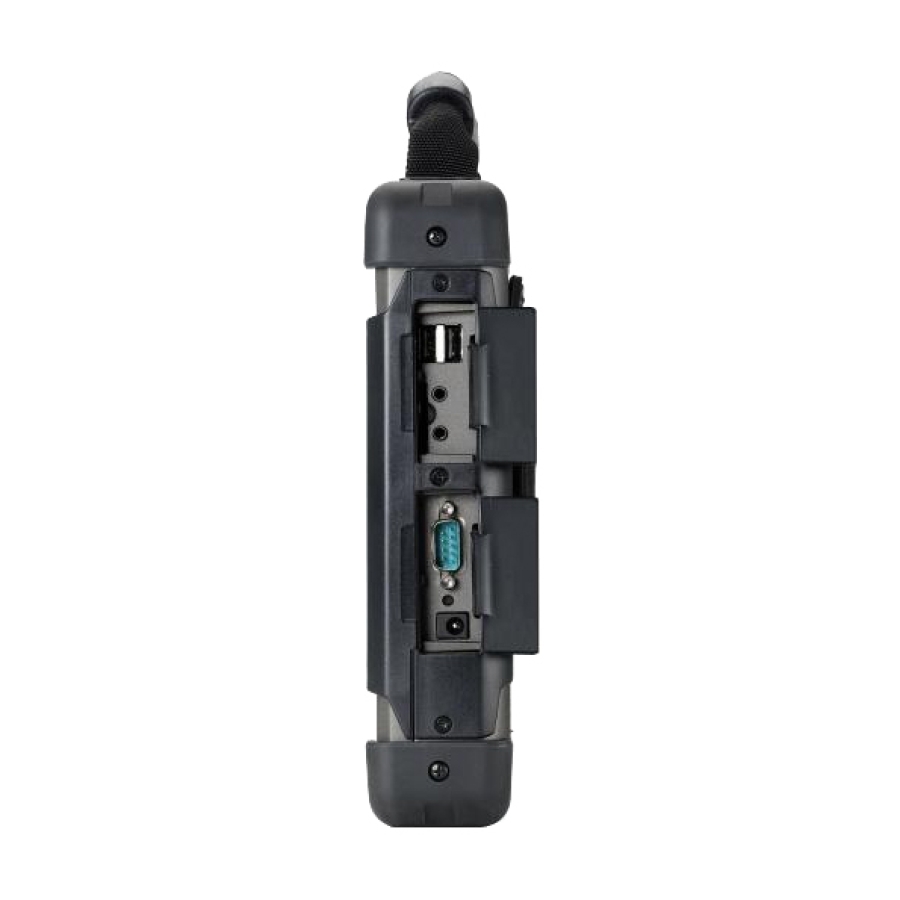

The screen panel is 8.4" with a resolution of 800 x 600 and has a bright 800 NITS due to its Visible Light Transflective Touch technology enhancing the visibility. Wireless communication includes Wi-Fi, Bluetooth 4.0and GPS with the option of 3G. I/O includes 2 x USB 3.0, 1 x audio combo, 1 x SD Card slot, 1 x SIM slot, 2 x COM and a power jack.



Ordering Info

  • R08IH8M-RTU1GP – 8.4″ Ultra Rugged Tablet Computer with 800 x 600 Resolution and Intel Core i5 CPU

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Intel Core i5 – 5200U Haswell 1.6 GHz (Turbo max 2.6 GHz)
  • Intel HD Graphics 4400
  • 8.4″ High Quality 800 x 600 Resolution TFT-LCD Panel
  • 1 x SODIMM, Max 8 GB DDR3L-1600 (Default 4GB)
  • Visible Light Transflection touch enhanced Visibility
  • Alu-Mg Alloy Housing with Protective Rubber for MIL-810G Shock,Vibration and Drop Std.
  • Bulit-in Wireless / Bluetooth / GPS
  • Support 3G module or LTE Module (Optional)
  • 6 cell, 5200mAh Lithium-Ion Battery Pack
  • Low Power consumption CPU only 15W
