M140TG

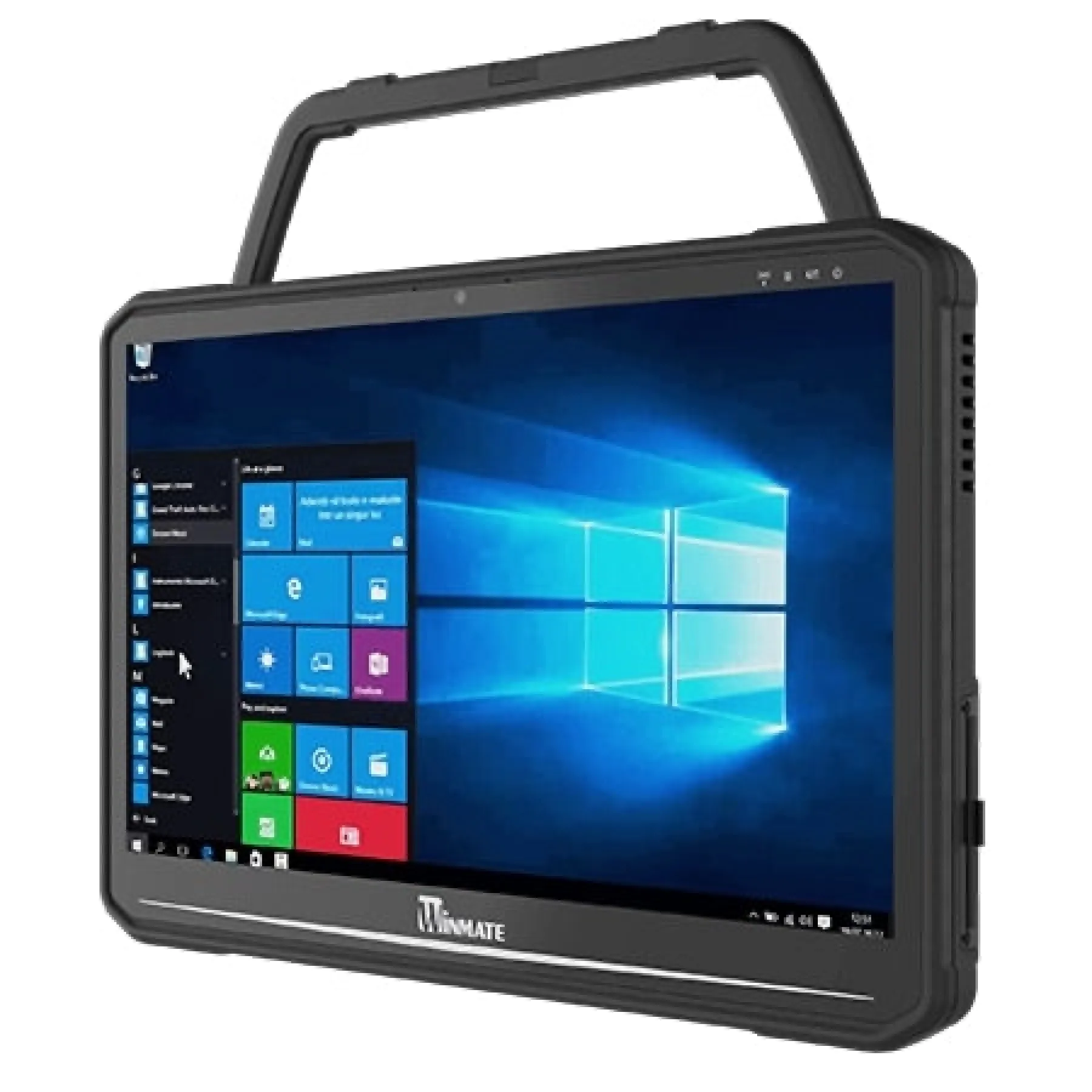

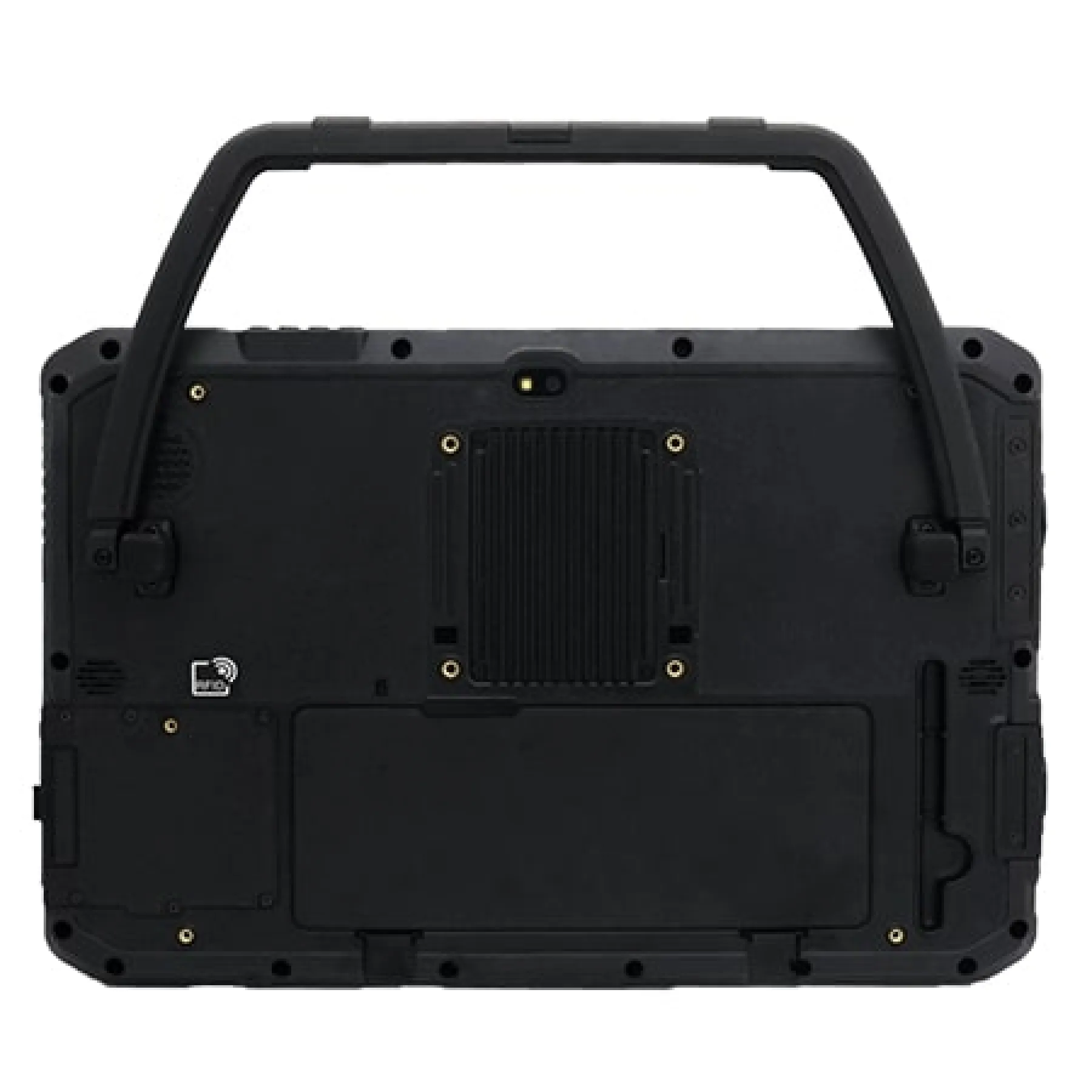

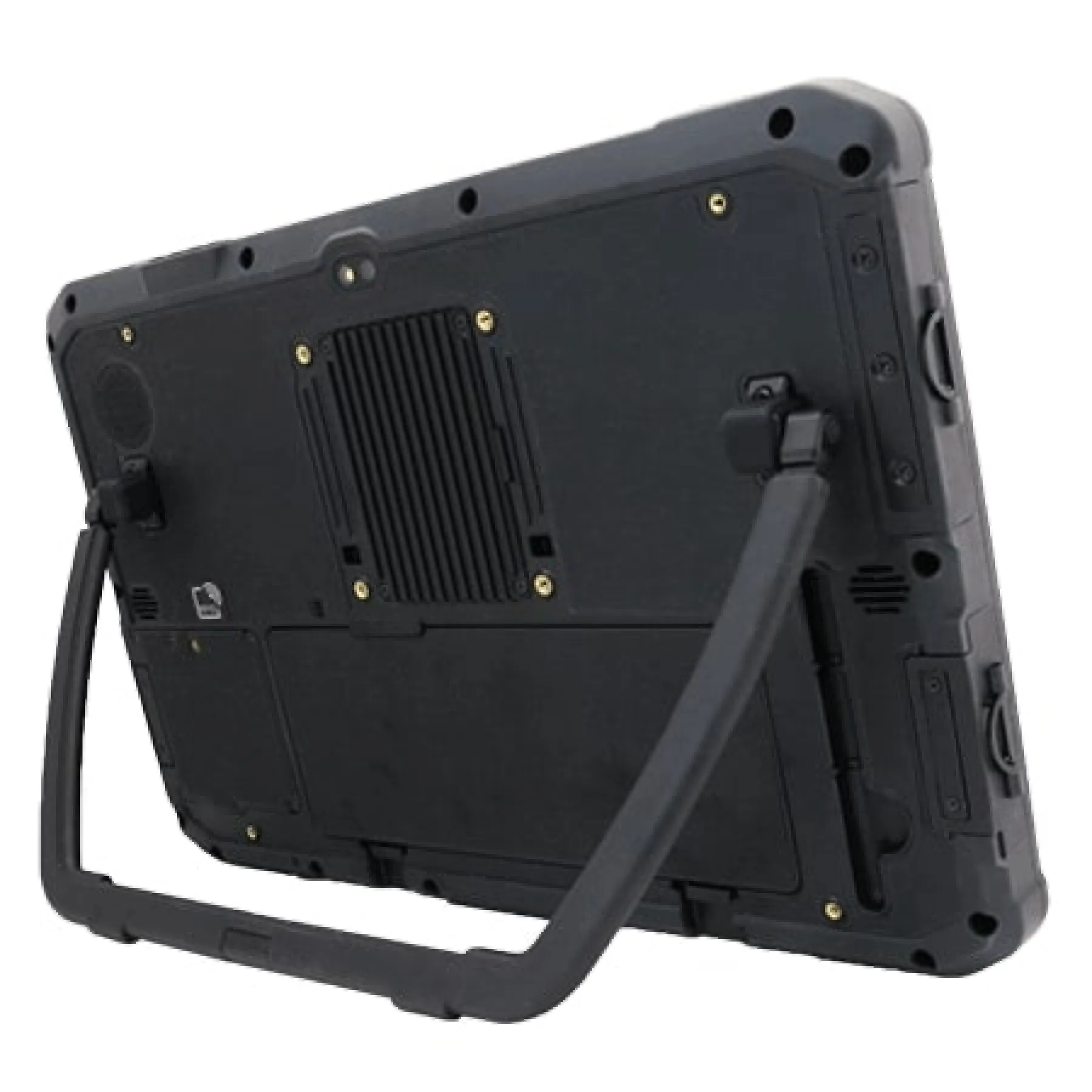

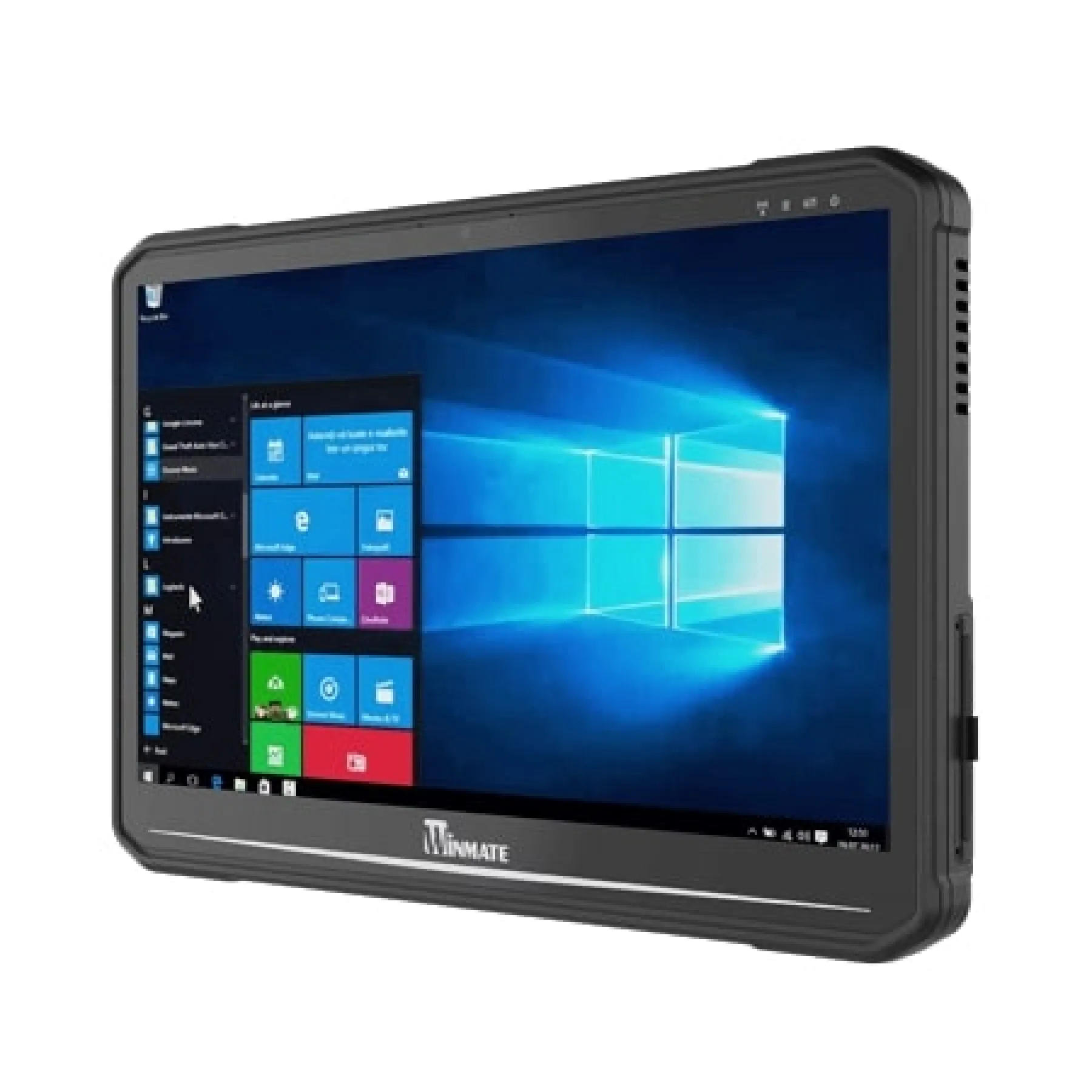

Winmate M140TG 14″ 11th Gen Intel Core i5-1135G7 Windows Rugged Tablet

M140TG

  • 11th Gen. Intel Processor Family – Tiger Lake Processor
  • 14-inch tablet, 1920 x 1080 wide viewing angle LED Panel
  • Optical bonding and Antiglare technology for sunlight readability
  • IP65 water and dust proof with MIL-STD-810H rugged housing
  • Hot-swappable battery for whole day work
  • Optional integrated Smart Card Reader
  • Integrated 75×75 VESA mounting solution
  • Optional Kick-stand / Hard Handle
-
+

Details

See the data with less scrolling M140TG features a bigger screen with optical bonding technology and an anti-glare coating, making the display readable even under sunlight. It supports rain and glove touch capability, offering visibility and productivity in hostile environments and situations. Temperature tolerance The M140TG industrial mobile PC can operate in temperatures ranging from -20 to 60 degrees Celsius (when charging) or -10 to 50 degrees Celsius (on battery). It offers the flexibility of use for a wide range of industrial sectors. Always ON industrial mobile PC In a world where industrial mobile pc needs to work 24/7/365, power-up continuity is essential. The M140TG has an internal battery that ensures a hot swap capability to support the never power-down industrial mobile PC, making it ideal when the device is pooled between workers or required across multiple work shifts. Use it at ease anywhere and every time The M140TG's 14inch tablet comes with an optional kickstand/hard handle, and mounting choices make it very easy to carry. Rest assured that the device can withstand the impact, shock, vibration, liquid spills, and dust. The M140TG industrial mobile pc has been independently tested and meets the IP65 rating and MIL-STD-810H standard. Always in touch everywhere M140TG features an innovative docking connector, extensive connectivity possibilities, and many interfaces. Wireless LAN, BT, and optional cellular communications networks 4G/LTE to allow data to be exchanged in real-time.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Projected Capacitive
Ingress Protection IP65
Brightness 700nit, Standard
Resolution 1920x1080, FHD
GPU Integrated GPU
Memory Capacity Up to 16GB, Up to 32GB, Up to 4GB, Up to 8GB
USB Ports 3 Ports, 3 Ports, USB 3.0
Ethernet Ports (LAN) 1x 1G
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x HDMI
Storage Type 1, 1, 2, Micro SDXC, SSD
Input Voltage 19 VDC
Mounting Options VESA-mount
Operating Temperature -20°C to 60°C, Wide
Certifications CE/FCC, MIL-STD
OS Support Windows 10, Windows 10, up to Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 IoT, Windows 11 Pro
