I570EAC-201

Winmate I570EAC-201 Marine Computer, Celeron / Pentium M CPU, IEC 60945, DNV2.4

End of Life

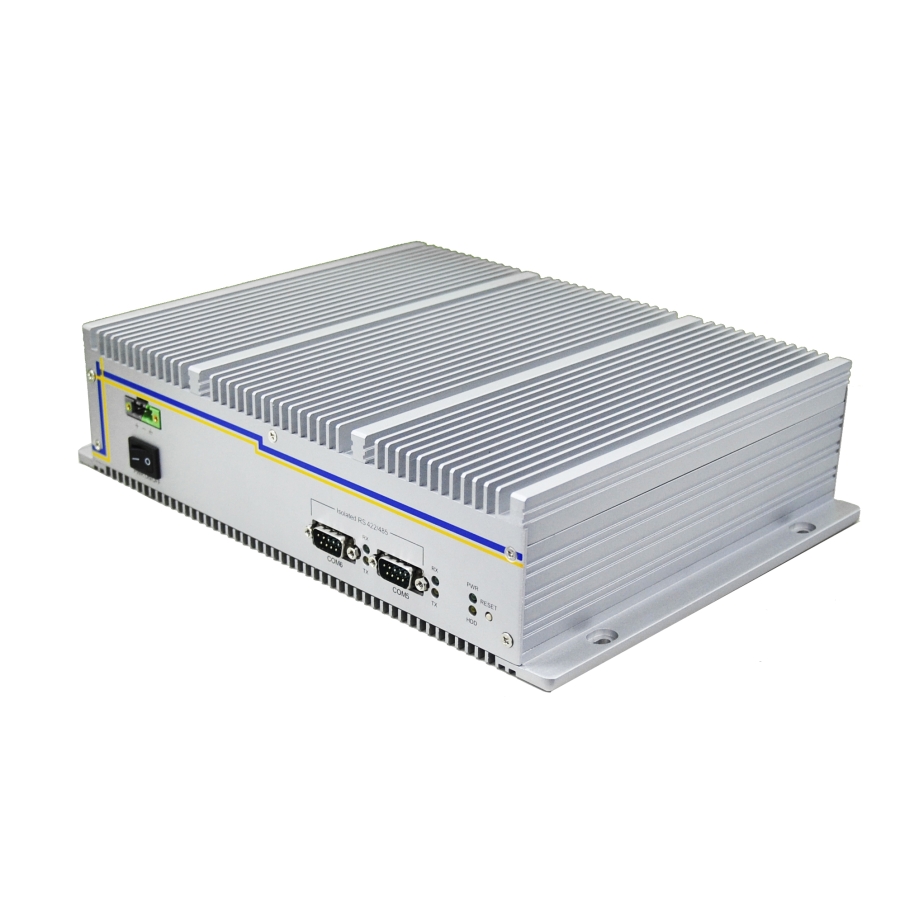

The I570EAC-201 marine computer is designed to operate in harsh environments on-board vessels of all sizes. The system is housed in a rugged, fanless aluminium enclosure which offers extended temperature operation. It features isolated power inputs, allowing use on commercial marine vessels. The I570EAC-201 features Intel's Celeron series of CPUs, alongside DDR memory up to 1GB. The system offers 2 x isolated RS422/485 ports, 3 x RS-232 ports, 4 x USB, Dual LAN, GPIO, VGA and Audio.

  • Brand: Winmate
  • Intel® Celeron M 1.0 GHz or Pentium M 1.4Ghz CPU
  • Fanless aluminium enclosure
  • Size: 296mm (W) x 214mm (D) x 71mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The I570EAC-201 marine computer is designed to operate in harsh environments on-board vessels of all sizes. The system is housed in a rugged, fanless aluminium enclosure which offers extended temperature operation. It features isolated power inputs, allowing use on commercial marine vessels. The I570EAC-201 features Intel's Celeron series of CPUs, alongside DDR memory up to 1GB. The system offers 2 x isolated RS422/485 ports, 3 x RS-232 ports, 4 x USB, Dual LAN, GPIO, VGA and Audio.

Ordering Info

  • I570EAC-201: Marine PC with Celeron M CPU

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Chassis: Rugged, aluminium, fanless
  • Processor: Intel® Celeron M 1.0 GHz or Pentium M 1.4Ghz
  • Chipset: Chipset: Intel® ICH4M chipset
  • Memory: 1 x DIMM, Max 1GB DDR 33 (1GB Default)
  • Storage: 1 x SATA: 2.5” SSD
  • Graphics: Intel with 1 x VGA
  • Ethernet: 2 x 10/100/1000
  • USB: 6 x USB 2.0 (2 x USB Internal)
  • Audio: Mic-in and Line-out
  • Serial: 2 x isolated RS-422/485, 3 x RS-232
  • Power Input: 3-pin +24V DC input (9V to 36V DC range with 800V isolation)
  • Operating temperature: Ambient with air flow: 0°C~55°C
  • Certification: CE & FCC
