VBOX-3611-4L

Sintrones VBOX-3611-4L 6th Gen Intel Core i7/i5/i3/Celeron Rugged Industrial Computer for Fleet Management

VBOX-3611-4L

  • Intel Core i7-6600U
  • Wireless support LTE w/ Dual SIM Cards, WLAN, GPS Dead Reckoning, WiFi, BT(Optional)
  • 9V~48V DC Power Input
  • Smarter Vehicle Power Ignition for Variety Vehicle
  • Dual Hot Swappable SATA Storage, RAID 0, 1, 5
  • 1 x CAN Bus 2.0B (Optional)
  • E13 and EN50155 certified

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

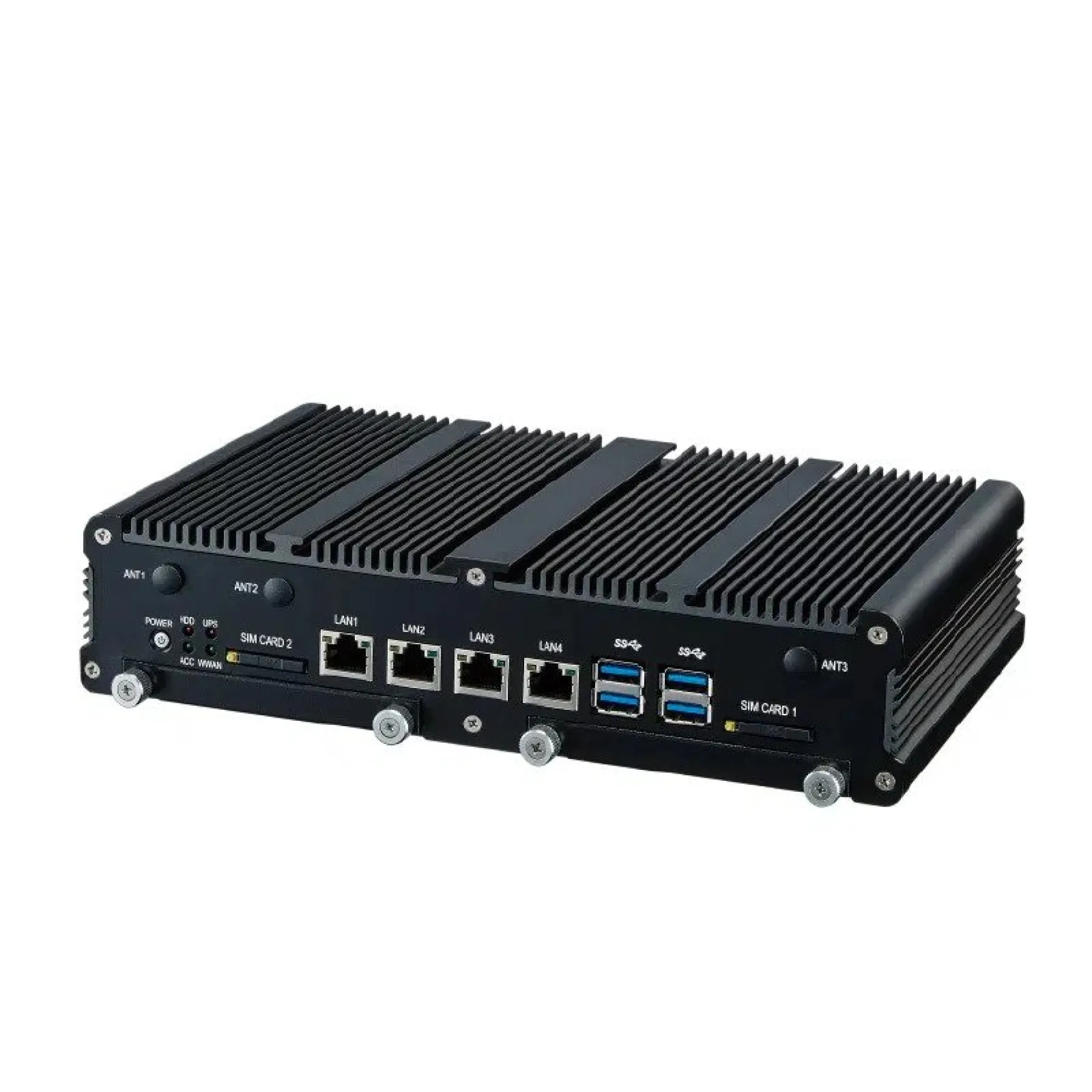

The VBOX-3611-4L is powered by Intel Gen six Core i7-6600U CPU with four GbE LAN In-Vehicle Computer. It is designed for a wide range of DC power inputs 9V~48V DC which are isolated for power, serial and I/O port. It features an optional CAN Bus 2.0B port and wireless communication technology, offers wireless support LTE with SIM card, WLAN, GPS Dead Reckoning, and BT (Optional). It is E13 and EN50155 certified. VBOX-3611-4L provides four GbE, including one with iAMT. It features smart vehicle power ignition, power management for a variety of vehicles, and it can be adapted to the needs of any vehicle management systems, tracking the trains’, cars’, or trucks’ internal hardware and software states, usage and movement.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron, up to 2 Cores, Intel Core, up to 2 Cores
GPU Integrated GPU
Memory Capacity Up to 32GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-422/485, 4x RS-232
USB Ports 4x USB 3.0
Ethernet Ports (LAN) 4x 1G
Wireless Cellular, Wi-Fi
CAN Bus Yes
Video Ports 1x DVI, 1x DisplayPort, 1x VGA
Digital I/O 8 DIO
Audio Yes
Storage Type 1x M.2 SATA, 1x SATA, 2x 2.5"
Expansion Type 1x M.2, 2x Mini PCI Express
Input Voltage 9-48 VDC
Ignition Control Yes
Mounting Options VESA-mount, Wall-mount
Operating Temperature Extra-Wide OT: -40°C to 70°C
Market Certifications CE/FCC, EN 45545, EN 50155, MIL-STD

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Sintrones: Warranty and Service Information

All Sintrones products distributed in the EMEA come with a 2 year warranty as standard. This covers any products which may have been customised for specific requirements. In addition to the 2 year warranty we also provide optional warranty extensions for further peace of mind.
