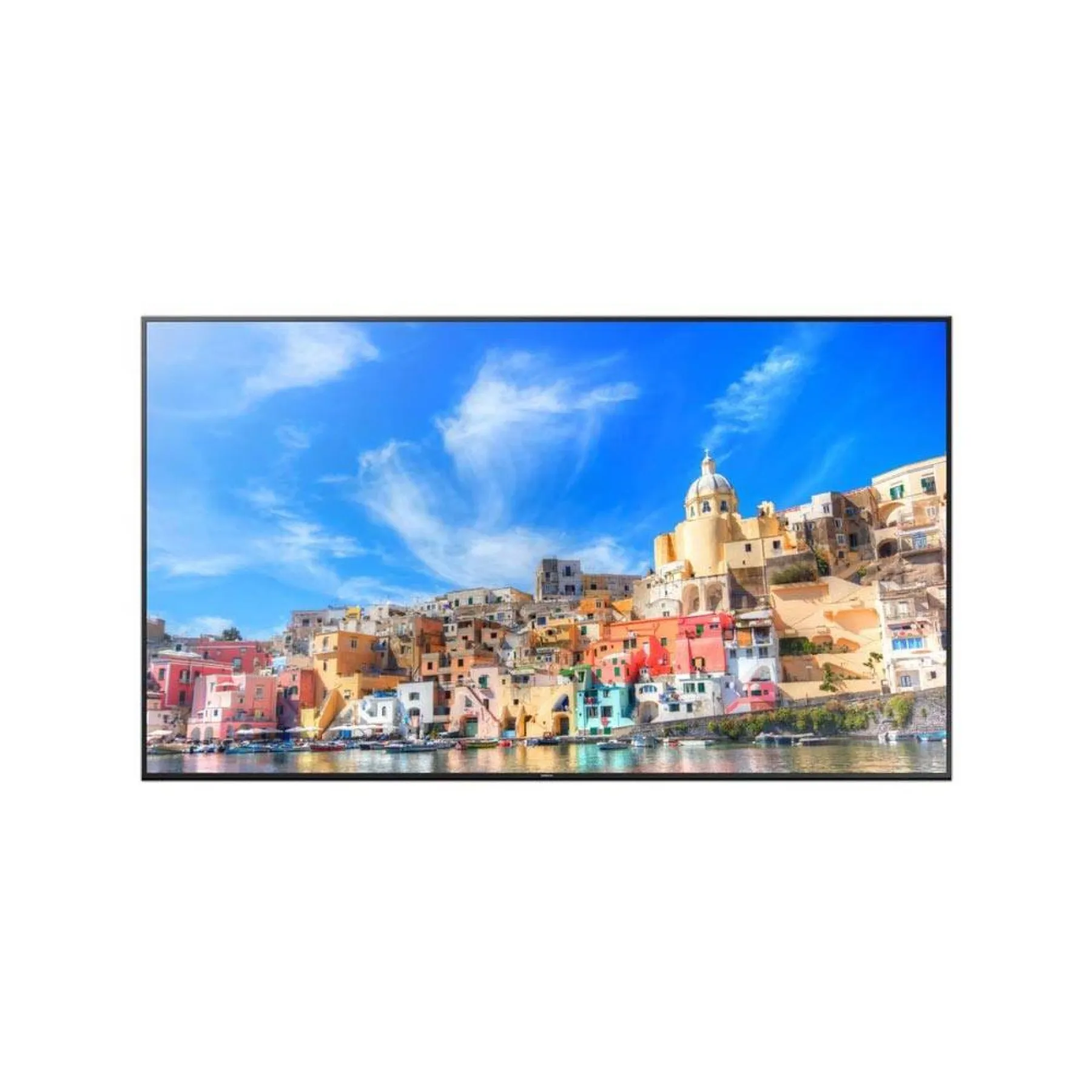

QM98F

98″ 4K UHD Signage Display 24/7 Usage

QM98F

  • Brand: Samsung
  • 98 inch 4K screen
  • Usage: 24/7
  • Supports 4 inputs for QuadView
  • Bezel Size: 15.2mm
  • Viewable Area: 2158.848mm (W) x 1214.352mm(H)
  • Size: 2194.2mm (W) x 1249.8mm (H) x 76.5mm (D)
-
+

Details

The QM98F is an 98 inch 4K (UHD) resolution signage display screen designed for 24/7 commercial operation. This highly durable screen offers a 500 NIT non-glare panel in a slim enclosure with a narrow bezel to present content in the utmost clarity.

I/O on the QM85F includes 1 x D-Sub DVI-D, 2 x Display Port 1.2, 4 x HDMI 1.4, 1 x HDCP and a stereo mini jack.

Ordering Info

  • QM98F – 98″ 4K UHD Signage Display 24/7 Usage

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Diagonal Size: 98″
  • Resolution: 3840*2160 (4K UHD)
  • Pixel Pitch(mm): 0.105 x 0.315
  • Active Display Area(mm): 2158.848(H) x 1214.352(V)
  • Brightness(Typ.): 500 nit
  • Contrast Ratio: 4000:1
  • Viewing Angle(H/V): 178/178
  • Response Time(G-to-G): 8ms
  • Display Colors: 16.7M(True Display) 1.07B(Ditherd 10bit)
  • Speaker Type: Built in Speaker(10W + 10W)
  • RGB: DVI-D, Display Port 1.2
  • Video: 4 x HDMI 1.4
  • HDCP: HDCP 1.4
  • Audio: Stereo mini Jack, RGB, DVI, HDMI
  • USB: USB (option)
  • AC 100 – 240 V~ (+/- 10 %), 50/60 Hz
  • Weight: 80kg
  • VESA: 900 x 600
  • Operating Temp: 0  ℃  ~   40   ℃
Screen Size 91" to 100", 98"
