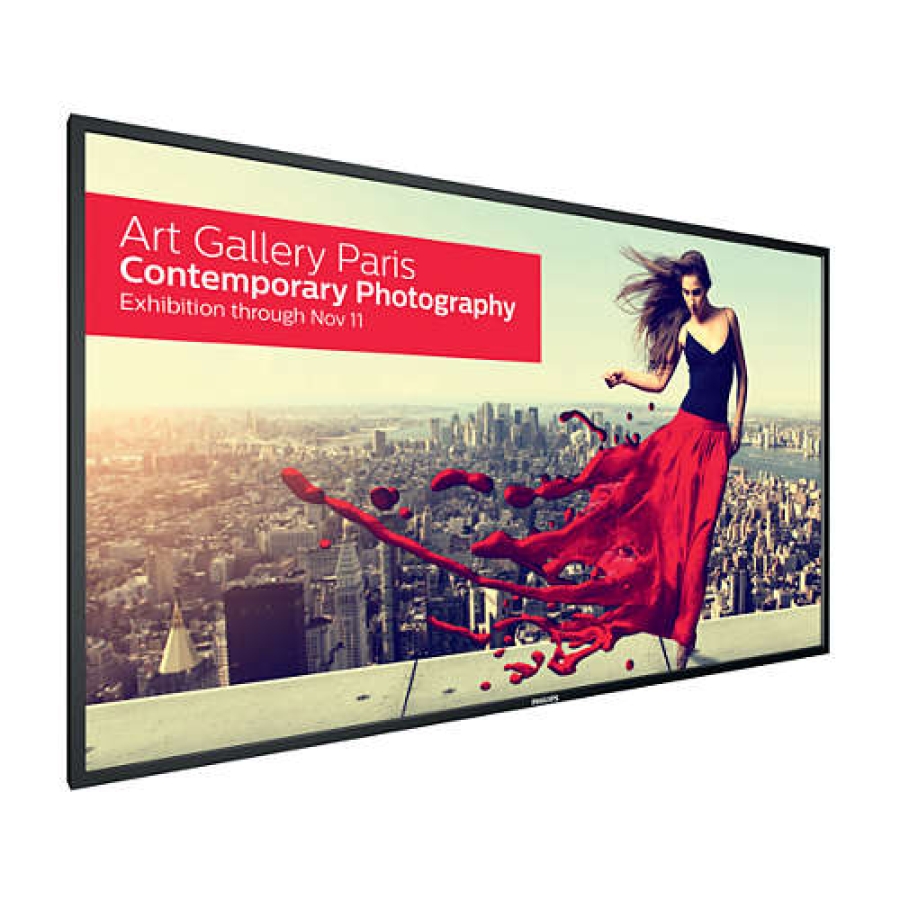

Philips BDL8470EU/00 84″ 4K LCD Signage Display with OPS Slot

End of Life

  • Brand: Philips
  • 84 inch 4K screen
  • Usage: 24/7
  • Supports 4 inputs for QuadView
  • OPS slot for additional media player
  • Bezel Size: 22.6 (R/L) 25.6 (T/B) mm
  • Size: 1910.00mm (W) x 1102.00mm (H) x 77.80mm (D)

This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.



The  BDL8470EU/00 is a monumental 84 inch commercial signage display with the reliability for 24/7 operation. It has a 4K resolution of 3840 x 2160 and the ability to receive 4 separate inputs and split the signals into a quad view, maximising screen space utilization opportunities. Other features include: Manage and control your network remotely via SmartControl SmartControl lets you remotely control and manage your network of displays via RJ45 and RS232C. Easily fine-tune all display settings including resolution, brightness, contrast and cloning of your settings over your complete network. Keep your content up and running with FailOver Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection. SmartPower for energy saving The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs. Designed for 24/7 operation Because business never sleeps, our signage displays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability. Optional OPS Insert to create an all-in-one solution Turn your display into an all-in-one digital signage solution and create a display network that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry-standard slot into which you can add an OPS-standardised media player. This cable-free solution gives you the ability to install, use or maintain your hardware whenever you need to. Play content from 4 separate inputs with QuadViewer Be more flexible with your screen real estate. With the ability to play content from up to four separate inputs, all on one screen, QuadViewer is ideal for control rooms, corporate environments and meeting rooms. Connect and control your content via the cloud with HTML5 Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content. Schedule what you want, when you want with SmartPlayer Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere. Portrait mode operability This display can also be safely and reliably mounted in portrait position

Ordering Info

  • BDL8470EU/00 – 84″ 4K LCD Signage Display with OPS Slot and Quad View


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


  • Diagonal screen size (metric): 213.5  cm
  • Diagonal screen size (inch): 84 inch
  • Panel resolution: 3840 x 2160
  • Optimum resolution: 3840 x 2160 @ 60 Hz
  • Brightness: 500  cd/m²
  • Contrast ratio (typical): 1400:1
  • Dynamic contrast ratio: 500,000:1
  • Response time (typical): 12 ms
  • Aspect ratio: 16:9
  • Viewing angle (horizontal): 178  degree
  • Viewing angle (vertical): 178  degree
  • Picture enhancement
    • 3/2 – 2/2 motion pull down
    • 3D Combfilter
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Motion compens. deinterlacing
    • Progressive scan
  • Pixel pitch: 0.4845 x 0.4845 mm
  • Display colours: 1073 M
  • Temperature range (operation): – 5 ~ 40  °C
  • Temperature range (storage): -20 ~ 60  °C
  • Relative humidity: 20 ~ 80  %
  • MTBF: 50,000  hour(s)
  • Consumption 400W
  • Mains power: 100 ~ 240 VAC
  • Standby power consumption: <0.5W
  • Video input
    • VGA (Analogue D-Sub)
    • DisplayPort (1.2)
    • DVI-D
    • HDMI (x 3)
    • Component (BNC)
    • Composite (BNC)
  • Placement
    • Landscape
    • Portrait
  • Network controllable
    • RS232
    • HDMI (One Wire)
    • LAN (RJ45)
  • Signal Loop Through
    • RS232
    • DisplayPort
  • Energy-saving functions: Smart Power
  • Remote control signal: Lockable
  • Keyboard control
    • Hidden
    • Lockable
  • Ease of installation: Smart Insert
  • Other convenience: Carrying handles
  • Screen-saving functions: Pixel Shift, Low Brightness
  • Video output: DisplayPort
  • Audio input: 3.5-mm jack
  • Audio output
    • 3.5 mm jack
    • External speaker connector
  • External control
    • RS232C (in/out) 2.5 mm jack
    • RJ45
  • Other connections:
    • USB
    • OPS
Screen Size 81" to 90", 84"
Brightness 500nit, Standard
