55BDL3050Q/00

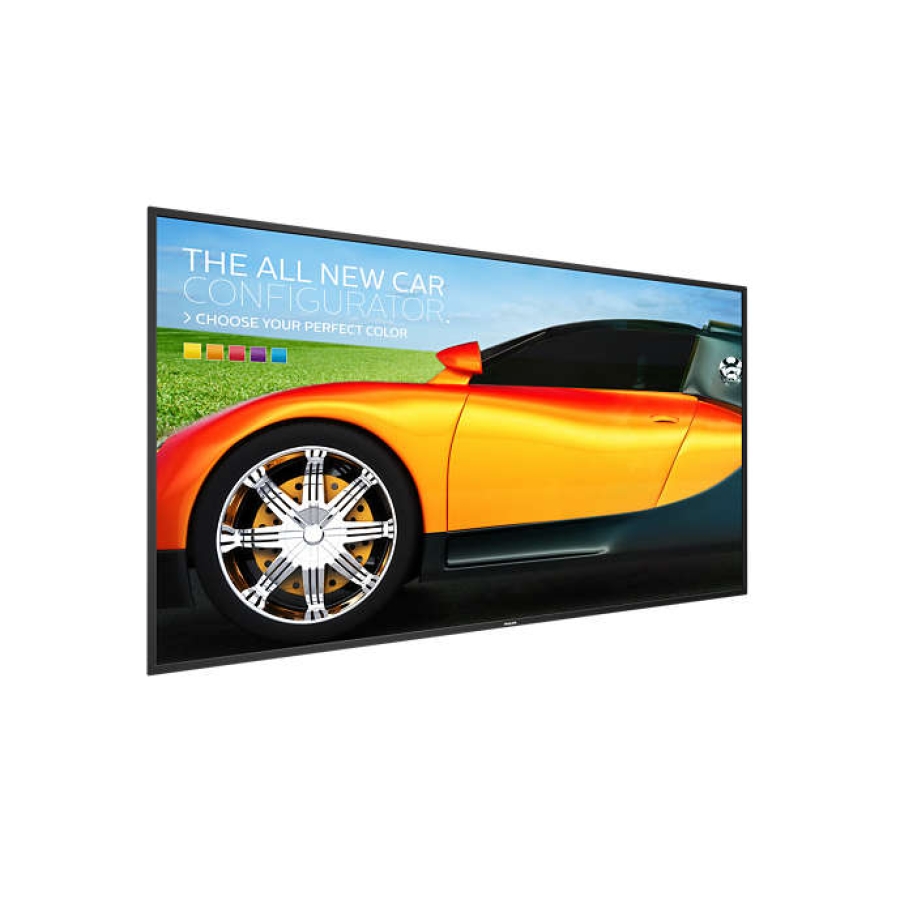

55″ 4K UHD Signage Screen

End of Life

  • Brand: Philips
  • 4K UHD (3840 x 2160)
  • Usage: 16/7
  • Bezel Size: 12.9 (TLR) / 14.7 (B) mm
  • 350 NITS brightness
  • Viewable Area: 1213.4mm (W) x 684mm (H)

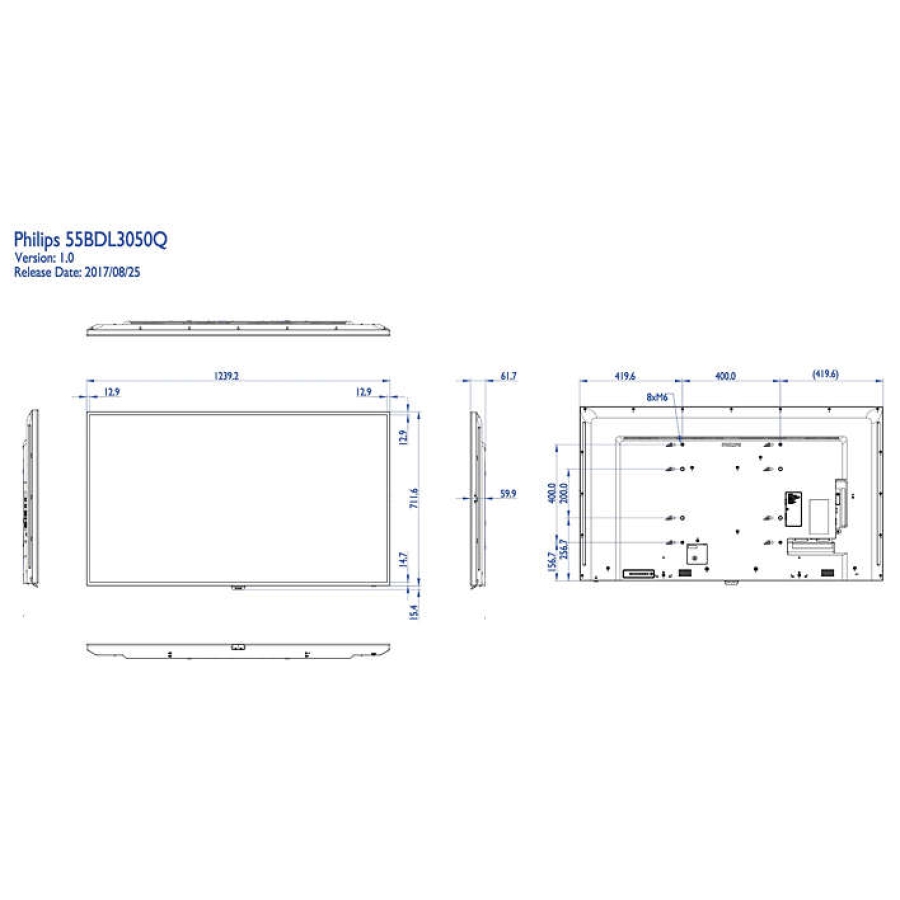

  • Size: 1239.2 mm (W) x 711.6mm (H) x 61.7mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The 55BDL3050Q/00 is a cost-effective 55 inch signage display monitor with a 3840 x 2160 4K resolution and 350 NITS brightness. From the Philips Q-Line range, these screens deliver remarkably clear imagery and reliability, with a range of technical features enabling professional signage functionality.

CMND: Take control of your displays

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

Manage settings of multiple displays with CMND & Control

With CMND & Control, easily manage multiple displays in a central location. With real time display monitoring, setting and software updates from a remote location, and the ability to customise and configure multiple displays at once, such as video wall or menu board displays, controlling your suite of displays has never been easier.

Create and update content with CMND & Create

Design and create compelling content with CMND & Create, a powerful authoring tool. With a drag and drop interface, preloaded templates, and integrated widgets, you'll be able to amaze your customers with compelling content. Available in portrait and landscape mode.

Connect and control your content via the cloud with HTML5

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content.

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

4K Ultra HD: resolution like you've never seen before

See your Signage Solutions like never before thanks to four times the resolution of a conventional Full HD display. 3840 x 2160 pixels provide and image so refined, so lifelike, it's a window to a new world.

Android: Run your own app or choose your favourite app to run

With Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto-orientation feature, showing content in portrait or landscape is as simple as turning the display.

Ordering Info

  • 55BDL3050Q/00 – 55″ 4K UHD Signage Screen

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Diagonal screen size (inch): 54.6  inch
  • Diagonal screen size (metric): 138.7  cm
  • Panel resolution: 3840 x 2160
  • Optimum resolution: 3840 x 2160 @ 60 Hz
  • Brightness: 350  cd/m²
  • Contrast ratio (typical): 4000:1
  • Response time (typical): 8  ms
  • Aspect ratio: 16:9
  • Viewing angle (horizontal): 178  degree
  • Viewing angle (vertical): 178  degree
  • Pixel pitch: 0.315 x 0.315 mm
  • Display colours: 1.07 Billion
  • Picture enhancement
    • 3/2 – 2/2 motion pull down
    • 3D Combfilter
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    • Colour Enhancement
    • Colour Temperature Adjustment
    • De-interlacer
    • Noise Reduction
    • Smart Picture
  • Operating system: Android 5.1
  • Panel technology: IPS
  • Screen-saving functions: Pixel Shift, Low Brightness
  • Keyboard control: Lockable
  • Network controllable
    • LAN (RJ45)
    • RS232
    • RJ45
  • Energy-saving functions: Smart Power
  • Placement: Landscape
  • Remote control signal: Lockable
  • Ease of installation: Remote Control Lock
  • Memory: 8 GB eMMC
  • Other convenience
    • Kensington lock
    • VESA mount (400 x 200 mm)
  • Signal Loop Through
    • IR Loop through
    • RS232
  • Tiled Matrix: Up to 10 x 15
  • Temperature range (operation): 0 ~ 40  °C
  • Temperature range (storage): -20 ~ 60  °C
  • Relative humidity: 20 ~ 80 (operation),10 – 90%(storage)  %
  • MTBF: 50,000  hour(s)
  • Storage: 8 GB eMMC
  • CPU: Quad Core Full HD
  • Memory: 2 GB DDR3
  • Video input
    • DVI-D
    • VGA (Analogue D-Sub)
    • USB
    • HDMI (x 2)
  • Audio input: 3.5-mm jack
  • Audio output: Audio Left/Right (RCA)
  • External control
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
    • RJ45
  • Other connections
    • Analogue (D-sub input)
    • Analogue audio Left/Right out
    • DVI-D
    • HDMI in 2x
    • IR out
    • micro SD
    • PC Audio in
    • PC-In VGA
    • USB
    • USB 2.0
    • VGA in
  • Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
  • Consumption (On mode): 110 W
  • Standby power consumption:
  • Power Saving Features: Smart Power
Screen Size 51" to 60", 55"
