Philips 55BDL3002H/00 55″ Ultra High Bright Screen with OPS Slot 2500nit

End of Life

  • Brand: Philips
  • Sunlight readable with 2500 NITS brightness
  • OPS slot for media player integration
  • Designed for 24/7 operation
  • Bezel Size: 15.6mm
  • Viewable Area: 1211mm (H) x 681.8mm (V)

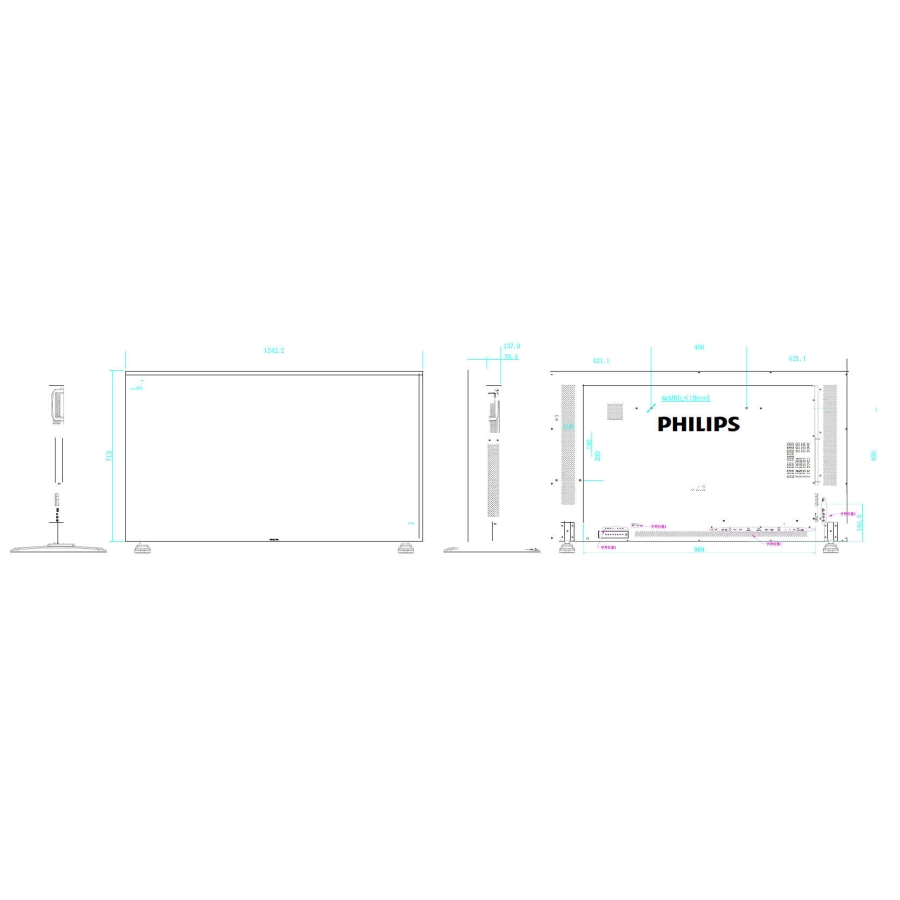

  • Size: 1242.2mm (W) x 713mm (H) x 137.9mm (D)

This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.



The 55BDL3002H/00 is a 55 inch sunlight readable signage screen with a brightness of 2500 NITS. Together with it's slot for the addition of an Intel OPS compatible media player, this display is perfect for applications subject to high levels of ambient light such as shop window displays. 2500 nit brightness for high ambient light applications Enjoy an excellent visual experience even in areas illuminated by direct sunlight thanks to the 2500 nit panel. The high brightness offers a wide array of new implementation possibilities, especially in locations that have high ambient light levels, delivering crystal clear images for all locations where ambient brightness is an issue. Optional OPS Insert to create an all-in-one solution Turn your display into an all-in-one digital signage solution and create a display network that is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry-standard slot into which you can add an OPS-standardised media player. This cable-free solution gives you the ability to install, use or maintain your hardware whenever you need to. Keep your content up and running with FailOver Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and you're ready for instant protection. CMND: Take control of your displays A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND. SmartPower for energy saving The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs. Save and play content with internal memory Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down. Schedule what you want, when you want with SmartPlayer Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere. Connect and control your content via the cloud with HTML5 Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your entire network. Simply plug in a RJ45 Internet cable for network connection and connect the display with the dedicated URL address, and you are ready to play your cloud-based content. Designed for 24/7 operation Because business never sleeps, our signage displays are designed for 24/7 use. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.

Ordering Info

  • 55BDL3002H/00 – 55″ Ultra High Bright Signage Screen with OPS Slot 2500 NIT


Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?


  • Diagonal screen size (inch): 55 inch
  • Diagonal screen size (metric): 139.7  cm
  • Panel Tech: SVA
  • Optimum resolution:1920 x 1080 @ 60 Hz
  • Brightness: 2500  cd/m²
  • Contrast ratio (typical): 5000:1
  • Response time (typical): 6 ms
  • Aspect ratio: 16:9
  • Viewing angle (horizontal): 178  degree
  • Viewing angle (vertical): 178  degree
  • Pixel pitch: 0.63 x 0.63 mm
  • Display colours: 16.7m
  • Picture enhancement
    • Motion compens. deinterlacing
    • Progressive scan
    • 3/2 – 2/2 motion pull down
    • 3D Combfilter
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
  • Screen-saving functions: Pixel Shift, Low Brightness
  • Remote Control Signal: Lockable
  • Keyboard Control: Hidden, Lockable
  • Network controllable
    • LAN (RJ45)
    • RS232
    • HDMI (One Wire)
  • Energy-saving functions: Smart Power
  • Placement: Landscape
  • Remote control signal: Lockable
  • Ease of installation:
    • Smart Insert
    • Edge Alignment Kit
  • Temperature range (operation): 0 ~ 40  °C
  • Temperature range (storage): -20 ~ 60  °C
  • Relative humidity: 20 ~ 80 (operation),5 – 95%(storage)  %
  • MTBF: 50,000  hour(s)
  • Video input
    • DisplayPort (1.2)
    • DVI-D
    • HDMI (x2)
    • Component (BNC)
    • Composite (BNC)
    • VGA (Analogue D-Sub)
  • Audio input: 3.5-mm jack
  • Audio output: Audio Left/Right (RCA)
  • External control
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
    • RJ45
  • Other connections
    • OPS
    • USB
    • AC-out
  • Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
  • Consumption (On mode): 368 W
  • Standby power consumption:
  • Power Saving Features: Smart Power
Screen Size 51" to 60", 55"
Brightness 2500nit, Ultra High
