55BDL1005X/00

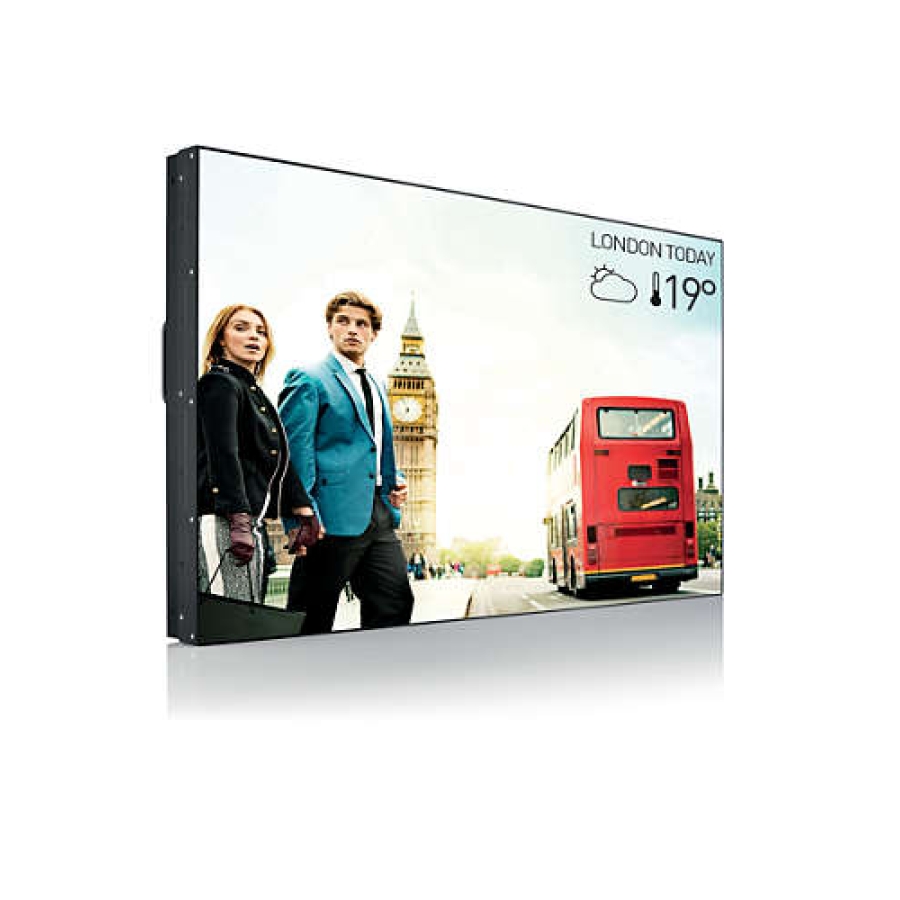

Philips 55BDL1005X/00 55″ Video Wall Display with Ultra Narrow 0.9mm Bezel

End of Life

  • Brand: Philips
  • 1920 x 1080 resolution
  • 500 NITS brightness
  • Usage: 24/7
  • Bezel Size: 0.9mm (1.8mm when together with other screens)
  • OPS slot

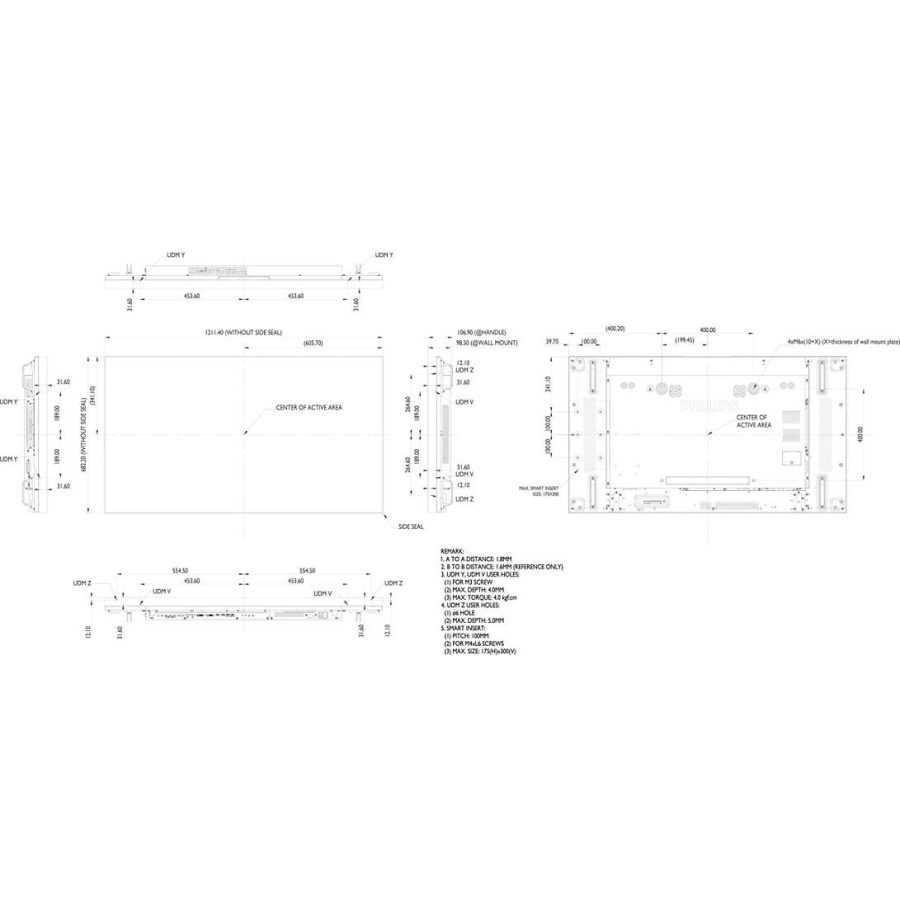

  • Size: 1211.4mm (W) x 682.2mm (H) x 98.5mm (D)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The 55BDL1005X/00 is a video wall display screen which, when built into a display with other screens, has an ultra-narrow bezel width between screens of just 1.8mm (each screen 0.9mm even bezel). Together with stunning picture quality, the ultra-narrow bezel helps to create exceptional visual installations for 24/7 commercial use.

The screens have a HD resolution of 1920 x 1080 and a brightness of 500 NITS. An optional OPS player can be easily installed into the OPS slot and other inputs can be fed to the screen via 1 x DVI-D, 2 x HDMI, 1 x VGA, 1 x Display Port, Component (RCA) and Composite (RCA). Video outputs include 1 x Display Port, 1 x DVI-I and 1 x VGA.

Ordering Info

  • 55BDL1005X/00 – 55″ Video Wall Display with Ultra Narrow 0.9mm Bezel

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Panel resolution: 1920 x 1080p
  • Optimum resolution: 1920 x 1080 @ 60 Hz
  • Brightness: 500  cd/m²
  • Contrast ratio (typical): 1200:1
  • Dynamic contrast ratio: 500,000:1
  • Response time (typical): 8 ms
  • Aspect ratio: 16:9
  • Viewing angle (horizontal): 178  degree
  • Viewing angle (vertical): 178  degree
  • Pixel pitch: 0.63 x 0.63 mm
  • Display colours: 1.07 B
  • Picture enhancement
    • 3/2 – 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
  • Video input
    • Component (RCA)
    • Composite (RCA)
    • DVI-D
    • HDMI (x 2)
    • VGA (Analogue D-Sub)
    • DisplayPort (1.2)
  • Video output
    • DisplayPort
    • DVI-I
    • VGA (via DVI-I)
  • Audio input
    • 3.5-mm jack
    • Audio Left/Right (RCA)
  • Audio output
    • Audio Left/Right (RCA)
    • External speaker connector
  • External control
    • IR (in/out) 3.5 mm jack
    • RJ45
    • RS232C (in/out) 2.5 mm jack
  • Other connections: OPS
  • Signal Loop Through
    • RS232
    • VGA
    • DisplayPort
    • DVI
    • IR Loop through
  • Ease of installation: Carrying Handles, Smart Insert
  • Energy-saving functions:
    • Ambient Light Sensor
    • Smart Power
  • Network controllable
    • RS232
    • RJ45
    • Card OPS RS232
    • One Wire (HDMI-CEC)
  • Placement
    • Portrait
    • Landscape
  • Screen-saving functions: Pixel Shift, Low Bright
  • Tiled Matrix: Up to 10 x 10
  • Temperature range (operation): 0 ~ 40  °C
  • Temperature range (storage): -20 ~ 60  °C
  • Altitude: 0 ~ 3000 m
  • Relative humidity: 20 ~ 80  %
  • MTBF: 50,000  hour(s)
  • Power Consumption: 133W
  • Standby power consumption: <0.5W
  • Regulatory approvals
    • CE
    • FCC, Class B
    • UL/cUL
    • CB
    • GOST
    • EPEAT
Screen Size 51" to 60", 55"
