PCIe-PoE425bt

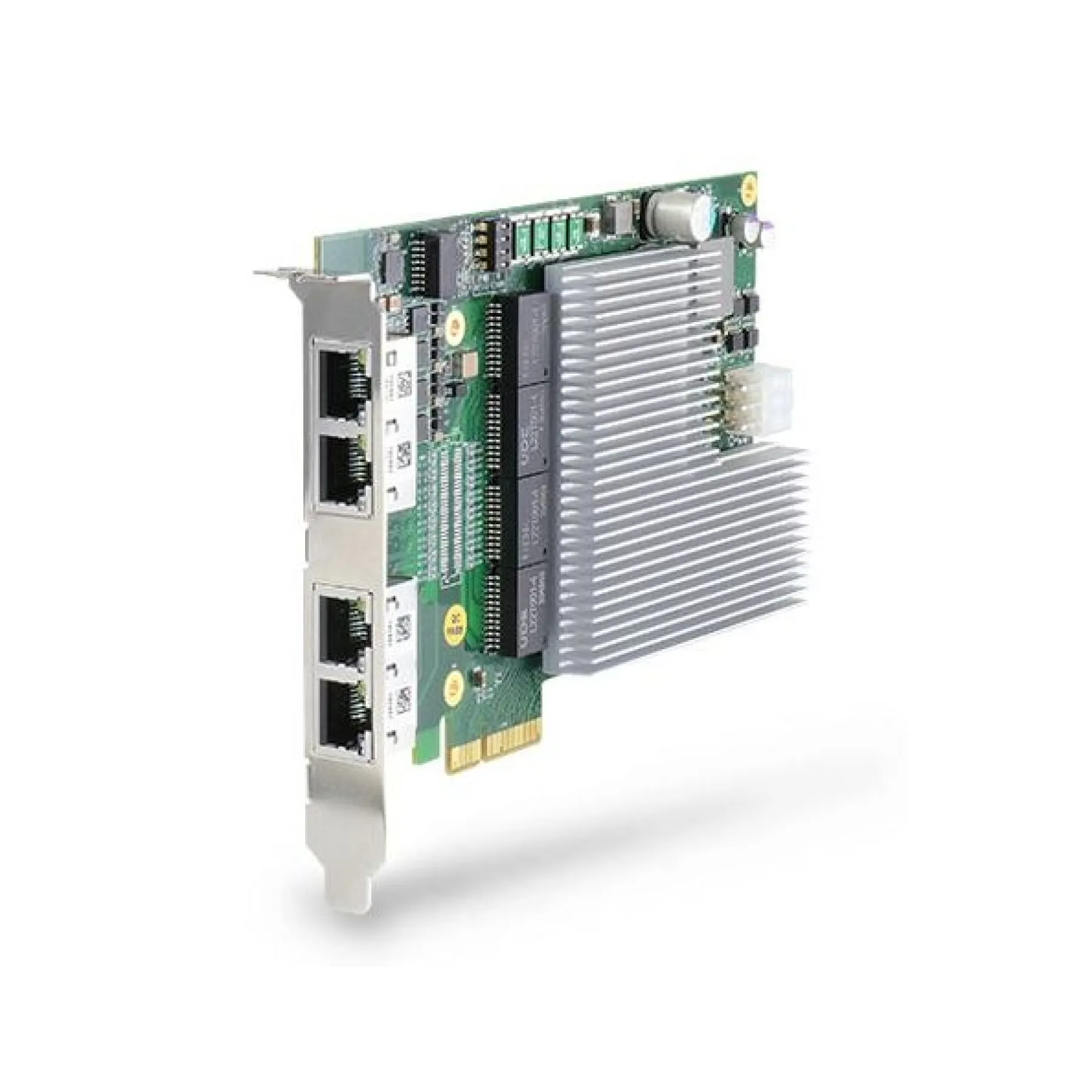

Neousys PCIe-PoE425bt 2.5GBASE-T PoE++ Ethernet Card w/ 4 x PoE Ports

PCIe-PoE425bt

  • Compliant with IEEE 802.3bt PoE++ PSE, provides up to 90W on a single port
  • 4x IEEE 802.3bz 2.5GBASE-T Ethernet ports by Intel I225-IT controller
  • Supports 2.5G/ 1G/ 100M/ 10M link speed
  • x4, Gen2 PCI Express interface
  • Supports 9.5 kB jumbo frame, teaming and IEEE 1588
  • Per-port PoE+ power on/ off control by software API

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

Introducing one of the world's first 2.5G Ethernet card featuring IEEE 802.3bt PoE++ PSE capability! The PCIe-PoE425bt is a 4-port 2.5GBASE-T PoE++ card leveraging the cutting-edge Intel I225 controller. It complies with IEEE 802bz standard to provide 2.5 Gbps bandwidth and is backward-compatible with 1000BASE-T, 100BASE-TX, and 10BASE-TE Ethernet.

In addition to the increase in bandwidth, the PCIe-PoE425bt also features IEEE 802.3bt PSE capability. IEEE 802.3bt, or PoE++, is the latest addition to Power over Ethernet specifications, allowing a single port to provide up to 90W of power supplied to a PD over a standard CAT-5e or CAT-6 Ethernet cable. While COTS high PoE PTZ cameras and outdoor WIFI access points may require higher power than 30W, the PCIe-PoE425bt is particularly useful for directly connecting and powering these devices without an external PoE++ injector.

By incorporating 2.5GBASE-T and PoE++ technologies, the PCIe-PoE425bt is the ideal choice for machine vision and surveillance applications with advanced PoE devices, such as PTZ camera, high-performance WIFI access point and industrial NBASE-T camera.

Ordering Info

PCIe-PoE425bt

4-Port 2.5GbE 802.3bt PoE++ card with RJ45 connector

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Bus Interface x4, Gen2 PCI Express
# of 2.5G Port 4x 2.5G Ethernet ports by four Intel I225-IT controllers, supporting 9.5 kB jumbo frame, teaming and IEEE 1588
Network Interface IEEE 802.3 Ethernet interface for 2500BASE-T (802.3bz), 1000BASE-T (802.3ab), 100BASE-TX (802.3u), and 10BASE-TE (802.3)
PoE Capability In compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, maximal 90W output on a single PoE++ port Compatible with 802.3at (PoE+) and 802.3af (PoE) PD
Ethernet Connector 4x RJ-45 connectors
Cable Requirement 100 meters over CAT-5e or better Ethernet cable
Power Requirement Jumper-select 12VDC input Maximum 5.5A@12V (66W) from PCIe gold finger connector Maximum 12A@12V (144W) from on-board 6-pin PCIe power connector
EMC CE Class A, according to EN 55032/55035 FCC Class A, according to FCC Part 15, Subpart B
Operating Temperature 0°C ~ 55°C with airflow
Dimension 167.7mm (L) x 111.2mm (H) x 18.2mm (W)
