Nuvo-7100VTC

Neousys Nuvo-7100VTC 8th/9th Gen Intel Core EN50155 In-Vehicle Computer

Nuvo-7100VTC

  • E-Mark and EN 50155 Certified
  • Supports Intel® 8th/9th Gen Core i7/i5/i3 LGA1151 Socket-type CPU
  • 4x or 8x 802.3at Gigabit PoE+ Ports via M12 or RJ45 Connectors
  • On-board Isolated CAN Bus for In-vehicle Communication
  • 4-CH Isolated Digital Inputs and 4-CH Isolated Digital Outputs
  • 2x SATA Ports with One Hot-swappable HDD Tray, Supporting RAID 0/1
  • 2x M.2 B Key and 3x Full-size Mini-PCIe Sockets
  • 8 – 35V Wide-range DC Input with Built-in Ignition Power Control

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

Neousys Nuvo-7100VTC rugged in-vehicle computers feature purpose-built set and effortless connectivity, powered by Intel 8th/9th Gen Intel Core processors with up to 6-core / 12-thread architecture and 64GB DDR4 memory that gets a significant performance increase over previous generations for versatile in-vehicle applications. The Nuvo-7100VTC provides flexibility to support a range of peripherals and connections. It offers four or eight 802.3at PoE+ ports to supply 25W power to connected devices such as IP cameras with M12 (x-coded connectors) and connector screw-lock mechanisms on computer I/Os like Gigabit Ethernet, USB3.0 and USB3.1 to guarantee extreme rugged connectivity in shock/ vibration environments. Wireless connectivity are essential for modern day in-vehicle applications and you can simultaneously utilize two M.2 and three mini-PCIe sockets with corresponding wireless modules for 3G/ 4G, WIFI, GPS, and CAN module for communication. Additionally, there is a 4G cellular module option that is certified to work with renowned US telecommunications company which can save you implementation time and cost. On top of all that, the Nuvo-7100VTC also features isolated CAN bus for in-vehicle communication, isolated DIO for sensor/ actuator control, 8~35V wide-range DC input with ignition power control and is in compliance with E-Mark and EN 50155. The Nuvo-7100VTC from Neousys is the perfect solution with extraordinary reliability for various in-vehicle application needs.

Ordering Info

  • Nuvo-7100VTC- 4x M12 PoE+ Ports, DIO, CAN bus and RAID
  • Nuvo-7104VTC- 4x RJ45 PoE+ Ports, DIO, CAN bus and RAID
  • Nuvo-7108VTC- 8x RJ45 PoE+ Ports, DIO, CAN bus and RAID
  • This product is not available in the United States; please contact sales to discuss your requirements further.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

System Core
Processor Supporting Intel 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP)
– Intel Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE
– Intel Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE
– Intel Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE
Graphics Integrated Intel® HD Graphics 630
Memory Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots)
AMT Supports AMT 12.0
TPM Supports TPM 2.0
I/O Interface
Ethernet 2x Gigabit Ethernet ports by Intel® I219 and I210
PoE+ 4x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210

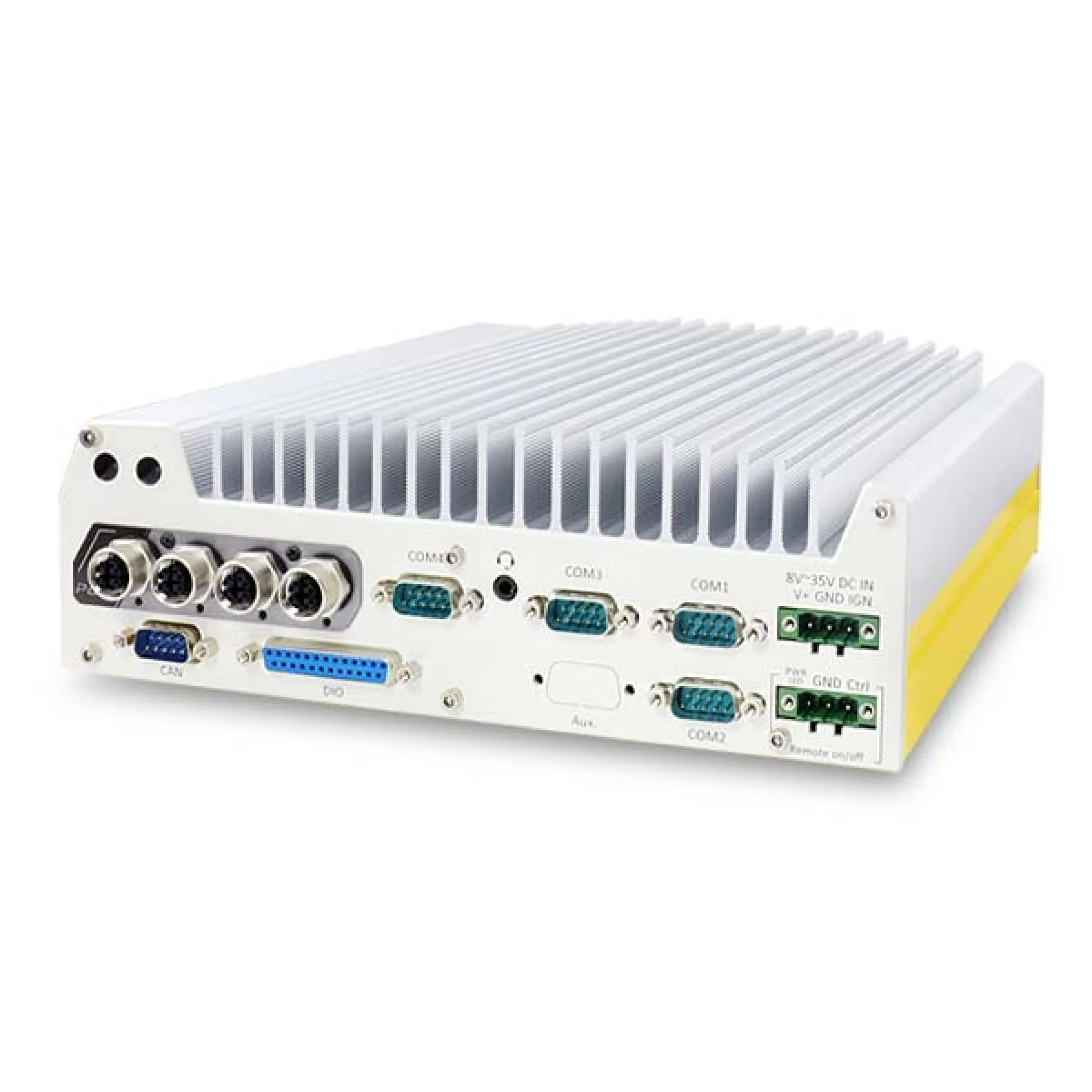

– M12 x-coded connector (Nuvo-7100VTC);

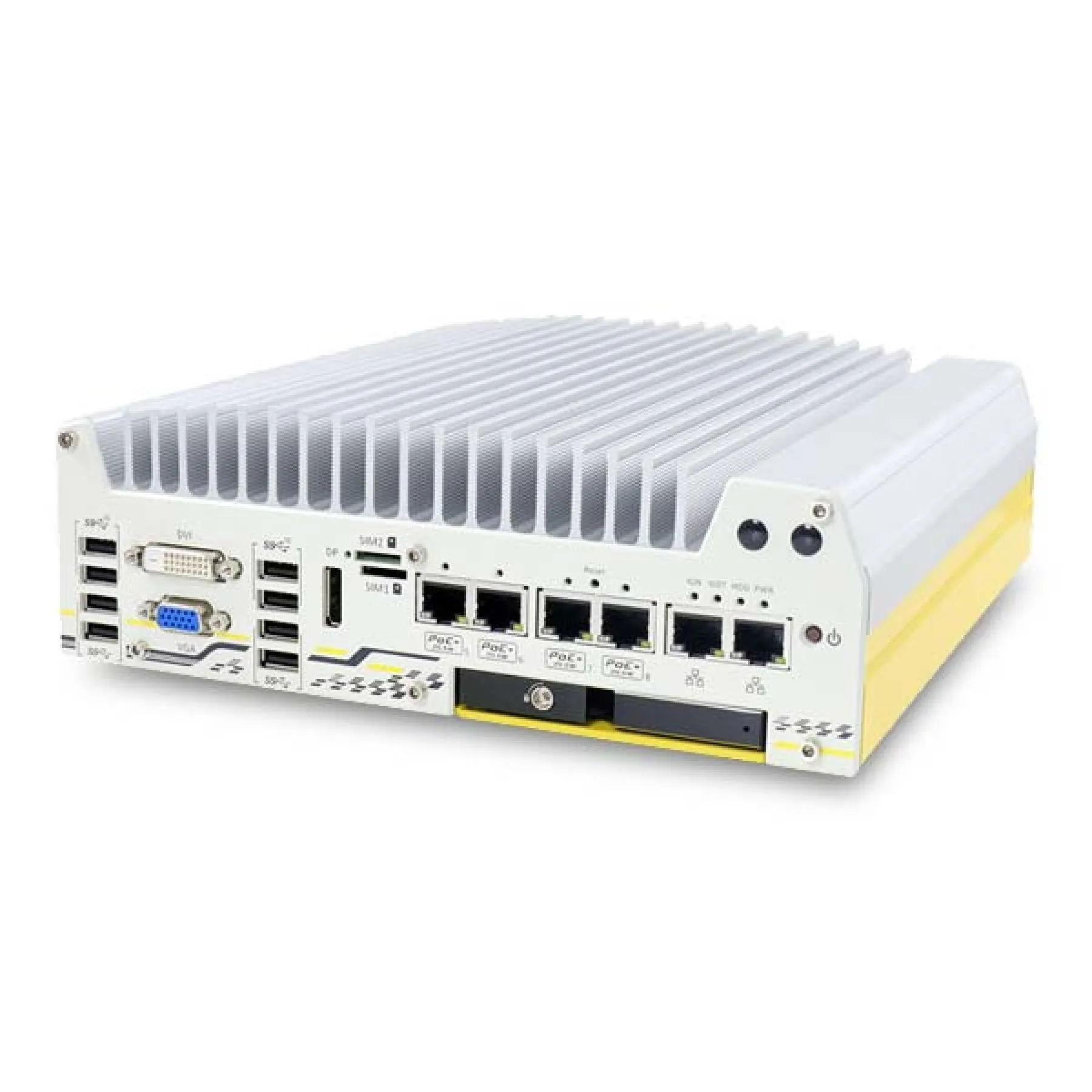

– RJ45 connector (Nuvo-7104VTC)
8x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210
– RJ45 connector (Nuvo-7108VTC)
CAN 1x isolated CAN 2.0 port
Isolated DIO 4x isolated DI and 4x isolated DO
USB 4x USB 3.1 Gen2 (10 Gbps) ports
4x USB 3.1 Gen1 (5 Gbps) ports
Video Port 1x VGA connector, supporting 1920 x 1200 resolution
1x DVI-D connector, supporting 1920 x 1200 resolution
1x DisplayPort connector, supporting 4096 x 2304 resolution
Serial Port 2x software-programmable RS-232/422/485 ports (COM1/ COM2)
2x RS-232 ports (COM3/ COM4)
Audio 1x Mic-in and 1x speaker-out
Storage Interface
SATA HDD 1x hot-swappable HDD tray for 2.5″ HDD/ SSD installation
1x Internal SATA port for 2.5″ HDD/ SSD installation, supporting RAID 0/ 1
mSATA 1x full-size mSATA port (mux with mini-PCIe)
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
Expansion Bus
Mini PCI-E 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA)
2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets
M.2 2x M.2 2242 B key socket, one with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module
Power Supply
DC Input 1x 3-pin pluggable terminal block for 8~35V DC input (IGN/ GND/ V+)
Remote Ctrl. & 1x 3-pin pluggable terminal block for remote control and PWR LED output
Status Output
Mechanical
Dimension 240 mm (W) x 225 mm (D) x 84 mm (H)
Weight 3.5 Kg
Mounting Neousys’ patented damping bracket (standard) or optional DIN-rail mounting
Environmental
Operating Temperature -40°C ~ 70°C **
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC EN 50155 (Nuvo-7100VTC),
E-Mark (Nuvo-7108VTC)
CE/FCC Class A, according to EN 55022 & EN 55024
Processor Type Intel Core, up to 6 Cores
GPU Integrated GPU
Memory Capacity Up to 64GB
Serial Ports (COM) 2x RS-232/422/485, 2x RS-232
USB Ports 8x USB 3.1
Ethernet Ports (LAN) 6x 1G
Power Over Ethernet (PoE) PoE Ports
Wireless Cellular, Wi-Fi
CAN Bus Yes
Video Ports 1x DisplayPort, 1x VGA, 1x DVI
Digital I/O 8 DIO
Audio Yes
Storage Type 1x mSATA, 1x M.2, 2x 2.5"
Expansion Type 2x M.2, 3x Mini PCI Express, 5
Input Voltage 8-35 VDC
Mounting Options Damping Bracket, DIN-mount, Wall-mount
Operating Temperature Extra-Wide OT: -40°C to 70°C
Market Certifications CE/FCC, E-Mark, EN 50155, MIL-STD
OS Support Linux, Windows 10, Windows 11
