MB330-CRM

DFI

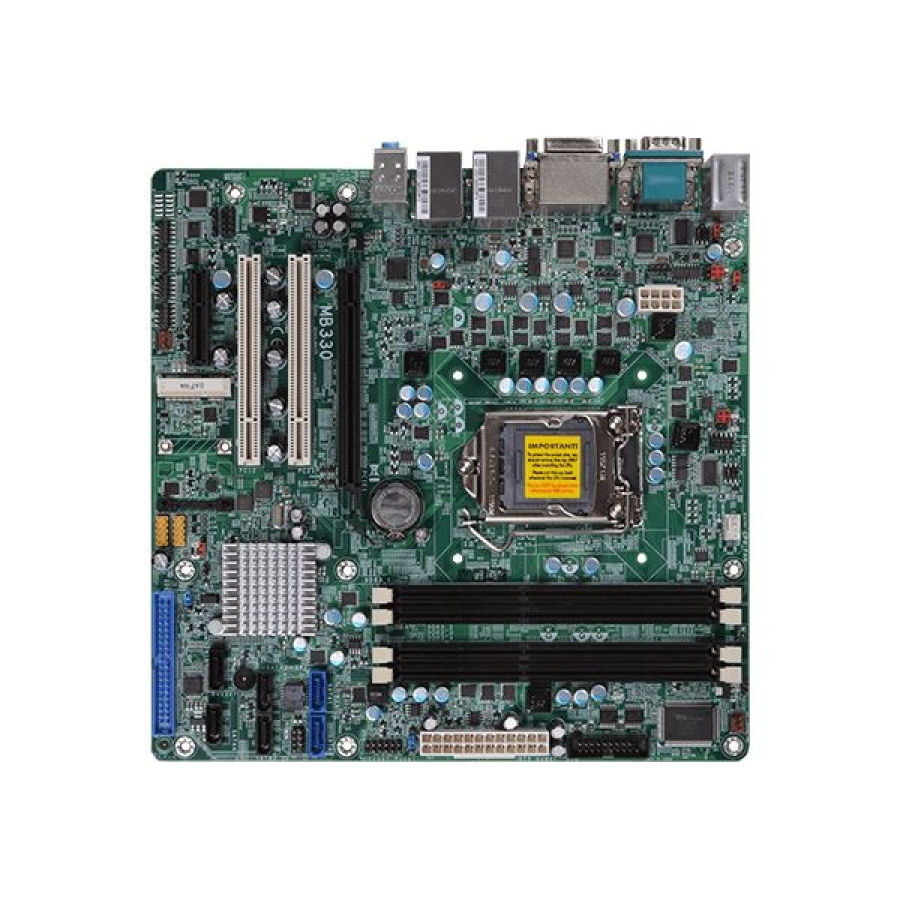

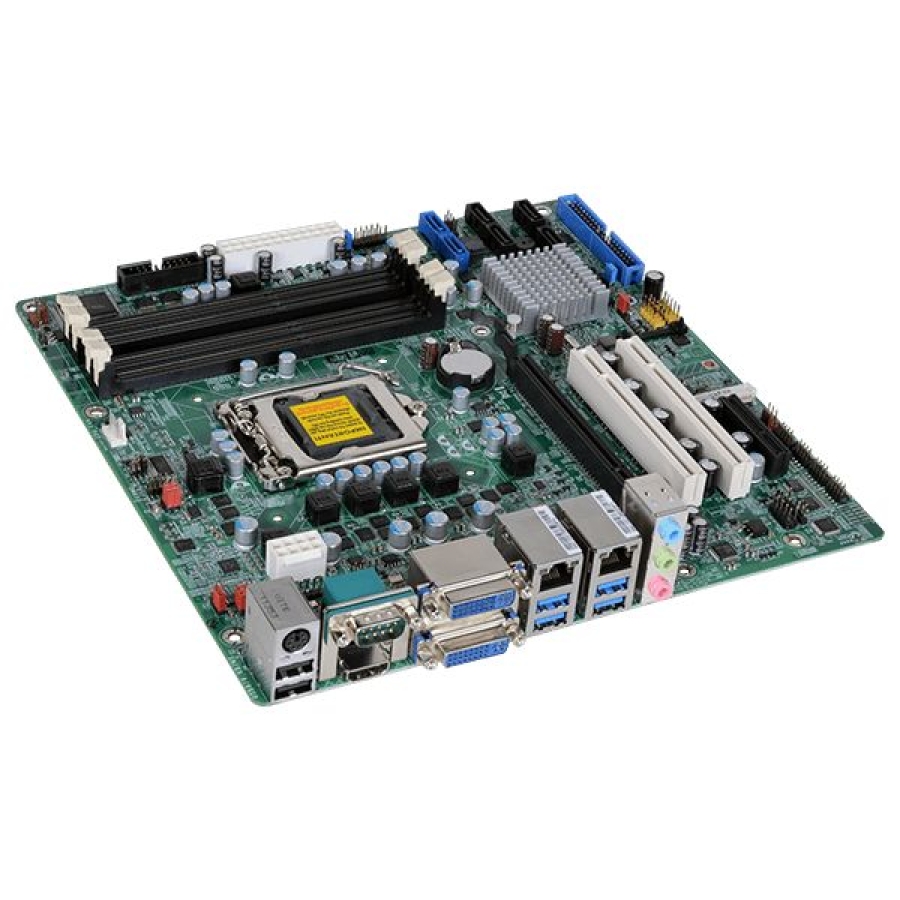

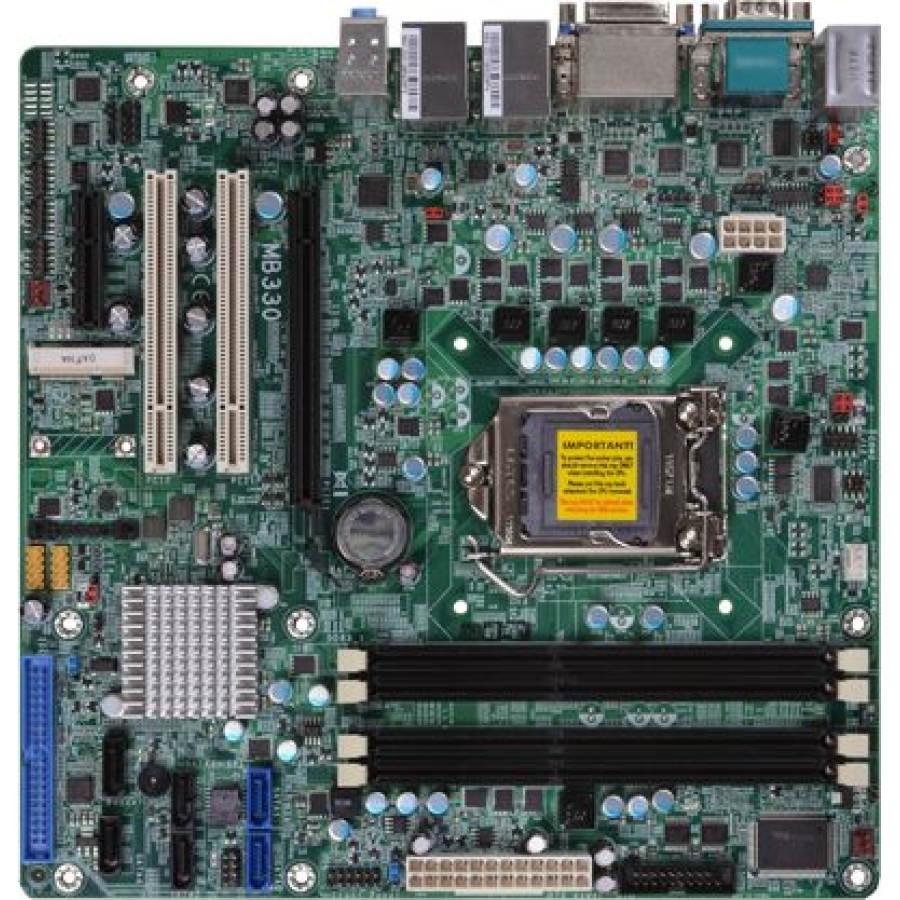

DFI MB330-CRM Micro ATX Intel Q77 i3/i5/i7 M/board with 4 slots (Triple Display)

End of Life

Our range of industrial Micro ATX boards are designed for use within industrial applications where reliable performance, long time availability and strict revision control are important factors. The MB330-CRM from DFI is based around the Intel Q77 chipset and supports a full range of 3rd generation Intel Core i CPUs, all featuring new technology providing higher performance at lower power than previous processors. This scalable desktop platform supports up to 32GB DDR3 memory and 2 Gigabit LAN for increased transmission speed. The Intel Q77 chipset used on this microATX embedded board delivers high performance I/O, providing 6 SATA ports (2 x SATA 3.0, 4 x SATA 2.0) with speed up to 6Gb/s, 10 USB ports (4 x USB 3.0), 6 Serial COM ports, and 8-bit digital I/O for device control. Three independent displays are available through the HDMI, and 2 x DVI ports. The MB330-CRM offers additional expansion capability via 2 x PCI, 1 x PCIe[x16] and 1 x PCIe[4], alongside a Mini PCIe slot.

  • Brand: DFI
  • Intel 3rd Gen Core i7/i5/i3 CPU options
  • Long term availability
  • 10 USB ports
  • Three independent displays
  • 244mm (L) x 244mm (W)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

Our range of industrial Micro ATX boards are designed for use within industrial applications where reliable performance, long time availability and strict revision control are important factors. The MB330-CRM from DFI is based around the Intel Q77 chipset and supports a full range of 3rd generation Intel Core i CPUs, all featuring new technology providing higher performance at lower power than previous processors. This scalable desktop platform supports up to 32GB DDR3 memory and 2 Gigabit LAN for increased transmission speed. The Intel Q77 chipset used on this microATX embedded board delivers high performance I/O, providing 6 SATA ports (2 x SATA 3.0, 4 x SATA 2.0) with speed up to 6Gb/s, 10 USB ports (4 x USB 3.0), 6 Serial COM ports, and 8-bit digital I/O for device control. Three independent displays are available through the HDMI, and 2 x DVI ports. The MB330-CRM offers additional expansion capability via 2 x PCI, 1 x PCIe[x16] and 1 x PCIe[4], alongside a Mini PCIe slot.

Ordering Info

  • MB330-CRM: Micro ATX 3rd Generation Core i7 i5 i3 Motherboard with 4 x expansion slots (3 x Independent Displays)

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • microATX form factor (244mm x 244mm)
  • Intel Q77 Chipset
  • Intel HD 4000 GPU (with 3rd Generation Core i CPUs only)
  • Up to 32GB DDR3 Memory
  • DVI, VGA and LVDS interfaces
  • (3 x Independent Displays)
  • 2 Gigabit LAN controllers
  • 6 COM ports
  • 10 USB 2.0 ports (4 x USB 3.0)
  • 6 SATA interfaces (2 x SATA 3.0, 4 x SATA 2.0)
  • 8-bit Digital I/O
  • HD audio support via S/PDIF Input/Output
  • 2 PCI slots
  • 1 PCIe x16 slots
  • 1 PCIe x4 slots
  • 1 x Mini PCIe
