PWR-PS5

MAQ20 Power Supply for MAQ20

End of Life

MAQ20 Power Supply for MAQ20 DAQ & Control System from Assured Systems.

  • 7.5W 24V DC power supply for MAQ20
  • 15W 24V DC power supply for MAQ20
  • 30W 24V DC power supply for MAQ20
  • 50W 24V DC power supply for MAQ20
  • 100W 24V DC power supply for MAQ20

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

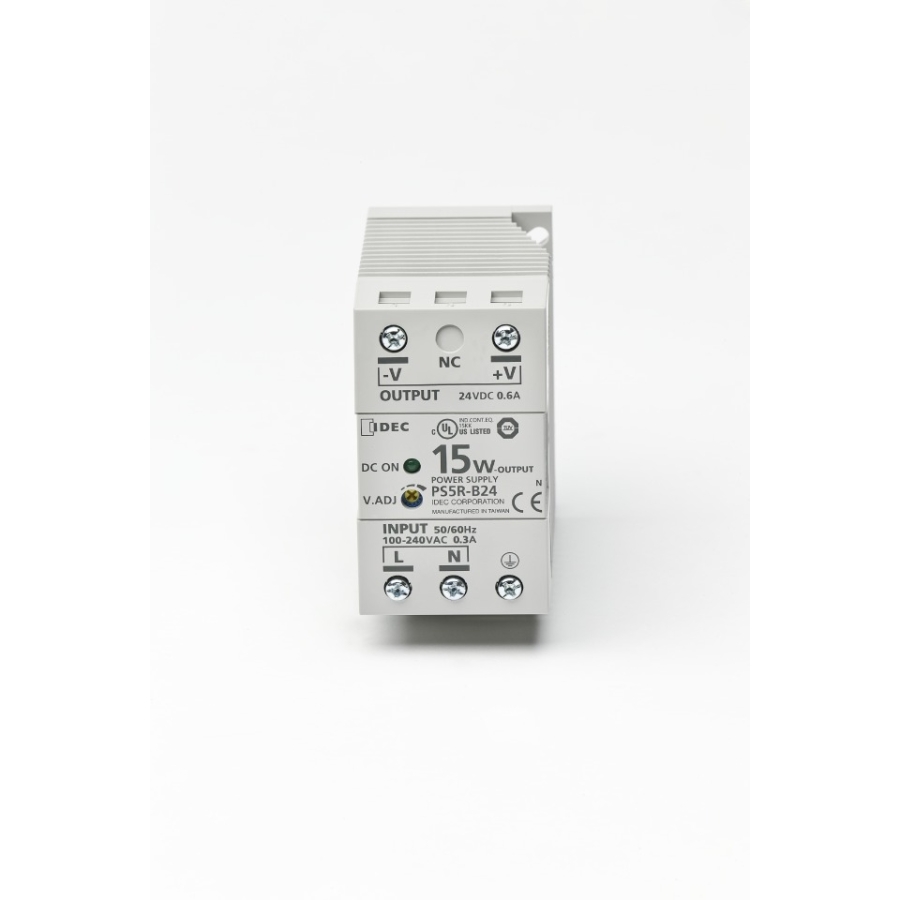

The PWR-PS5R is a rugged, compact power supply, incorporating all international standard and approvals, and offering users a broad selection of inputs and outputs. Anywhere from 7.5w to 100w with 24v DC output to suit your requirements.

Ordering Info

Communication Modules:

  • MAQ20-COM2 communcation module: RS-232, Ethernet & USB
  • MAQ20-COM4 communication module: RS-485, Ethernet & USB

Analog Input Modules:

  • MAQ20-VSN – 16 channel single ended voltage input module for MAQ20
  • MAQ20-VDN – 8 channel differential voltage input module for MAQ20
  • MAQ20-MVDN – 8 channel differential millivoltage input module for MAQ20
  • MAQ20-ISN – 16 channel single ended current input module for MAQ20
  • MAQ20-IDN – 8 channel differential current input module for MAQ20
  • MAQ20-JTC – 8 channel type J thermocouple input module for MAQ20
  • MAQ20-KTC – 8 channel type K thermocouple input module for MAQ20
  • MAQ20-RSTC – 8 channel type R & S thermocouple input module for MAQ20
  • MAQ20-RTD31 – 6 channel 2- or 3-wire RTD & potentiometer input module for MAQ20
  • MAQ20-BRDG1 – 4 channel bridge / strain gauge module for MAQ20

Analog Output Modules:

  • MAQ20-IO – 8 channel current output module for MAQ20
  • MAQ20-VO – 8 channel voltage output module for MAQ20

Digital I/O Modules:

  • MAQ20-DIOL – 5 channel digital I/O module w/ 90-280V AC/DC input for MAQ20
  • MAQ20-DIOH – 5 channel digital I/O module w/ 3-60V AC/DC input for MAQ20

Backbones:

  • MAQ20-BKPL4 – 4 I/O module & 1 communication module backbone for MAQ20
  • MAQ20-BKPL8 – 8 I/O module & 1 communication module backbone for MAQ20
  • MAQ20-BKPL16 – 16 I/O module & 1 communication module backbone for MAQ20
  • MAQ20-BKPL24 – 24 I/O module & 1 communication module backbone for MAQ20
  • MAQ20-XCA –  Backbone expansion cable for MAQ20

Power Supplies:

  • PWR-PS5RA – 7.5W 24V DC power supply for MAQ20
  • PWR-PS5RB – 15W 24V DC power supply for MAQ20
  • PWR-PS5RC – 30W 24V DC power supply for MAQ20
  • PWR-PS5RD – 50W 24V DC power supply for MAQ20
  • PWR-PS5RE – 100W 24V DC power supply for MAQ20
  • MAQ20-PWR3 – Load share power supply module w/ 5V DC at 3A for MAQ20

Software:

  • MAQ20-940 – ReDAQ Shape
  • MAQ20-951 – IPEmotion

Note: LabVIEW and any OPC client software is also supported via MAQ20

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • 7.5W 24V DC power supply for MAQ20
  • 15W 24V DC power supply for MAQ20
  • 30W 24V DC power supply for MAQ20
  • 50W 24V DC power supply for MAQ20
  • 100W 24V DC power supply for MAQ20
