SSH4956-B

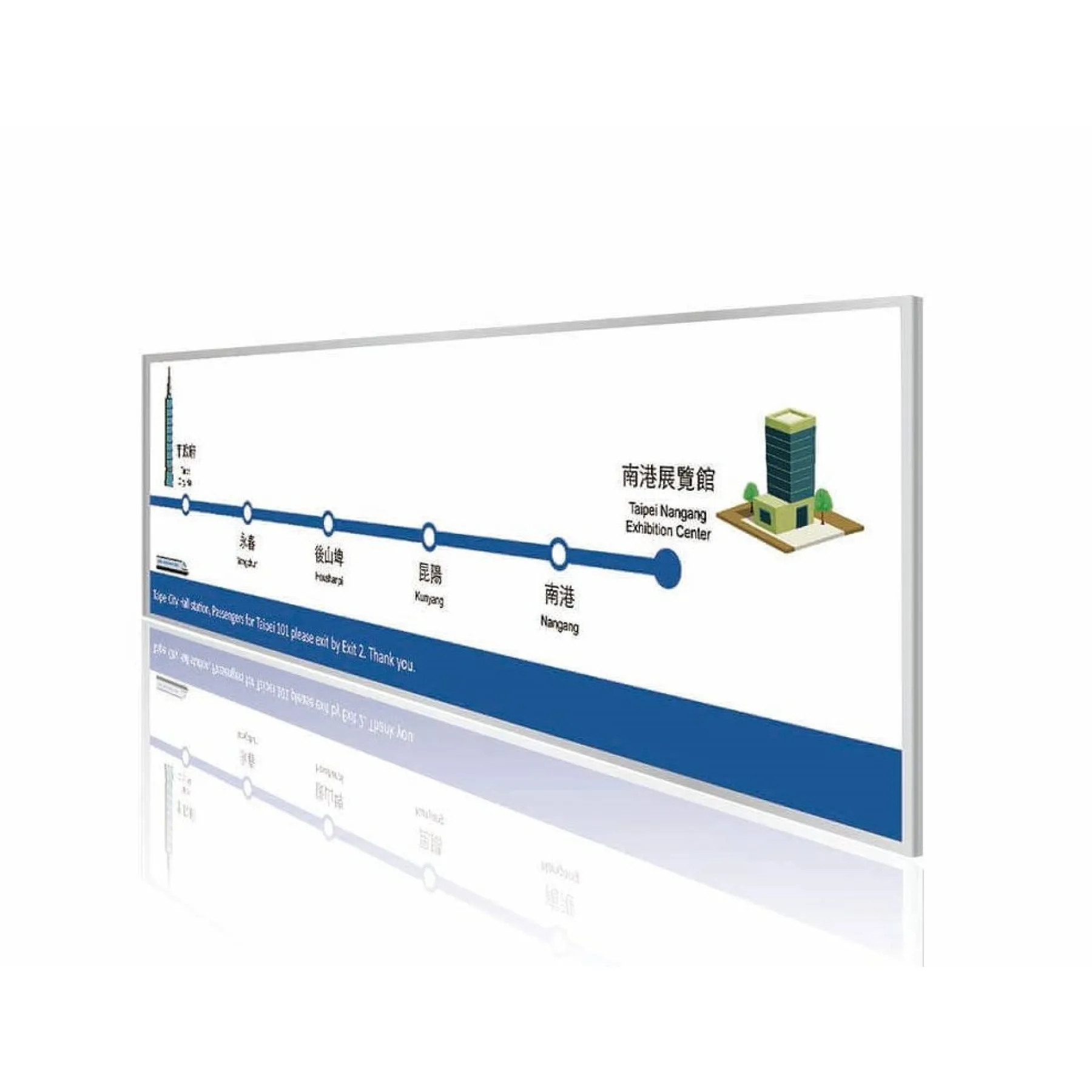

Litemax SSH4956-B 49.5″ Stretched LCD Display Kit (1920×538) 1200 NITS

SSH4956-B

  • 49.5″ Stretched LCD Display w/ AD Board
  • 1200 Nits Brightness
  • 1920 x 538 Resolution
  • 16:4.5 Aspect Ratio
  • Size: 1244.6mm (W) x 378.7mm (H) x 27.6mm (D)
-
+

Details

Litemax SSH4956-B Stretched LCD Display Kits have a 1920x538 resolution providing a 16:4.5 aspect ratio. The high bright LED backlit display provides over 1000 nits of brightness making the screen sunlight readable for outdoor applications.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model name SSH4956-B
Description 49.5″ Resizing LCD, 1200 nits LED backlight, 1920×538
Size 49.5″
Display area (mm) 1209.6(H) x 338.9(V)
Brightness 1200 cd/m²
Resolution 1920×538
Aspect ratio 16:4.5
Contrast ratio 1500:1
Pixel pitch (mm) 0.63 (H) x 0.63 (V)
Pixel per inch (PPI) 40
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 81%
Display colors 16.7m
Response time (Typical) 8ms
Video interface VGA, DVI-D, HDMI
Input power AC 100~240V
Power consumption 99.7w
Dimensions (mm) 1244.6×378.7×27.6
Bezel size (U/B/L/R) 17.9/17.9/15.5/15.5
Weight (Net) 11.5kg
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, color, contrast, H/V position… etc
Operating temperature 0°C ~ +50°C
Storage temperature -20°C ~ +60°C
Screen Size 41" to 50", 49.5"
Brightness 1200nit, High
