SSH1916-A

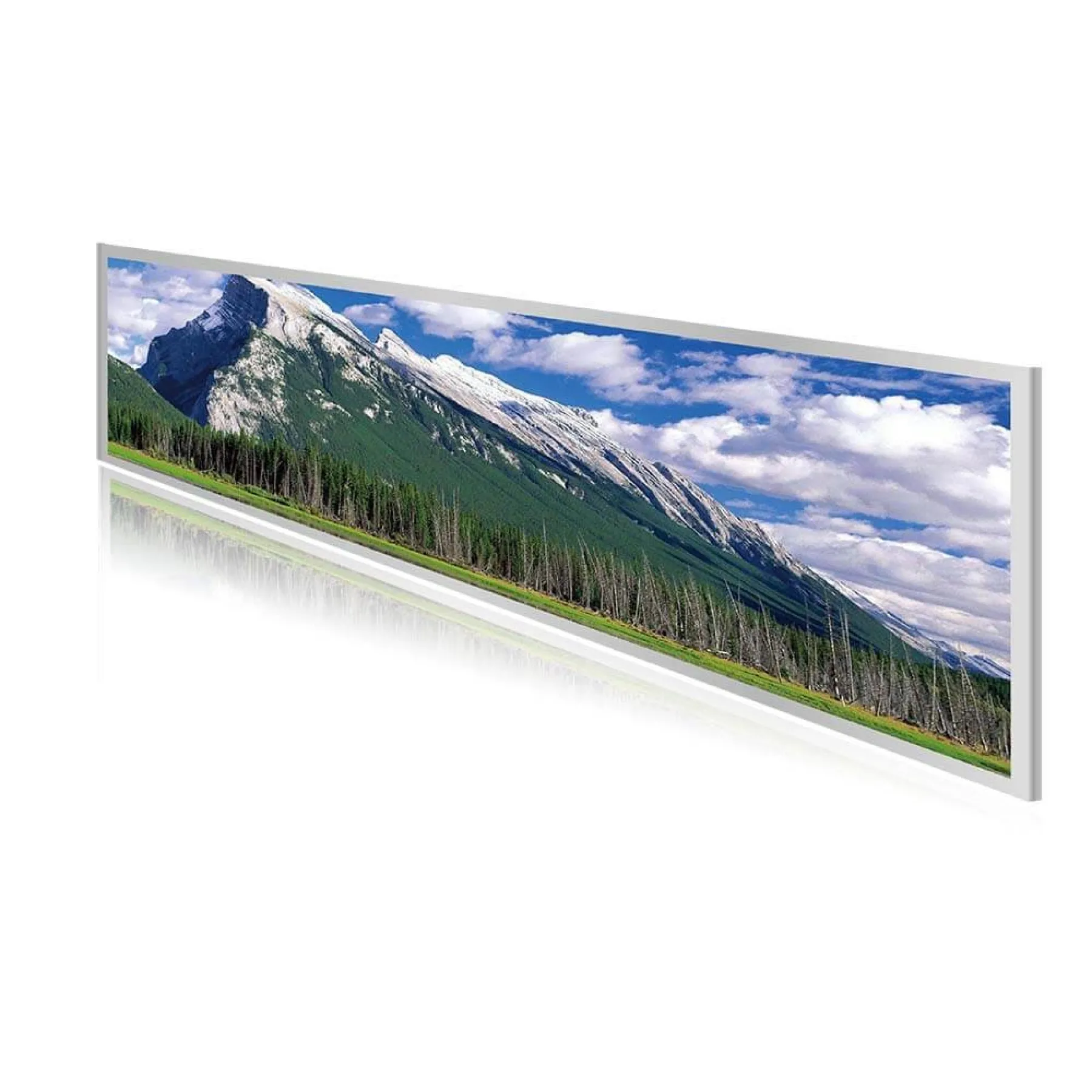

Litemax SSH1916-A 19.1″ Stretched LCD Display Kit (1920×388) 1200 NITS

SSH1916-A

  • 19″ Stretched LCD Display w/ AD Board
  • 1200 Nits Brightness
  • 1920 x 388 Resolution
  • 16:3.2 Aspect Ratio
  • Size: 497.6mm (W) x 121.3mm (H) x 16.55mm (D)
-
+

Details

Litemax SSH1916-A Stretched LCD Display Kits have a 1920x388 resolution providing a 16:3.2 aspect ratio. The high bright LED backlit display provides over 1000 nits of brightness making the screen sunlight readable for outdoor applications.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Model name SSH1916-A
Description 19.1″ Resizing LCD, 1200 nits LED backlight, 1920×388
Size 19.1″
Display area (mm) 476.6(H) x 96.3(V)
Brightness 1200 cd/m²
Resolution 1920×388
Aspect ratio 16:03.2
Contrast ratio 3000:01:00
Pixel pitch (mm) 0.248 (H) x 0.248 (V)
Pixel per inch (PPI) 102
Viewing angle 178° (H), 178° (V)
Color saturation (NTSC) 84%
Display colors 16.7M
Response time (Typical) 25ms
Video interface VGA, DVI-D, HDMI
Input power DC12V
Power consumption 23w
Dimensions (mm) 497.6×121.3×16.55
Bezel size (U/B/L/R) 10.35/10.35/8.9/8.9
Weight (Net) 1kg
OSD key 4 keys (Power switch, menu, +, -)
OSD control Brightness, color, contrast, H/V position… etc
Screen Size 11" to 20", 19.1"
Brightness 1200nit, High
