SLD0705-T

7″ TFT LCD, 1000 nits LED backlight (1280×800)

SLD0705-T

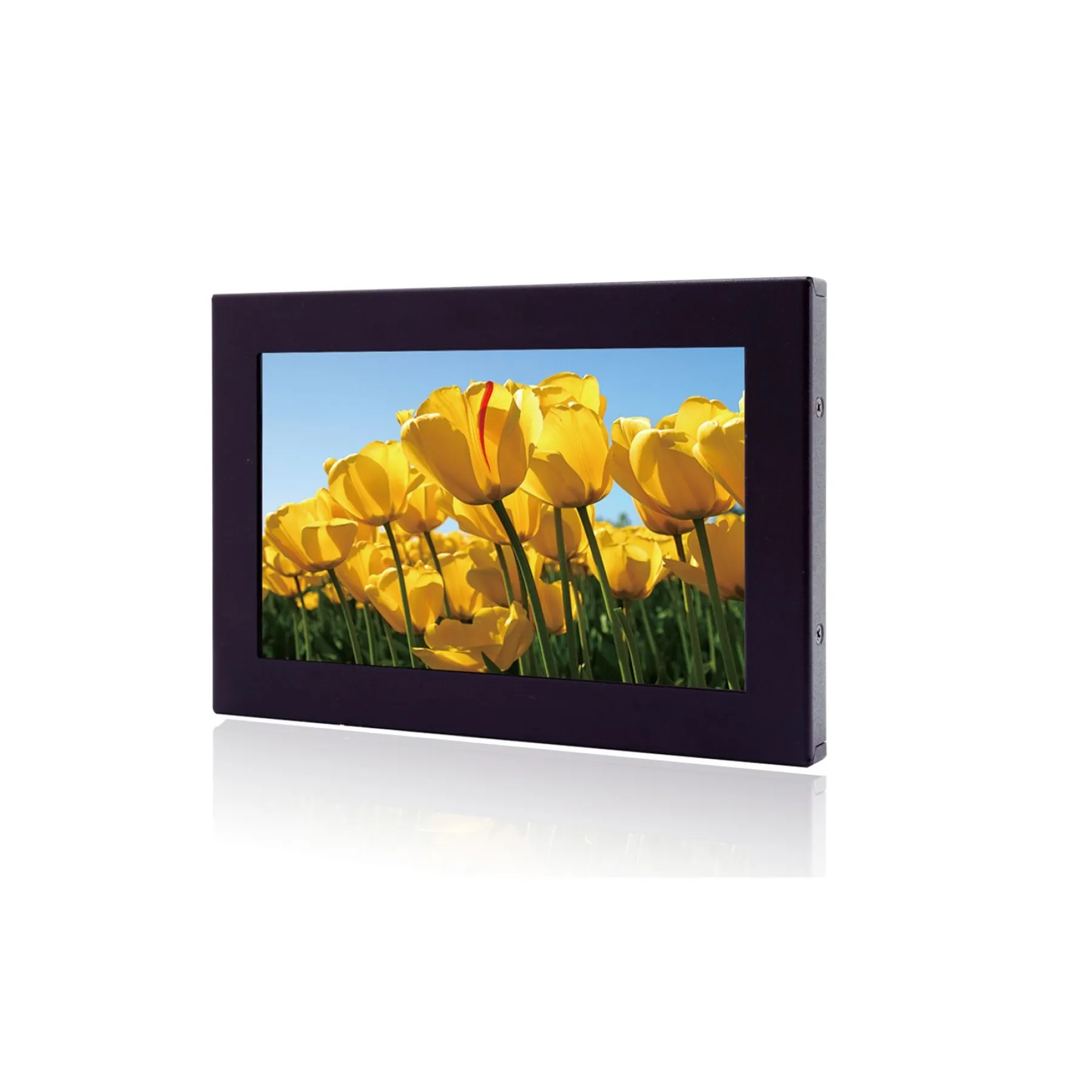

The Durapixel 7" sunlight readable LCD Monitor from Litemax is powered by a strong array of LED backlights, achieving a brightness of 1000 NITS. The display is perfectly suited to outdoor environments, or applications where there are high ambient light conditions such as kiosk, ATM, POS, mobile, military, marine or digital signage.

  • Brand: Litemax
  • 1280 x 800 resolution
  • 1000 NITS brightness
  • Size: 161mm (W) x 107mm (H) x 4.5mm (D)
-
+

Details

The Durapixel 7" sunlight readable LCD Monitor from Litemax has a brightness of 1000 NITS with a screen resolution of 1280x800. By incorporating the latest LED backlight technology the screen has a 100,000 hours MTBF whilst keeping power consumption levels down to a minimum. The display also has a wide operating temperature of between -20°C~70°C so is suited for applications where high ambient light and extreme temperature change is a factor. This can be in for applications such as kiosk, ATM, POS, mobile, military, marine or digital signage.

Ordering Info

  • DLF0705-T – 7″ TFT LCD, 1000 nits LED backlight, 1280×800 Panel Mount
  • DLH0705-T – 7″ TFT LCD, 1000 nits LED backlight, 1280×800 Kit
  • SLD0705-T – 7″ TFT LCD, 1000 nits LED backlight, 1280×800 Chassis

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Viewable Image Size: 149.76mm x 93.6mm
  • Resolution: 1280×800
  • Aspect Ratio: 16:10
  • Brightness: 1000cd/m
  • Contrast: 800:1
  • Viewing Angle: 176° (H), 176° (V)
  • Mounting: Kit, Panel Mount, Chassis
  • Backlight: LED
  • Interface: LVDS, VGA, DVI-D, HDMI
  • Touchscreen: Optional
  • Power: 12VDC with AC Adaptor
Screen Size 1" to 10", 7"
Brightness 1000nit, High

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

Litemax: Warranty and Service Information

Assured Systems are proud partners of Litemax, offering a 2 year warranty with all Litemax products distributed in the EMEA. Extended warranty options are available upon request.
