AS-PT5(i)

Indoor Full Colour LED Module with 5mm Pixel Pitch

End of Life

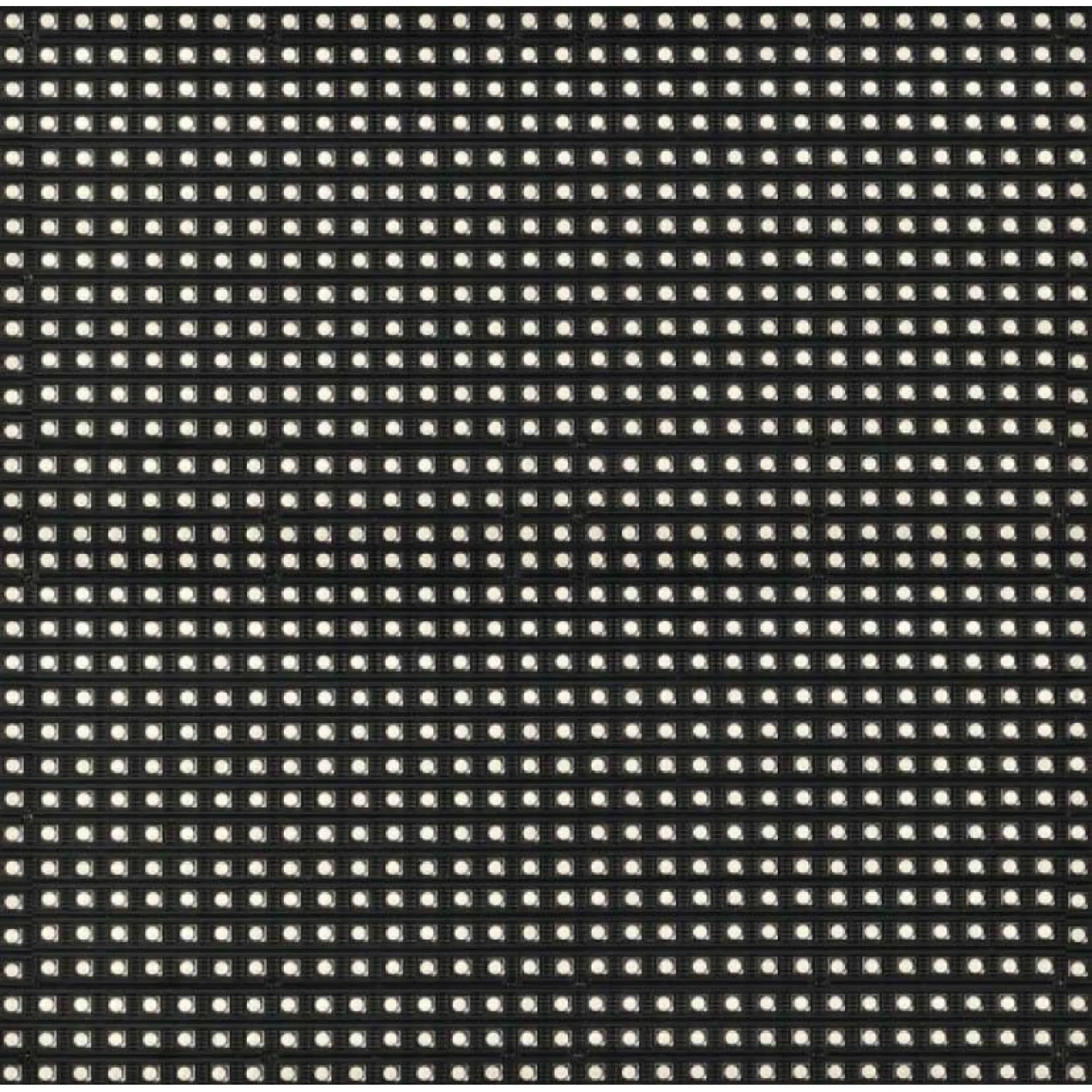

These square LED tiles fix securely and flush to each other, allowing you to have a display as large as your imagination and budget allow. The tiles are a convenient building block shape to realise medium or large sized visual concepts. With a pixel pitch of 5mm the AS-Pt5(i) produces high resolution images with breathtaking clarity and colour reproduction to make any promotional or information content engage viewers. Available in modules that can be custom configured in almost any shape and size, the 5mm LED large screen will light up any indoor application. The module uses the latest in LED technology to assure your images are seen in their best light- and in any light – with the ability to accurately reproduce 281 trillion colors. The AS-Pt5(i) comes as a square module of 160 x 160 LEDs giving a tile resolution of 32 x 32. The density of dots per metre squared is 40,000 giving an optimum viewing distance of 6 – 50m, making this module a cost-effective choice for quality indoor content display. Assured Systems provide advice on all LED applications from pixel proximity to durability requirements and installation. Give us a call to discuss your ideas and we will find the solution to turn your concepts into reality.

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

These square LED tiles fix securely and flush to each other, allowing you to have a display as large as your imagination and budget allow. The tiles are a convenient building block shape to realise medium or large sized visual concepts. With a pixel pitch of 5mm the AS-Pt5(i) produces high resolution images with breathtaking clarity and colour reproduction to make any promotional or information content engage viewers. Available in modules that can be custom configured in almost any shape and size, the 5mm LED large screen will light up any indoor application. The module uses the latest in LED technology to assure your images are seen in their best light- and in any light – with the ability to accurately reproduce 281 trillion colors. The AS-Pt5(i) comes as a square module of 160 x 160 LEDs giving a tile resolution of 32 x 32. The density of dots per metre squared is 40,000 giving an optimum viewing distance of 6 - 50m, making this module a cost-effective choice for quality indoor content display. Assured Systems provide advice on all LED applications from pixel proximity to durability requirements and installation. Give us a call to discuss your ideas and we will find the solution to turn your concepts into reality.

Ordering Info

Please call 01785 879 050 to discuss technical requirements

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

Pixel Proximity – 5mm Module Size – 160 x 160 Tile Resolution – 32 x 32 Density (dot/m²) – 40,000 Optimum Viewing Distance – 6m-50m Average Power Consumption (w/m²) – 450 Brightness (cd/m²) – >=1800 Optimum viewing angle – 120°/120° Operating Temp – -20°C to +55°C Ingress Protection – IP31 Lifetime – >100,000 hrs
