eBOX530-840-FL

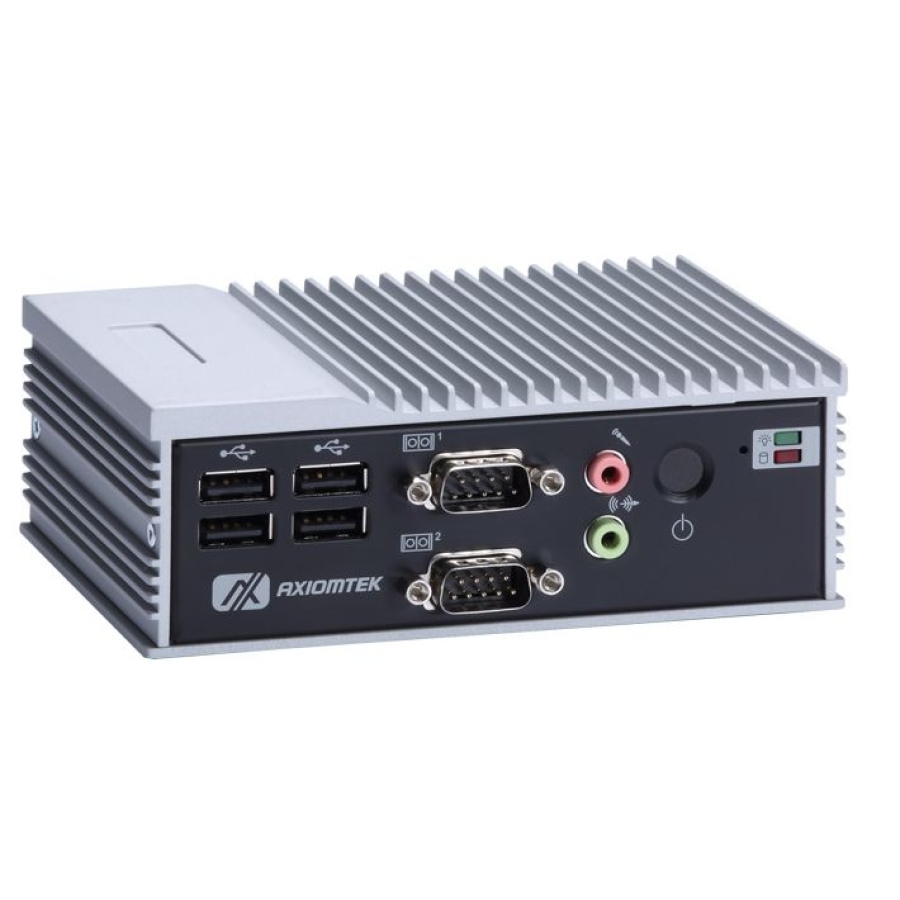

Axiomtek eBOX530-840-FL Intel Atom E3825, Fanless Embedded Box PC

End of Life

The eBOX530-840-FL is a rugged embedded computer system with an Intel Atom dual core processor E3825 (Bay Trail) accompanied with DDR3L memory for onboard up to 8GB

  •  Intel Atom E3825 1.33 GHz dual core
  • Fanless operation design with full feature I/O
  • 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
  • 2 x COM ports, 1 x GbE LAN and 1 x Mini PCIe slot
  • Supports one AT/ATX mode quick switch
  • Supports Jumbo Frame (9k), WoL, PXE Remote Boot

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The Axiomtek eBOX530-840-FL is a rugged embedded computer system with an Intel Atom dual core processor E3825 (Bay Trail) accompanied with DDR3L memory onboard up to 8GB.  Its rugged nature is further enhanced with aluminum extrusion build process for the enclosure and an IP40 rating provides guaranteed protection from dust ingress and foreign bodies- ideal for industrial/ manufacturing environments. Its fanless, cableless and thermal design entail a solution allowing it to operate silently in temperatures from -20°C to 60°C in extreme environments making it ideal for digital signage, automation, medical installations, control and monitoring and a whole lot more!

Ordering Info

  • eBOX530-840-FL-E3825-VGA-USFanless embedded system with Intel Atom E3825 1.33 GHz, VGA, GbE LAN, 4 USB, 2 COM, 36W AC/DC adapter and US power cord
  • eBOX530-840-FL-E3825-VGA-EUFanless embedded system with Intel Atom E3825 1.33 GHz, VGA, GbE LAN, 4 USB, 2 COM, 36W AC/DC adapter and EU power cord
  • eBOX530-840-FL-E3825-HDMI-USFanless embedded system with Intel Atom E3825 1.33 GHz, HDMI, GbE LAN, 4 USB, 2 COM, 36W AC/DC adapter and US power cord
  • eBOX530-840-FL-E3825-HDMI-EUFanless embedded system with Intel Atom E3825 1.33 GHz, HDMI, GbE LAN, 4 USB, 2 COM, 36W AC/DC adapter and EU power cord

Please call our technical sales team on 01785 87 90 50 (UK) or 0864 421 6991 (US) for advice.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU: Intel Atom Processor E3825 1.33 GHz dual core onboard
Chipset: SoC Integrated
System Memory: 1 x 204-pin SO-DIMM DDR3L-1066/1333 up to 8 GB
BIOS: AMI
COM: 2 x RS-232/422/485
USB: 4 x USB 2.0
Ethernet: 1 x 10/100/1000Mbps (Intel i210IT)
Display: 1 x HDMI or 1 x VGA
Digital I/O: N/A
Audio: MIC_in/Line_out
Storage: 1 x 2.5” SATA HDD bay (max. height 9.5mm) 1 x mSATA
Expansion: 1 x Full-size PCI Express Mini Card slot with mSATA supported (PCI Express + USB signal)
Others: 2 x SMA type connector opening for antenna
Power Supply Input: AC100~240V, AC 36W adapter with lock, Output: +12VDC@3A
Watchdog Timer: 255 levels, 1 ~ 255 sec.
Construction: Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature -20°C ~ +60°C (-4°F ~ +140°F) (with W.T. HDD, DRAM)
Relative Humidity: 10% ~ 90%, non-condensing
Vibration: 3 Grms with SSD(5-500 Hz, X, Y, Z directions)
Dimensions: (W x D x H) 132 x 95.4 x 47.5 mm (5.19″ x 3.75″ x 1.87″)
Weight (net/gross): 0.5 kg (1.1 lb)/ 0.6 kg (1.32 lb)
Certification: CE
EOS Support: WES7,WE8S
Mounting: Wall mount, DIN-rail, VESA mount
