rBOX103-FL

Axiomtek rBOX103-FL DIN-Mount Intel Atom Z510/520PT Fanless Computer, 2 CAN

End of Life

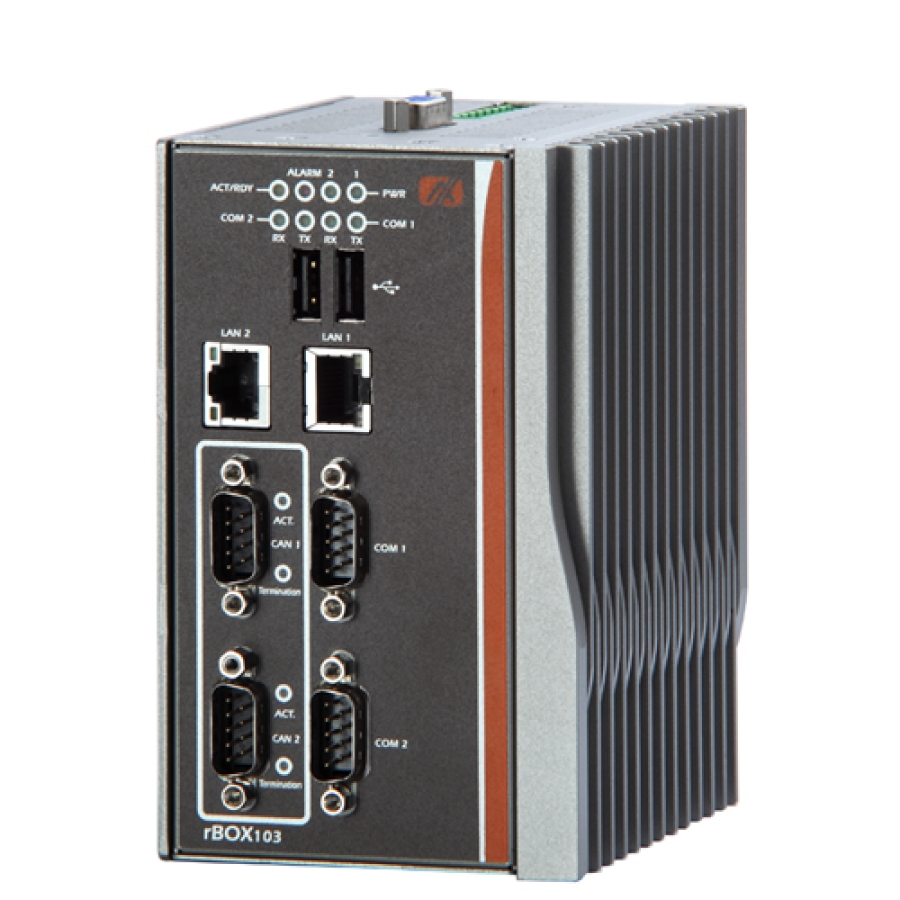

Axiomtek's rBOX103 DIN-rail fanless embedded system utilises Intel's acclaimed Atom Z510PT/Z520PT range of processors and is designed to withstand temperatures ranging from -40C to +70C.

  • Brand: Axiomtek
  • Intel Atom Z510PT 1.1 GHz or Z520PT 1.33 GHz CPU options
  • Wide operating temperature -40C ~ +70C
  • 2 x COM ports, 2 x USB ports, 1 x VGA port
  • 2 x 10/100Mbps Ethernet with Magnetic Isolation Protection
  • Size: 81mm (W) x 110mm (D) x 135mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

Axiomtek's rBOX103 DIN-rail fanless embedded system utilises Intel's acclaimed Atom Z510PT/Z520PT range of processors and is designed to withstand temperatures ranging from -40C to +70C. The cost-effective rBOX103 supports two isolated CAN 2.0 a/b ports, offering a great solution for applications requiring high-speed communications with error detection, such as vehicle control and monitoring solutions. Dual serial ports, high-speed LANs and USB 2.0 ports further enable fast and efficient data communication, control and acquisition.

Ordering Info

  • rBOX103-FL 1.1G: Fanless embedded system with Intel Atom processor Z510PT 1.1 GHz and 2 isolated CAN 2.0 a/b ports
  • rBOX103-FL 1.33G: Fanless embedded system with Intel Atom processor Z520PT 1.33 GHz and 2 isolated CAN 2.0 a/b ports

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • Fanless operation
  • Intel Atom processor Z510PT (1.1 GHz) or Z520PT (1.33 GHz)
  • Wide temperature operation -40C ~ +70C
  • Supports 2 isolated CAN 2.0 a/b ports
  • Supports 2 COM ports, 2 USB ports and VGA port
  • Supports two 10/100Mbps Ethernet with Magnetic Isolation Protection
  • SNMP V1/V2c
  • Supports CompactFlash
  • 48VDC power input with terminal block
  • Supports AXView monitoring software package
  • CE, FCC, UL508 Compliance
