KS070-M8M

DFI

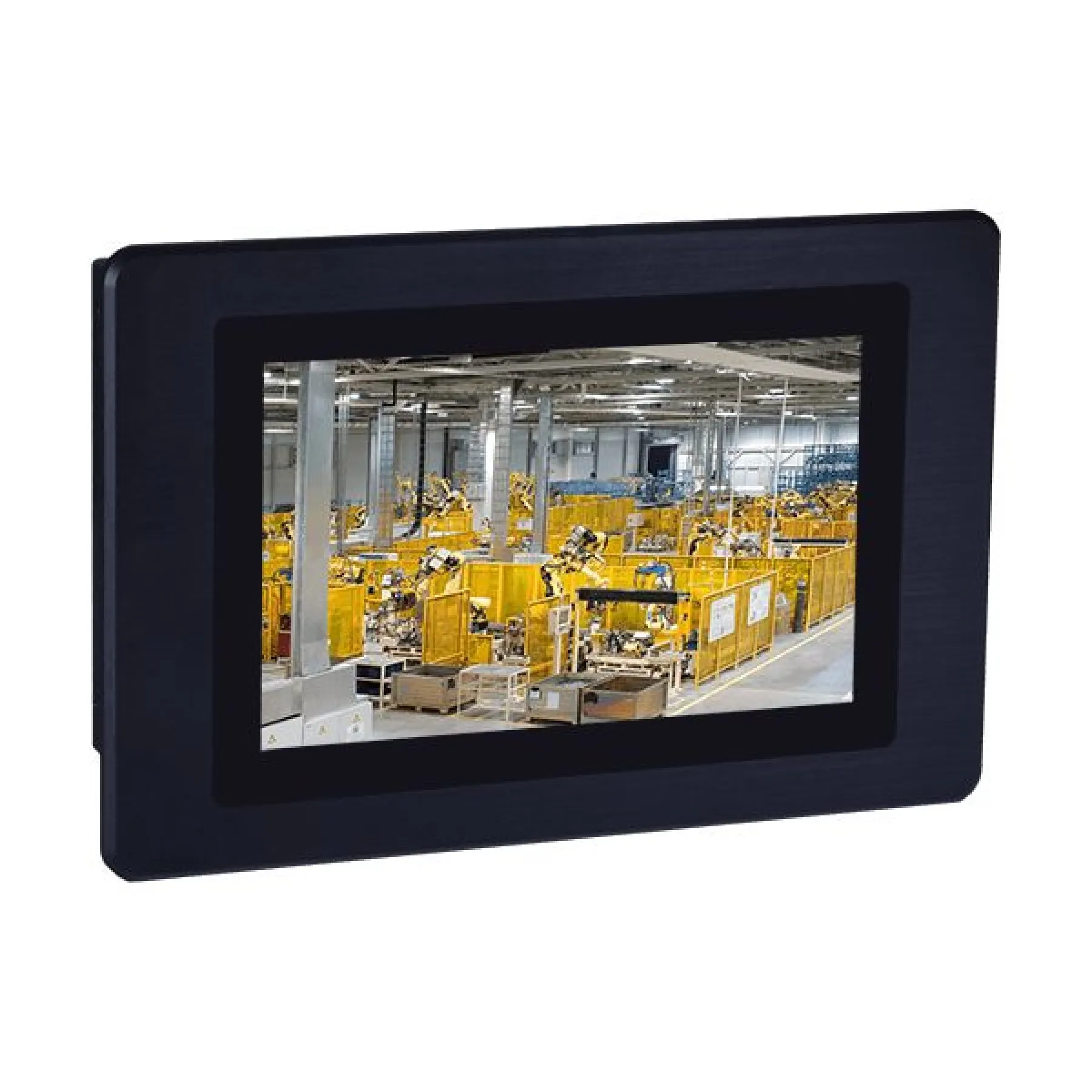

DFI KS070-M8M IP65 Front Panel NXP i.MX 8M Dual Cortex-A53 Touch Panel PC

KS070-M8M

  • NXP i.MX8M Platform
  • 2GB/4GB SDRAM Memory Down
  • 7″ 1024×600 TFT LCD Panel with capacitive touch screen
  • Multiple Expansion: M.2 2230/3042 support
  • IP65 front panel protection
-
+

Details

The KS070-M8M has a IP65 rated Front Panel with a 7# 1024 x 600 TFT LCD display with Capacitive Touch Screen, powered by a NXP i.MX8M processor with High-Speed LPDDR4 2GB/4GB SDRAM, offering multiple expansion (supporting M.2 2230/3042), Ethernet via GbE (RJ-45) 2 x Serial Ports and 2 x USB.  It also comes with 1 8-bit DIO supports Panel Mount, VESA and Din-rail mounting options.



Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

KSM070-M8M
Display Type  7” 1024×600 TFT LCD Panel with Capacitive Touch Screen
Max. Resolution 1024 x 600
Brightness (cd/m2) 425 cd/m²
Touch Type Projected Capacitive
Backlight Lifetime (hours) 50,000 hours
USB 2 x USB 3.1 (type A)
Buttons 1 x Power Switch
LED Indicators 1 x Power LED
Operating Temperature   0 to 60°C
Storage Temperature  -30 to 85°C
Relative Humidity 85%@65°C (non-condensing)
Processor NXP i.MX 8M Dual Cortex-A53, 1.5GHz
Memory 2GB/4GB SDRAM Memory Down Single Channel LPDDR4 1600MHz
Internal Storage 16GB eMMC1 x Internal Micro SD Socket
Expansion Interface 1 x M.2 B key 3042/2242 (USB 2.0)1 x M.2 E key 2230 (PCIe x1/USB 2.0)1 x Nano SIM slot (Optional)
Audio  1 x Line out
Serial 1 x RS-232/422/4851 x RS-485
Ethernet 1 x GbE (RJ-45)
DIO 1 x 8-bit DIO
Wi-Fi Antennas 2 x Wi-Fi Module Antenna Hole
Watchdog Timer Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds
Power Type 12V
Power Connector 2-Pole Terminal Block
OS Support Android 9.0 & Yocto 2.5
Construction Aluminum Front Bezel
IP Rating IP65 Front Panel Protection
Mounting Panel Mount/VESA Mount/DIN-rail (Optional)
Dimensions 235 x 150 x 43.8(W x H x D)
Weight TBD
Shock TBD
Vibration TBD
Certifications CE, FCC Class B
Packing List 1 Touch Panel PC1 Poron foam1 Quick Installation Guide
Screen Size 1" to 10", 7"
Touch Technology Projected Capactive
Ingress Protection IP65
Brightness 425nit, Standard
