HR908-B

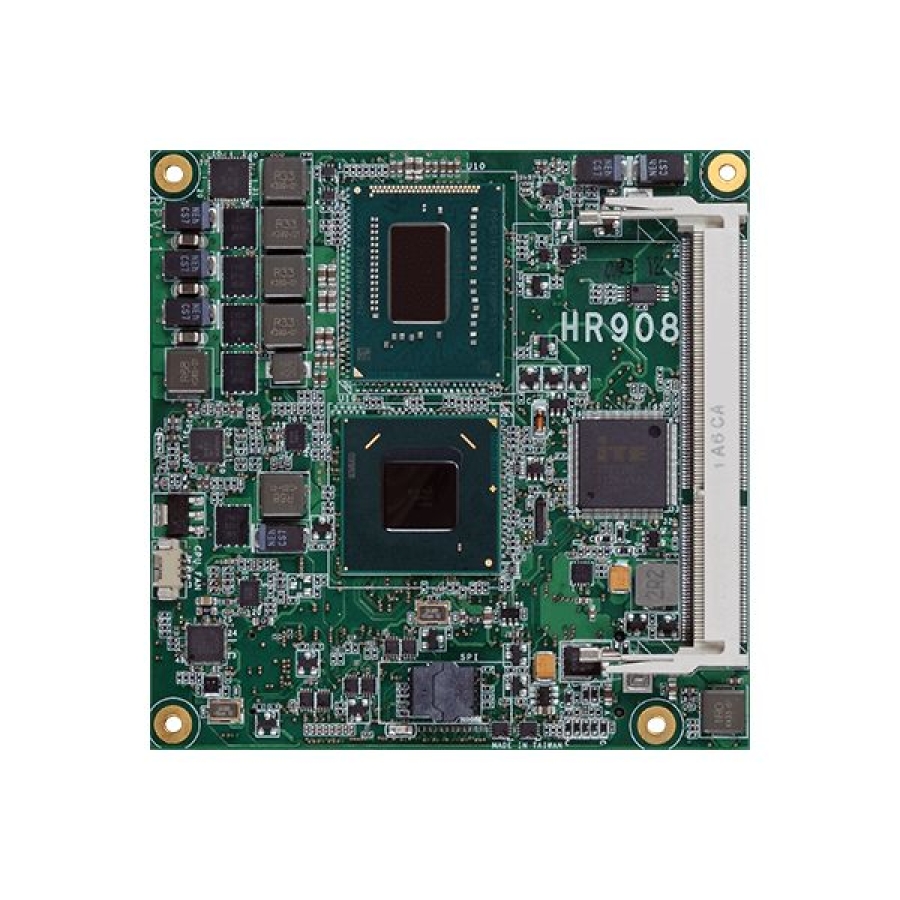

DFI HR908-B Type 6 with 3rd/2nd Gen Intel Core Processor & Intel QM77 Chipset

End of Life

  • 3rd/2nd Gen Intel® Core™, Intel® QM67 Chipset
  • Rich I/O: 1 Intel GbE, 8 x USB 2.0
  • Multiple expansion: 1 PCIe x16, 4 x SATA, 1 x LPC, 1 x I2C, 1 x SMBus
  • 1 x VGA, 1 x LVDS, 3 x DDI (HDMI/DVI/DP/SDVO)
  • Single channel DDR3L 1600MHz SODIMM up to 8GB
  • 7-Year CPU Life Cycle Support Until Q3′ 18(Based on Intel IOTG Roadmap)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

The DFI has Launched the HR908-B, in its Mobile product line based on the Intel® Core™ QM67 Express chipset. HR908-B is DFI's model that supports the low-power and cost-efficient 3rd/2nd generation Intel® Core™ and Intel® Celeron™ processors with BGA 1023 packaging technology. The supported processors are built on Intel's 22/32-nanometer process technology and also offer higher performance at lower power consumption than the 2nd generation processors which are also supported on this mobile platform. The integrated next-generation Intel® HD Graphics 4000/3000 engine supports high-end enhanced media and graphics capabilities and improves performance. The Intel® Clear Video Technology offers advanced imaging capabilities for Blu-Ray and other high definition video processing such as image stabilization, gamut mapping and frame rate conversion. Performance is further increased through the introduction of DirectX Video Acceleration(DXVA) for providing acceleration of complex audio,video, and image processing. Targeted at medical and gaming applications, HR908-B brings enhanced graphics performance with Graphics APIs, including DirectX 11/10.1/10/9, and OpenGL 3.0, to support 3 display outputs in any combinations of VGA, LVDS and DDI (HDMI, DVI and Display Port) interfaces allowing you to choose the best combination to suit various requirements. In system memory, the HR908-B mobile platform is equipped with one 204-pin DDR3/DDR3L SODIMM socket supported by DRAM device technologies for x8 and x16 devices to deliver maximum performance up to 8GB at 1066/1333/1600MHz for faster communication between components. Based on the application of Mobile Intel® QM67 Express chipset, the HR908-B COM Express Compact form factor is designed with high performance and flexible I/O to provide increased mobile computing and graphics performance, including High Definition Audio interface, 4-bit input and 4-bit output GPIO connector for device controls, 1 Intel® Gigabit LAN controller integrated up to 1GB transceiver in order to increase transmission speed for network-intensive applications, 1 I2C interface, 1 SMBus interface. The Advanced Host Controller Interface (AHCI) controller integrated into the HR908-B mobile platform supports 4 Serial ATA interfaces: 2 Serial ATA 3.0 ports with speed rate up to 6Gb/s and 2 Serial ATA 2.0 ports with speed rate up to 3Gb/s for RAID 0/1/5/10. With 8 USB 2.0 interfaces, this new mobile platform allows your system to process more data load and provides faster loading of frequently used applications. In addition, the HR908-B form factor also supports multiple PCIe expansion configurations to offer additional capabilities for customers' various demands. 1 PCIe x16 interface, and 1 PCIe x4 and 3 PCIe x1 interfaces (default); or 7 PCIe x1 interfaces are available for high performance graphics displays. The HR908-B mobile platform keeps steady for various environments when operating at the temperature range from 0°C to 60°C and the humidity range from 10% to 90%. The HR908-B, a new COM Express Compact form factor combined with these features as described above, is an ideal product for a whole range of applications which require a stable revision-controlled platform, such as industrial control automation, digital signage, medical equipment, and KIOSK embedded applications.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

System   Processor BGA 1023 packaging technology– 3rd Generation Intel® Core™ processors (22nm process technology)Intel® Core™ i7-3615QE (6M Cache, up to 3.3 GHz); 45WIntel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35WIntel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W– 2nd Generation Intel® Core™ processors (32nm process technology)Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45WIntel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35WIntel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35WIntel® Celeron® B810 (2M Cache, 1.6 GHz); 35W Chipset Intel® QM67 Chipset Memory One 204-pin SODIMM up to 8GBSingle Channel DDR3L 1600MHz BIOS UEFI SPI 64Mbit   Graphics   Controller Intel® HD Graphics 4000 (3rd generation processors)Intel® HD Graphics 3000 (2nd generation processors)Intel® HD Graphics (Intel® Celeron™ processors) Feature DirectX Video Acceleration (DXVA) for accelerating video processing– Full AVC/VC1/MPEG2 HW DecodeSupports DirectX 11/10.1/10/9 and OpenGL 3.0 (3rd generation processors)Supports DirectX 10.1/10/9 and OpenGL 3.0 (2nd generation processors) Display 1 x VGA1 x LVDS3 x DDI (HDMI/DVI/DP)VGA: resolution up to 1920×1200 @ 60HzLVDS: dual channel 36/48-bit, resolution up to 1920×1200 @ 60HzHDMI/DVI/DP: resolution up to 1920×1200 @ 60Hz   Expansion   Interface 1 x PCIe x16 (Gen 3)1 x PCIe x4 and 3 PCIe x1 or 7 PCIe x11 x LPC1 x I2C1 x SMBus2 x Serial (TX/RX)   Audio   Interface HD Audio   Ethernet   Controller 1 x Intel® 82579LM (10/100/1000Mbps)   I/O   USB 8 x USB 2.0 SATA 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/102 x SATA 2.0 (up to 3Gb/s) GPIO 1 x 8-bit GPIO   Watchdog Timer   Output & Interval System Reset, Programmable via Software from 1 to 255 Seconds   Power   Type 12V, 5VSB, VCC_RTC (ATX mode)12V, VCC_RTC (AT mode) Consumption TBD   OS Support   OS Support Windows XP Professional x86 & SP3 (32-bit)Windows XP Professional x64 & SP2 (64-bit)Windows 7 Ultimate x86 & SP1 (32-bit)Windows 7 Ultimate x64 & SP1 (64-bit)Windows 8 Enterprise x86 (32-bit)Windows 8 Enterprise x64 (64-bit)   Environment   Temperature Operating: 0 to 60°CStorage: -20 to 85°C Humidity Operating: 10 to 90% RHStorage: 10 to 90% RH MTBF TBD   Mechanism   Dimensions COM Express® Compact 95mm (3.74″) x 95mm (3.74″) Compliance PICMG COM Express® R2.1, Type 6   Standards and Certifications   Certifications CE, FCC Class B, RoHS   Packing List   Packing List 1 HR908 board
