DFI EC800-AL Intel Atom E3900 Compact Fanless Embedded System w/ M.2 & Mini PCIe

EC800-AL

  • Brand: DFI
  • Intel Atom E3900 Series CPU options
  • Supports triple independent displays
  • Wide operating temperature
  • Size: 161mm (W) x 35.1mm (H) x 108.2mm (D)
-
+

Details

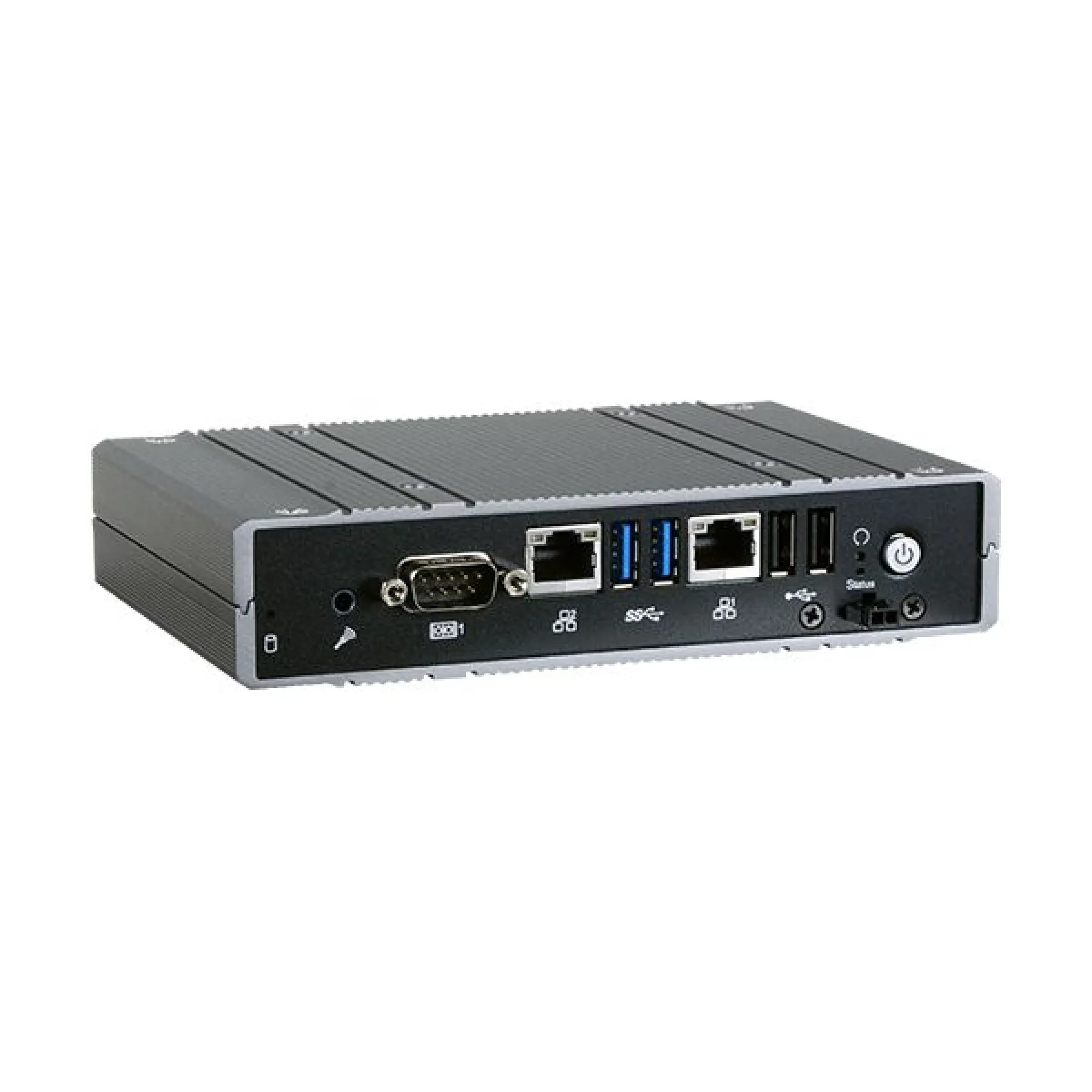

The EC800-AL from DFI is a compact fanless embedded PC powered by a range of Quad Core and Dual Core processors from the Intel E3900 Series. It is a powerful and rugged system, designed to succeed the EC700-BT for audio visual and automation applications in demanding environments.

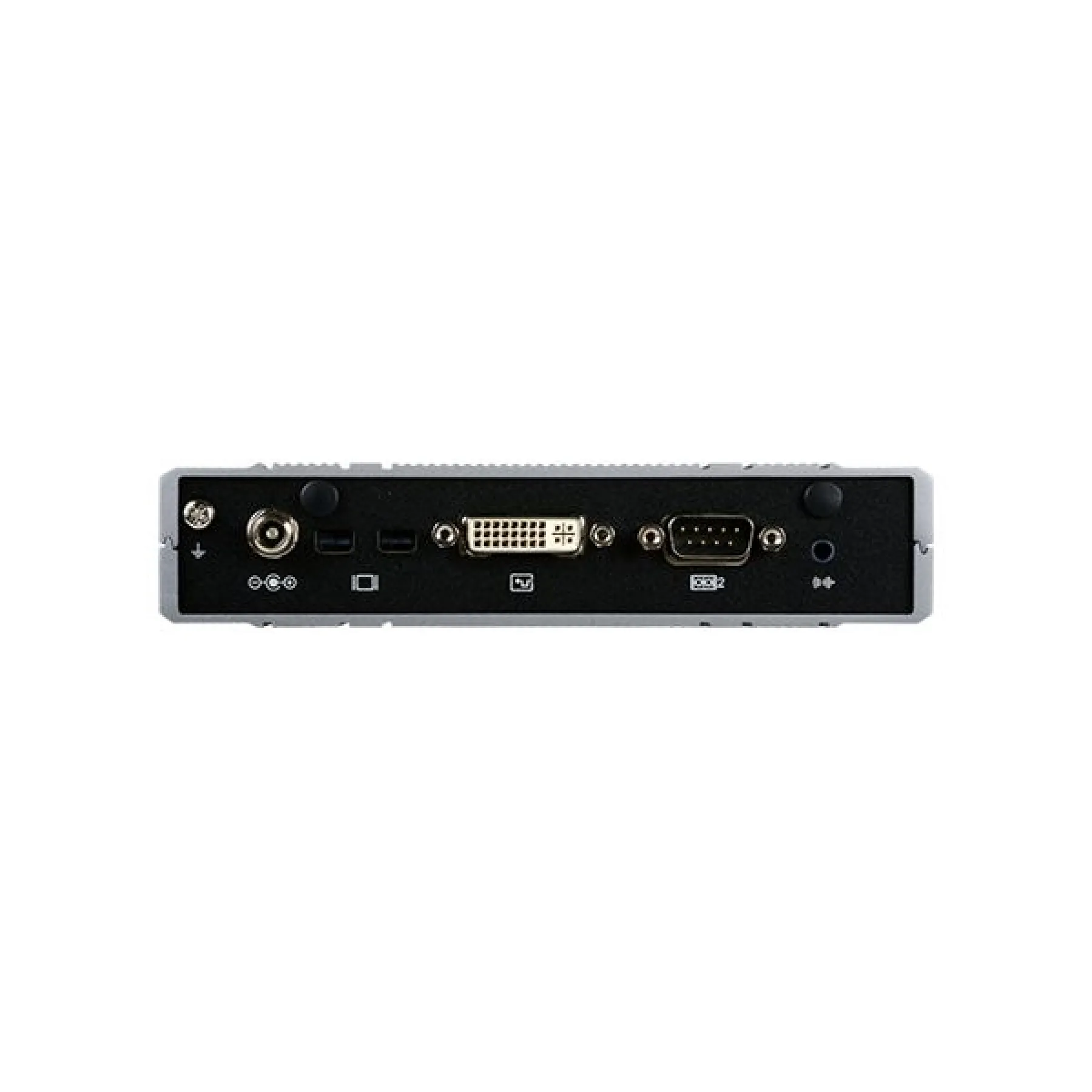

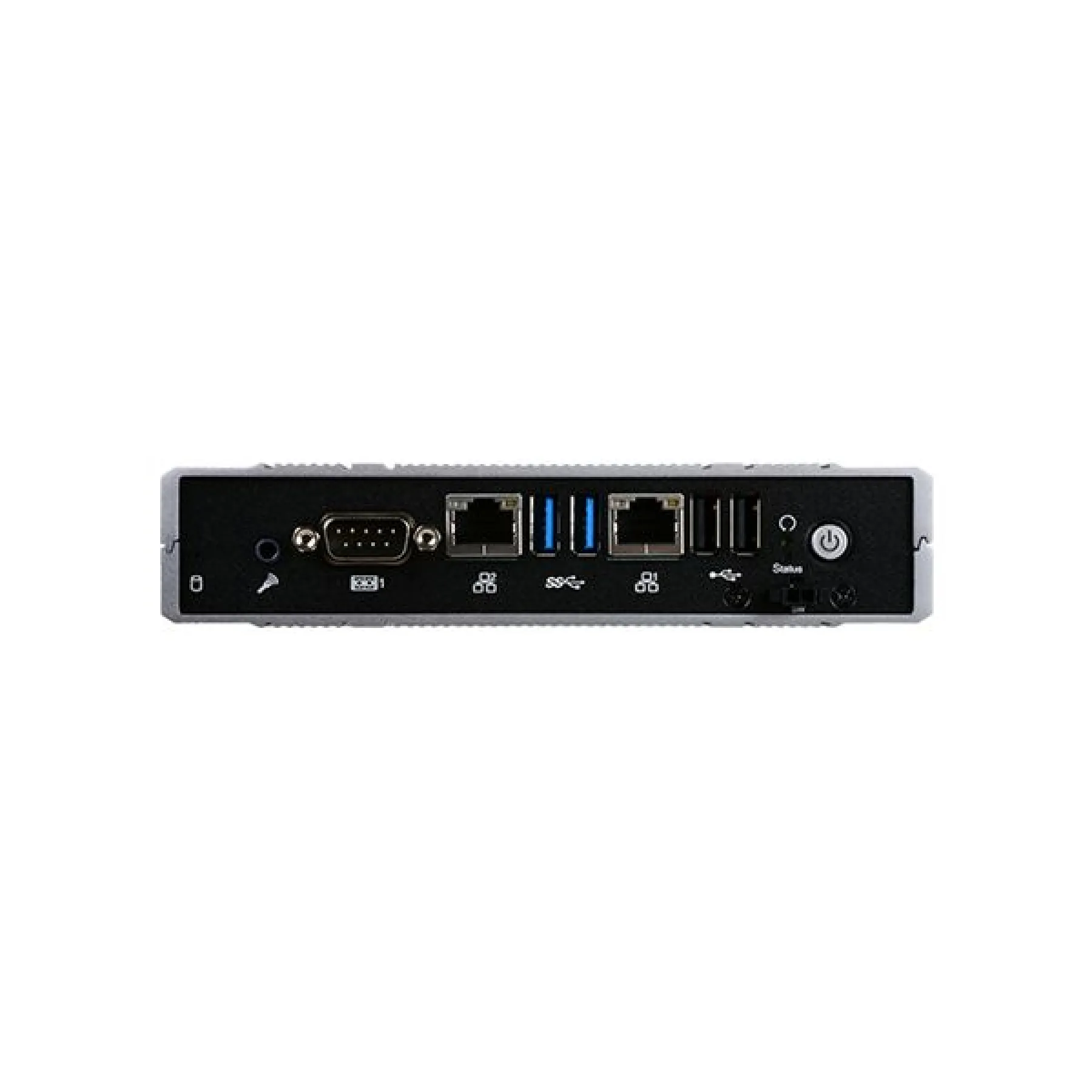

The EC800-AL features support for 3 x independent displays via 1 x VGA/DVI-D and 2 x Mini-DP/Micro-HDMI. Other I/O includes 2 x GbE LAN, 2 x RS-232/422/485, 2 x USB 3.0 and 2 x USB 2.0. Expansion is via 1 x full-size Mini PCIe, 1 x M.2 (PCIe/USB/SATA) and 1 x M.2 (PCIe/USB).

This system has a wide operating temperature ranging to and from -40° and 70°C depending on CPU and a wide power input between 9~36V. With 3G shock resistance, aluminium extrusion and VESA/Wall/DIN mounting, the EC800-AL is built to fit your needs in harsh automation environments.

Ordering Info

  • EC800-AL552CPD-E3950-4 – 750-EC8002-000G Fanless, Intel Atom E3950, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
  • EC800-AL552CHV-E3950-4 – 750-EC8002-100G Fanless, Intel Atom E3950, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
  • EC800-AL552TPD-E3950-8 – 750-EC8002-200G Fanless, Intel Atom E3950, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -40 to 60°C (wide-temp), RoHS
  • EC800-AL552THV-E3950-8 – 750-EC8002-300G Fanless, Intel Atom E3950, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 8GB LPDDR4 onboard, -40 to 60°C (wide-temp), RoHS
  • EC800-AL552CPD-N4200-4 – 750-EC8002-400G Fanless, Intel Pentium N4200, 2 Mini-DP, 1 DVI-D, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -20 to 60°C, RoHS
  • EC800-AL552THV-E3930-4 – 750-EC8002-500G Fanless, Intel Atom E3930, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 4GB LPDDR4 onboard, -40 to 70°C (wide-temp), RoHS
  • EC800-AL552THV-E3930-2 – 750-EC8002-600G Fanless, Intel Atom E3930, 2 Micro-HDMI, 1 VGA, 2 LAN, 2 COM, 4 USB, 2GB LPDDR4 onboard, -20 to 60°C, RoHS

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

  • CPU Intel Atom x7-E3950, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W
  • CPU: Intel Atom x5-E3940, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9W
  • CPU Intel Atom x5-E3930, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6W
  • CPU Intel Pentium N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W
  • Memory: 2GB/4GB/8GB Memory Down
  • Graphics: Intel integrated
  • Serial: 2 x RS-232/422/485
  • USB: 2 x USB 3.0, 2 x USB 2.0
  • Ethernet: 2 x 10/100/1000 Gigabit LAN
  • Expansion: 1 x Mini PCIe, 2 x M.2
  • Operating Temperature: E3950, N4200: -20 to 60°C (standard), -40 to 60°C (wide-temp)E3940, E3930: -20 to 60°C (standard), -40 to 70°C (wide-temp)
  • Video: 1 x VGA/DVI-D, 2 x Mini-DP/Micro-HDMI
  • Audio: Realtek ALC262, 1 x mic-in
  • Power: 9~36V DC input voltage
