SIO-215-J1900

Name: C&amp;T Solution SIO-215-J1900 15" Intel Celeron J1900 XGA Resistive / Capacitive Touch Stainless Steel Panel PC
SKU: SIO-215-J1900
Availability: InStock

C&T Solution

C&T Solution SIO-215-J1900 15″ Intel Celeron J1900 XGA Resistive / Capacitive Touch Stainless Steel Panel PC

SIO-215-J1900

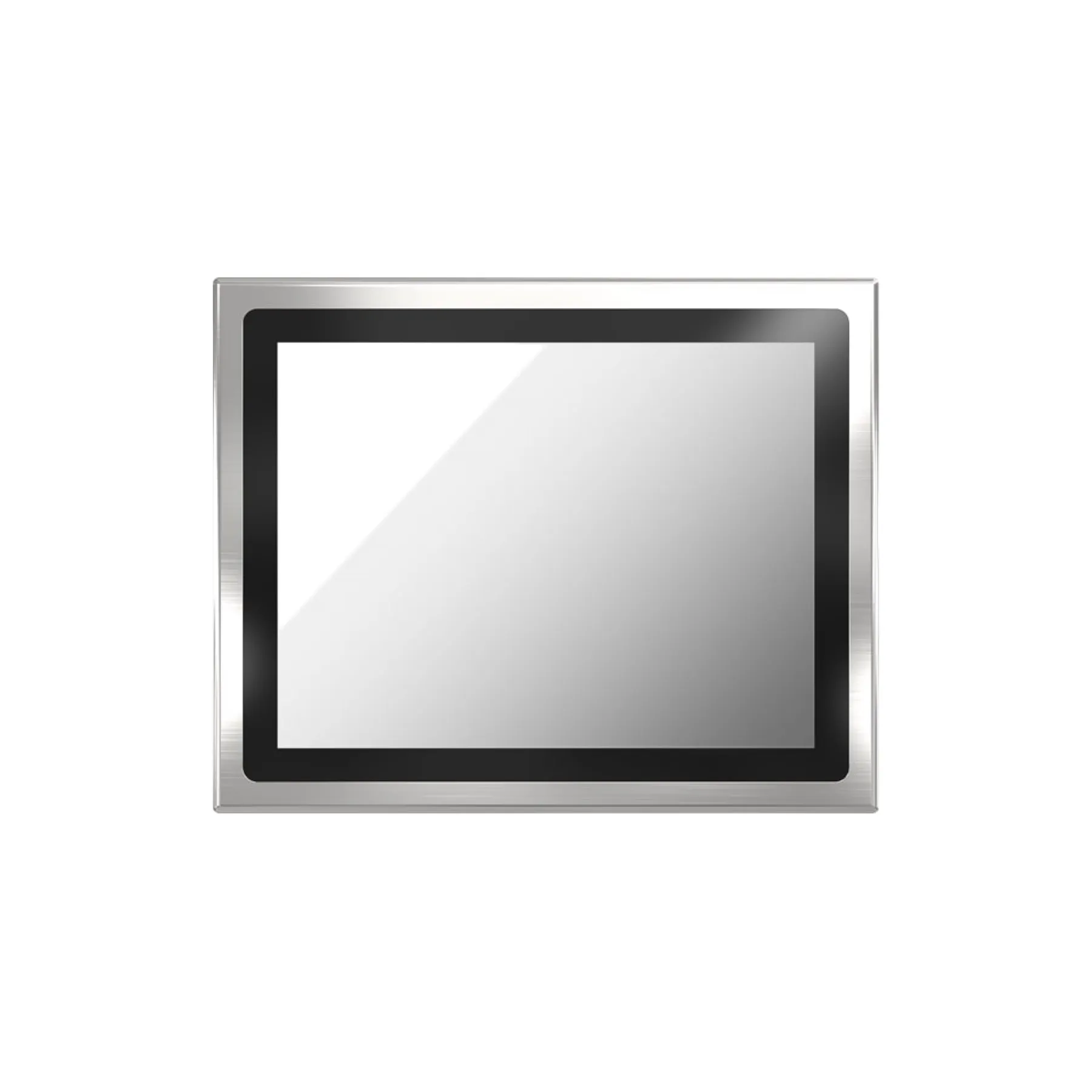

15” TFT XGA 4:3 LCD with resistive 5-wire / projected capacitive touch
Intel Celeron processor J1900, 2.0 GHz
1x 4GB DDR3L SODIMM, 1x 64GB mSATA

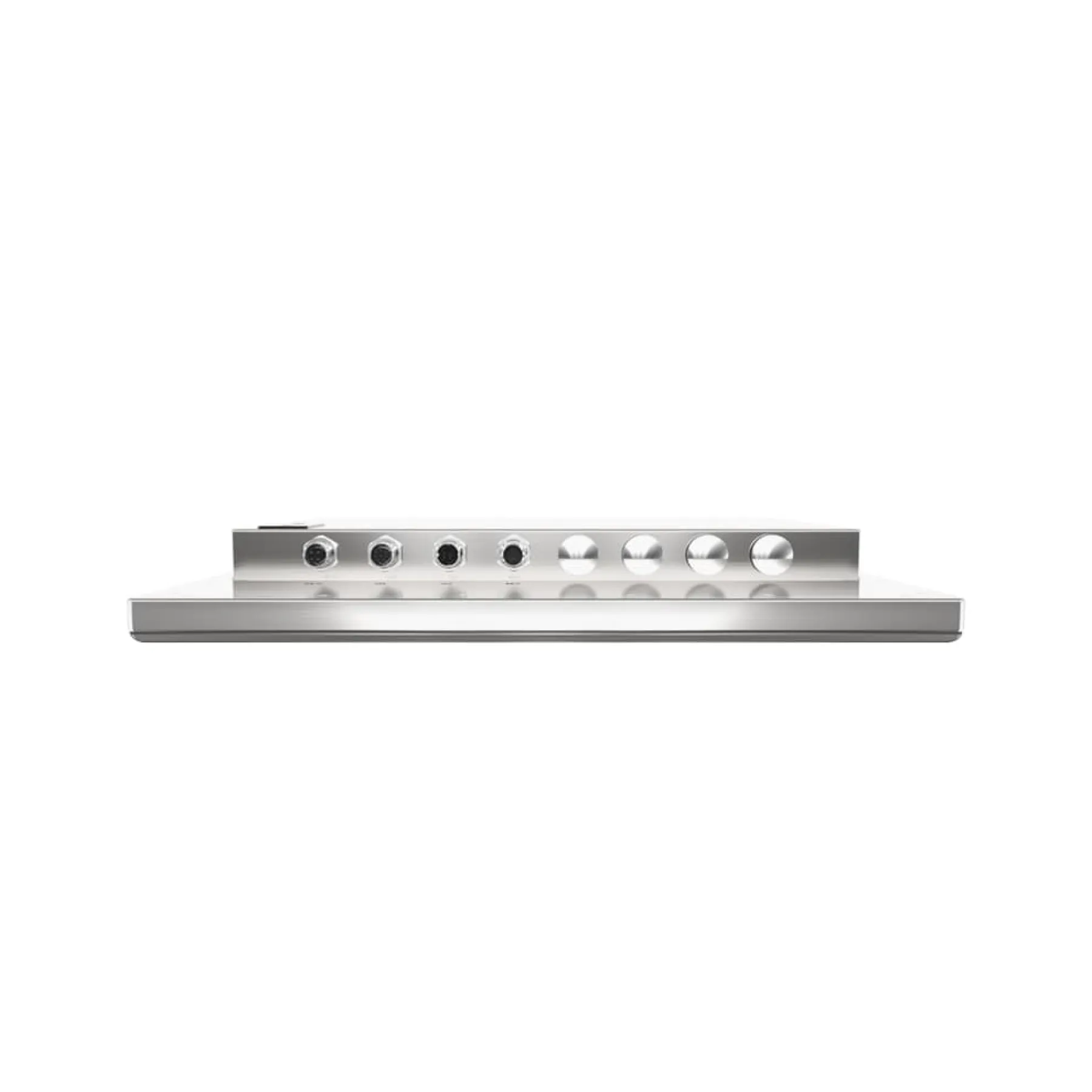

1x M12 for 2x USB 2.0, 1x M12 for LAN, 1x M12 for COM
1x Full-size Mini PCIe for expansion
Support 110V to 240V AC power input by M12 Power Connector
-20°C to 55°C operating temperature
Full system IP66/IP69K with Stainless Steel SUS316 construction

Product Code: SIO-215-J1900

Categories: C&T Solution, High Brightness Panel PCs, Industrial Touchscreen Computers, IP66 Panel PCs, IP69K Panel PCs, Panel Mount Panel PCs, Stainless Steel Panel PCs

Range: C&T Solution

Details

The SIO series full system IP66/IP69K waterproof stainless steel Panel PC is Intel Celeron Processor J1900, Quad Core, 2MB Cache, 2.0 GHz. Featuring with a certified IP66 waterproof and dustproof stainless steel enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water. It's wide operating temperature of -20°C to 60°C. Its IP69K protection makes the new monitor also suited for washdown applications like high-pressure cleaning.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Datasheet (SIO-215-J1900) (PDF)

0.34MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Touch Technology	Projected Capacitive, Resistive
Ingress Protection	IP66, IP69K
Stainless Steel	Yes
Brightness	1000nit, 300nit, High, Standard
Resolution	1024x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 4GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	1 Port, 2 Ports, 2 Ports, RS-232/422/485
USB Ports	2 Ports, 2 Ports, 4 Ports, 4 Ports, USB 2.0
Ethernet Ports (LAN)	2 Ports, 2 Ports, 3 Ports, 3 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Storage Type	1, mSATA
Expansion Type	1, Any Expansion Type, Mini PCI Express
Input Voltage	110-240 VAC, 12 VDC, ATX Powered, Yes
Mounting Options	Panel-mount, VESA-mount, Yoke-mount
Operating Temperature	-20°C to 55°C, -20°C to 60°C, Wide
Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10, up to Windows 10 IoT, Windows 10 Pro
