SIO-212C-J1900

C&T Solution SIO-212C-J1900 12.1″ Waterproof PCAP Touch Stainless Steel Panel PC

SIO-212C-J1900

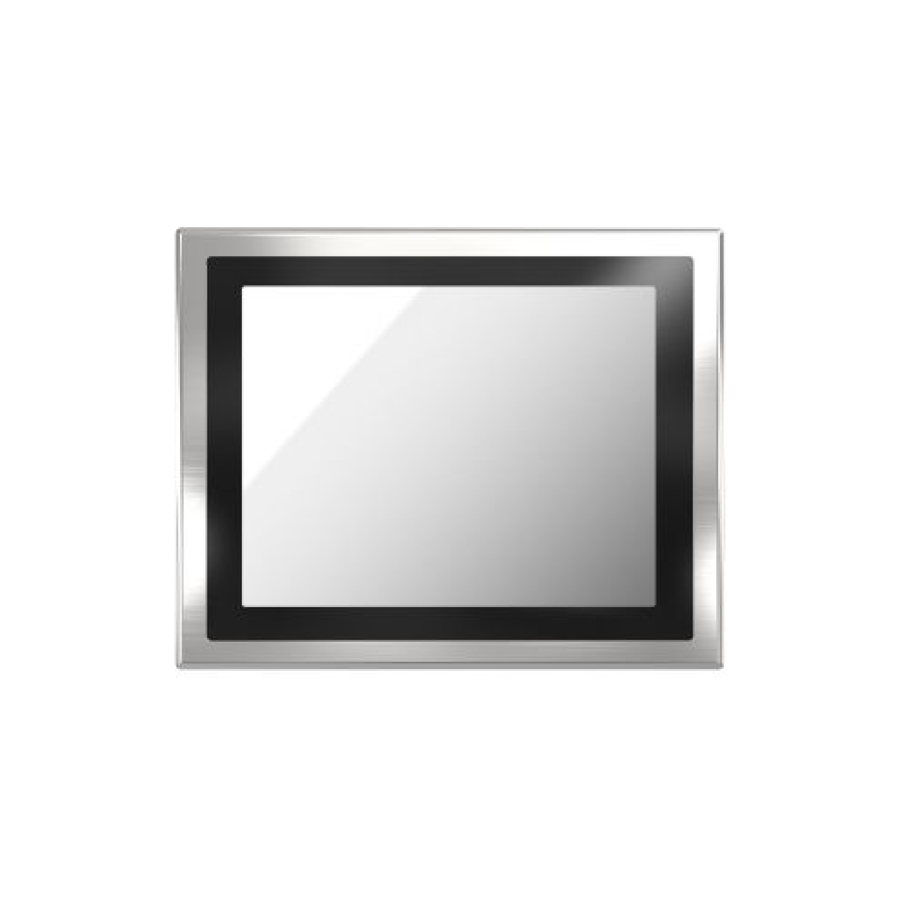

  • 12.1” TFT XGA 4:3 LCD with projected capacitive touch
  • Intel Celeron processor J1900, 2.0 GHz
  • 1x 4GB DDR3L SODIMM, 1x 64GB mSATA

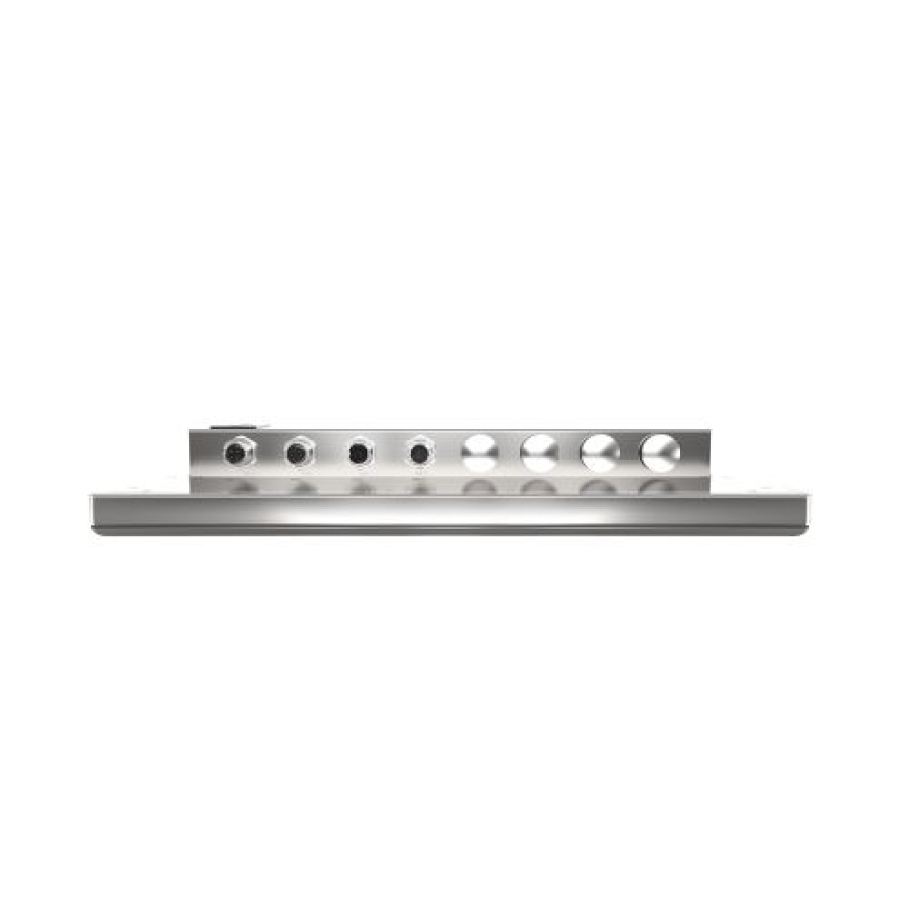

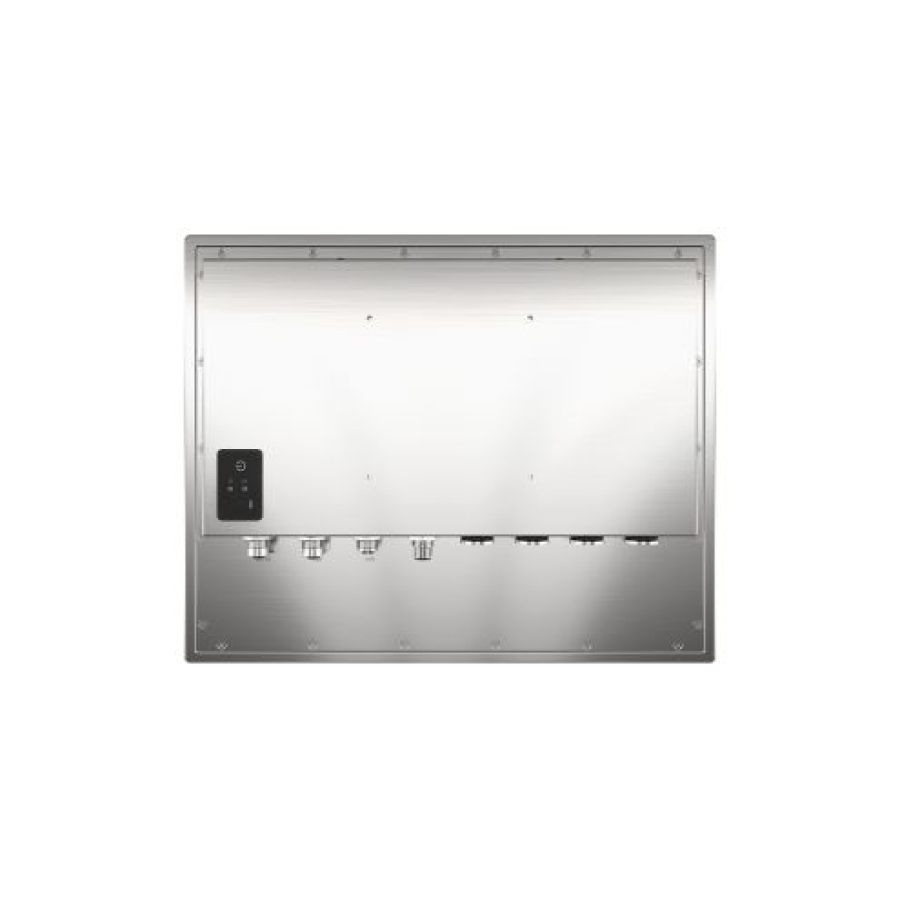

  • 1x M12 for 2x USB 2.0, 1x M12 for LAN, 1x M12 for COM
  • 1x Full-size Mini PCIe for expansion
  • Support 110V to 240V AC power input by M12 Power Connector
  • -20°C to 55°C operating temperature
  • Full system IP66/IP69K with Stainless Steel SUS316 construction
-
+

Details

The C&T Solution SIO-212C-J1900 is a 12.1" full IP66/IP69K waterproof stainless steel Panel PC powered by Intel Celeron Processor J1900, Quad Core, 2MB Cache, 2.0GHz. Featuring with a certified IP66 waterproof and dustproof stainless steel enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water alongside Its IP69K protection makes the new monitor also suited for washdown applications like high-pressure cleaning. Additionally, the SIO-212R-J1900 has the option for a high bright screen of 1000nits for outdoor/ sun readable applications.

Ordering Info

SIO-212C-J1900 12.1″ XGA Resistive Touch Stainless Steel Panel PC with Intel Celeron Processor J1900
SIO-212HC-J1900 12.1″ XGA HB 1000nits Resistive Touch Stainless Steel Panel PC with Intel Celeron Processor J1900

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

LCD Size 12.1″ (4:3)
Max. Resolution 1024 x 768 (XGA)
Brightness (cd/m2) 600 / 1000 (Optional)
Contrast Ratio 1,000:1
LCD Color 16.2M
Pixel Pitch (mm) 0.24 (H) x 0.24 (V)
Viewing Angle (H-V) 178 / 178
Backlight MTBF 50000 hrs (LED Backlight)
Touch Type Resistive 5-wire Touch
Processor Intel Celeron Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
System Chipset SoC integrated
LAN Chipset GbE1: Intel I210-IT (Support Wake-on-LAN and PXE) GbE2: Intel I210-IT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC886
System Memory 4GB DDR3L SODIMM
BIOS AMI uEFI 8Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
mSATA 64GB mSATA SSD
SIM Socket 1x Internal SIM socket
Mini PCI Express 1x Full-size Mini PCIe
COM 1x RS-232/422/485 by M12 A-Code 8-pin
USB 2x USB 2.0 by M12 A-code 8-pin
LAN 1x LAN by M12 X-Code 8-pin
Others 1x Additional RS-232/422/485 by M12 A-Code 8-pin 2x Additional USB 2.0 by M12 A-code 8-pin 1x Additional LAN by M12 X-Code 8-pin 2x WiFi Antenna
OSD Power On/Off, Reset
Windows Windows 10
Linux Linux kernel 3.X
Power Mode ATX
Power Supply Voltage 110 ~ 240V AC Input, Optional 12V DC Input
Power Connector M12 A-code 4-pin
Power Adaptor Optional AC/DC 12V/5A, 60W. Optional Waterproof Power Input Cable
Operating Temp. -20°C to 55°C optional wide Temp. -20°C to 60°C
Storage Temp. -20°C to 70°C
Relative Humidity 10% to 80% (non-condensing)
Vibration With SSD: 2.4 Grms, 5 – 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 – 500 Hz, 0.5 hr/axis
Shock With SSD: 20G, half sine, 11ms
IP Level Full System IP66/IP69K
Standards / Certification CE, FCC Class A
Front Panel Construction Stainless Steel SUS316
Dimension 350 (W) x 285 (H) x 49.5  (D) mm
Weight 5.03Kg
Mounting VESA Mounting Holes 100 x 100mm Optional Yoke Mount, Panel Mount
Touch Technology Projected Capacitive, Resistive
Ingress Protection IP66, IP69K
Stainless Steel Yes
Brightness 1000nit, 600nit, High, Standard
Resolution 1024x768, Special/Other
GPU Integrated GPU
Memory Capacity Up to 4GB
Serial Ports (COM) 1 Port, RS-232/422/485
USB Ports 2 Ports, 2 Ports, USB 2.0
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Storage Type 1, mSATA
Expansion Type 1, Any Expansion Type, Mini PCI Express
Input Voltage 110-240 VAC, 12 VDC, ATX Powered, Yes
Mounting Options Panel-mount, VESA-mount, Yoke-mount
Operating Temperature -20°C to 55°C, -20°C to 60°C, Wide
Certifications CE/FCC
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
