CV-W115/P1201

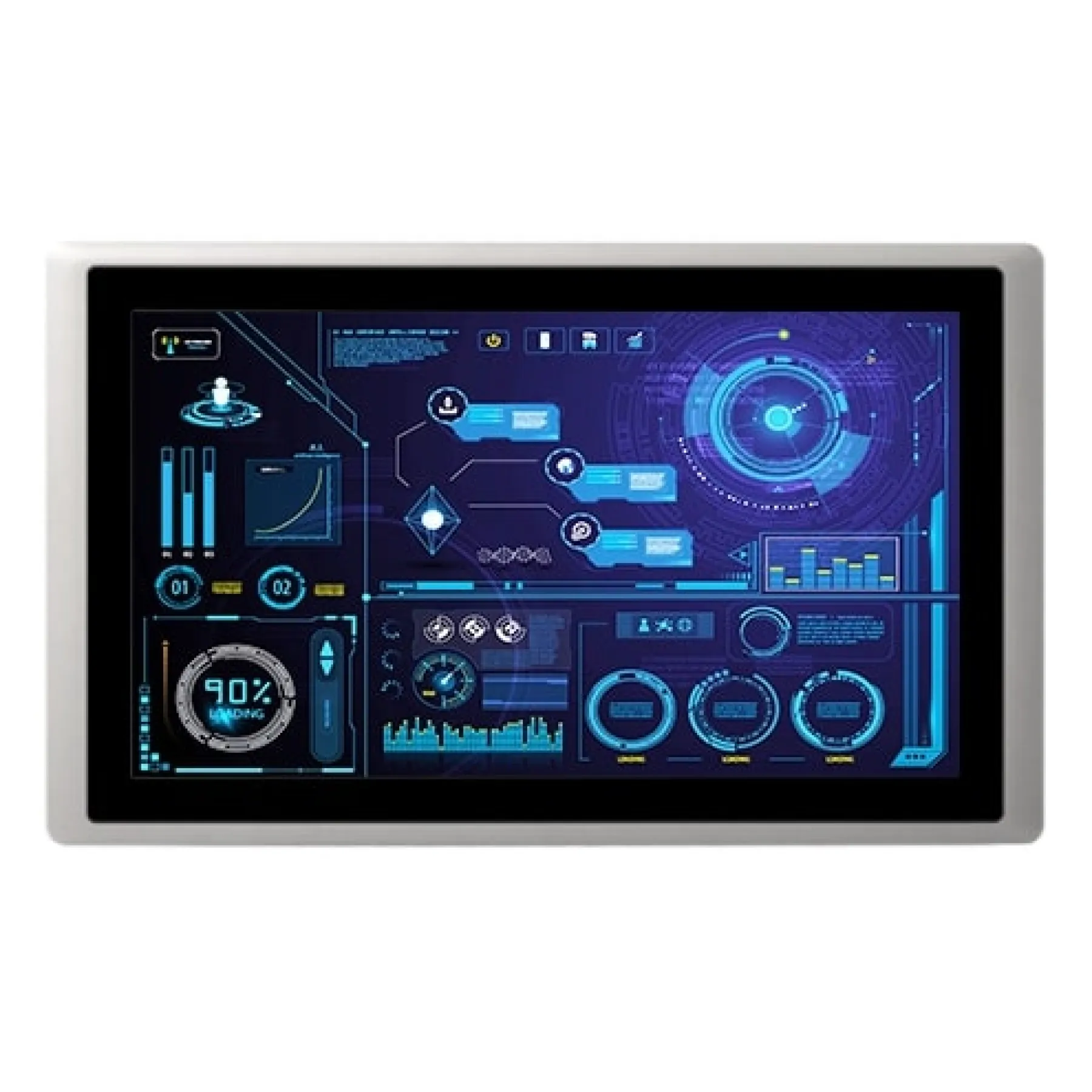

Cincoze CV-W115/P1201 15.6″ 10th Gen Intel Atom TFT-LCD Modular Panel PC

CV-W115/P1201

  • 15.6” TFT-LCD WXGA with Resistive 5-wire / Projected Capacitive Touch
  • Intel Elkhart Lake Atom x6425E/x6211E Processor
  • 1x DDR4 SO-DIMM
  • Designed with Rugged Aluminum Die-casting Front Bezel
  • Support Panel / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Cincoze Patent CDS Technology Support
-
+

Details

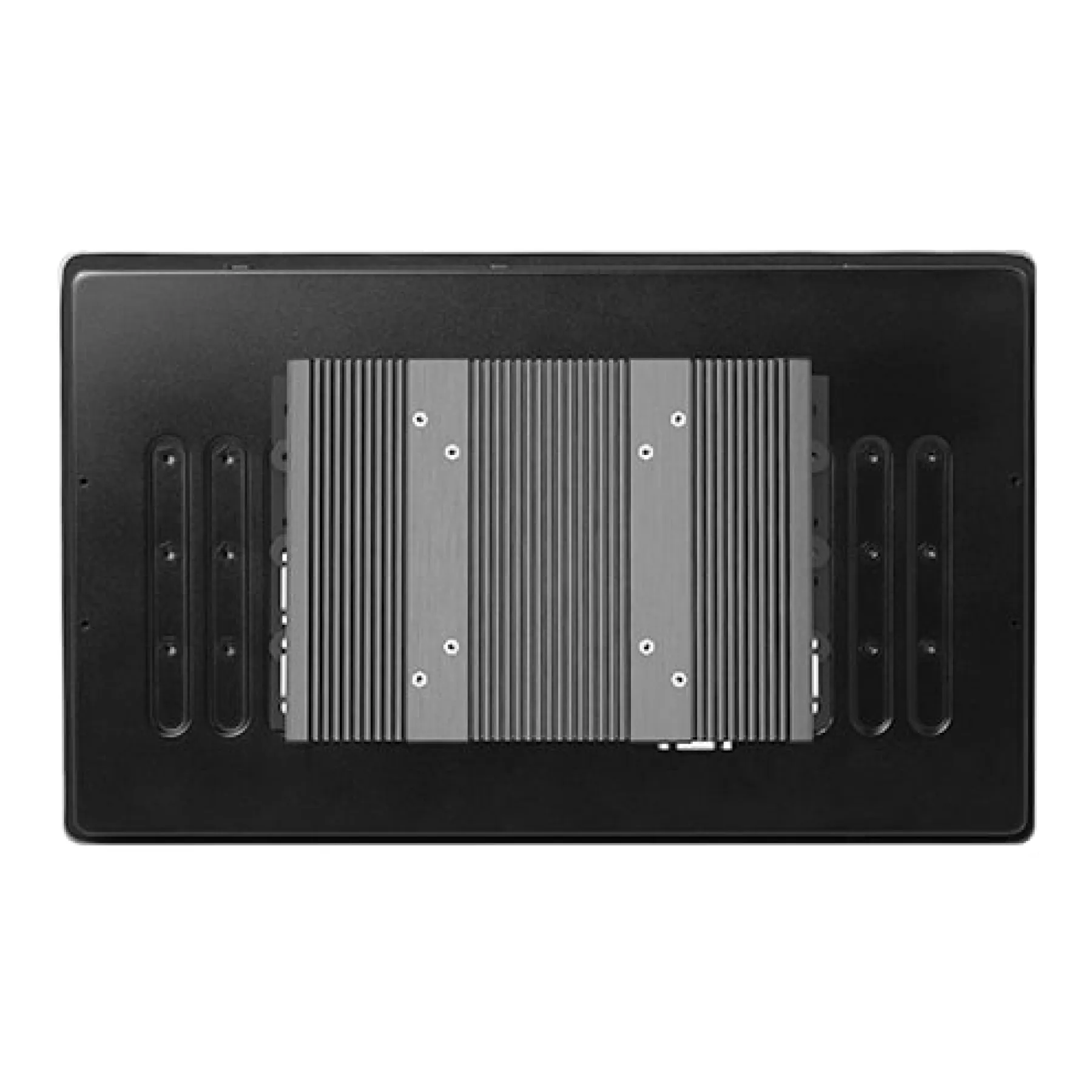

The CV-W115/P1201 series is a modular industrial panel PC with an Intel Atom (Elkhart Lake) processor. Available in a selection of screen sizes, the CV-W115/P1201 has flexible expansion options, including rich native I/O interfaces (GbE LAN, USB 3.2, COM, and DIO), Mini PCIe and M.2 Key E Type 2230 expansion slots, and exclusive CFM expansion to add functions such as PoE and IGN. Cincoze’s exclusive patented Convertible Display System (CDS) technology enables further flexible future computer performance upgrades and screen replacements. The robust CV-100/P1201 series is well suited for equipment HMI and production process visualization applications. The CV-W115/P1201 supports up to an Intel Atom x6425E (Elkhart Lake) 4-core processor, with 1.7 times the single-thread performance, 1.5 times the multi-thread performance, and double the graphics performance of the previous-generation Apollo Lake processor. Up to 32 GB of 3200 MHz DDR4 is supported. Convertible Display System (CDS), the patented technology that connects the CV-100 display module to the P1201 embedded computer, has the advantages of easy maintenance in the field and easy future upgrades because the screen size can be changed and performance can be improved by only replacing a single part, rather than the whole system, saving on upgrade costs. The CV-W115/P1201 series has a diverse selection of screen sizes (8.4” to 24”), aspect ratios (4:3, 5:4, 16:9), and touch technologies (multi-point capacitive, single-point resistive) available to suit various application needs. The CV-W115/P1201 series has industrial-grade protections, including wide operating temperature (-20 to 70°C), wide-range DC power input (9 to 48 VDC), and IP65 front panel dust and water resistance, to face harsh and dangerous use environments such as on-site HMI and production process visualization.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Touch Technology Projected Capacitive, Resistive
Ingress Protection IP65
Brightness 400nit, Standard
Resolution 1366x768, Special/Other
GPU Integrated GPU
Memory Capacity Up to 32GB
Cooling Type Fanless, Yes
Serial Ports (COM) 3 Ports, 3 Ports, RS-232/422/485
USB Ports 1 Port, 3 Ports, 4 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN) 2 Ports, 2 Ports
Wireless Cellular, Wi-Fi
Audio Yes
Video Ports 1x VGA, 1 Port, 1x DisplayPort, 3 Ports, CDS
Digital I/O 8 DIO
Storage Type 1, 1, 2, 2.5", mSATA
Expansion Type 1x M.2, 1, 2, Any Expansion Type, M.2, Mini PCI Express
Input Voltage 9-48 VDC, ATX Powered, Yes
Mounting Options DIN-mount, VESA-mount, Wall-mount
Operating Temperature -40°C to 70°C, Extra-Wide
Certifications CE/FCC, UL
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
